12 Camera HD Double Expanding OB Van – Mercedes-Benz Actros 2532
Category: Tag:

This used 12 camera OB van is a 12-metre HD double expanding rigid truck built on a Mercedes-Benz Actros 2532 chassis. It handles up to 12 HD camera chains in 1080i, with 4 EVS positions and 16 workstations spread across four areas. As a result, it is a flexible choice for sports, entertainment and live event production.

12 CAMERA HD DOUBLE EXPANDING OB VAN – Mercedes-Benz Actros 2532
DOUBLE EXPANDING OB VAN DETAILS
  • Chassis: Mercedes-Benz Actros 2532, rigid, 3 axles
  • Size: 12 m L x 2.5 m W x 4 m H – 4.7 m wide with both expanders deployed
  • Weight: 27 tonnes
  • Power: 3-phase 5-pin CEE 63 A – 30 kVA
  • Double expanding rigid body – 16 workstations
  • 4 areas: Production / Vision / Recording / Sound
OB VAN MAXIMUM CAPABILITY
  • Up to 12 HD camera chains
  • Capture format: HD 1080i
  • 4 x EVS positions
  • 17 intercom keypanels
VIDEO
  • Vision mixer: Grass Valley Kayak HD300, 4 M/E
  • Vision mixer panel: Grass Valley Kayenne XL, 3 M/E
  • Second vision mixer panel: on request
  • Router: Grass Valley 192 x 224
  • Control system: VSM
  • Multiviewers & monitors: Axon multiviewers, Sony monitors
AUDIO
  • Audio mixer: Studer Vista 8, 52 faders
  • Monitoring: Dynaudio 5.1
  • Devices: M6000, Spot On, Waves server
COMMUNICATIONS
  • Intercom matrix: RTS Cronus 64 x 64
  • 17 intercom keypanels
  • Wireless intercom: Motorola
AVAILABLE ON REQUEST (NOT INCLUDED)
  • Cameras & lenses: HD, high-speed and wireless
  • Servers: EVS XT3 & XT-VIA, SimplyLive ViBox 8 & 16, Sony PWS-4500
Why choose this used 12 camera OB van?

At the heart of this truck, a Grass Valley Kayak HD300 vision mixer, driven from a Kayenne XL 3 M/E panel, works alongside a Grass Valley 192 x 224 router under VSM control. Axon multiviewers feed the Sony monitor wall. On the audio side, a Studer Vista 8 console with 52 faders and Dynaudio 5.1 monitoring handles the mix, while an RTS Cronus 64 x 64 matrix covers communications. Furthermore, its double expanding body opens to 4.7 m, offering 16 workstations in a compact 12-metre rigid format.

C2S Media supplies, renovates and integrates OB vans and trailers for broadcasters and production companies across Europe, Africa and the Middle East. To compare options, browse our other used OB vehicles, or contact us for a quote. For details on the vision mixer range, visit Grass Valley.

Are you interested?

Would you like to get more information? Contact us quickly via the form below and we will get back to you as soon as possible!

This field is for validation purposes and should be left unchanged.
Name(Required)
Company
Country
Activity

Section Break

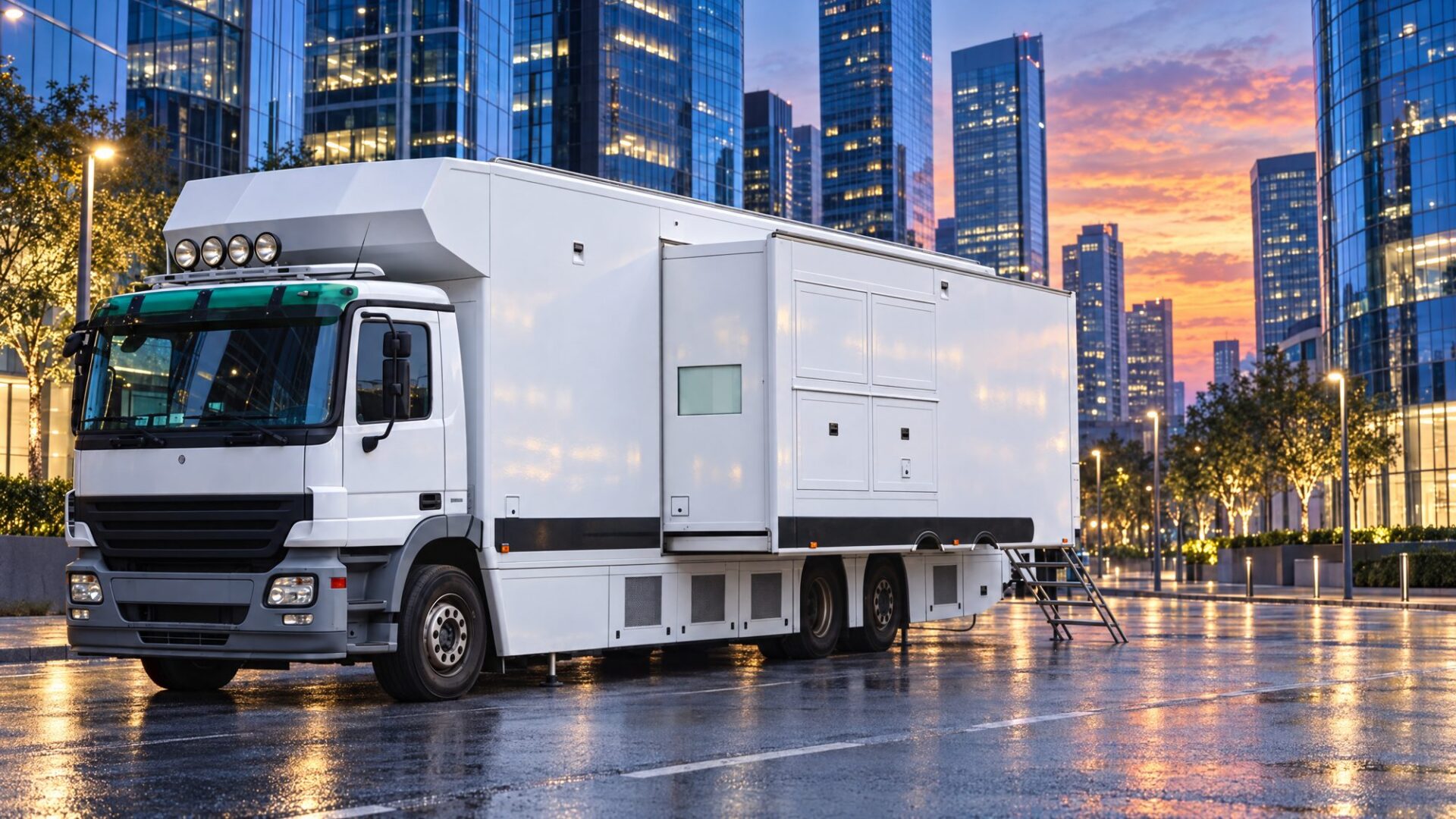

Used 12 camera HD double expanding OB van on Mercedes-Benz Actros 2532 (illustrative render)

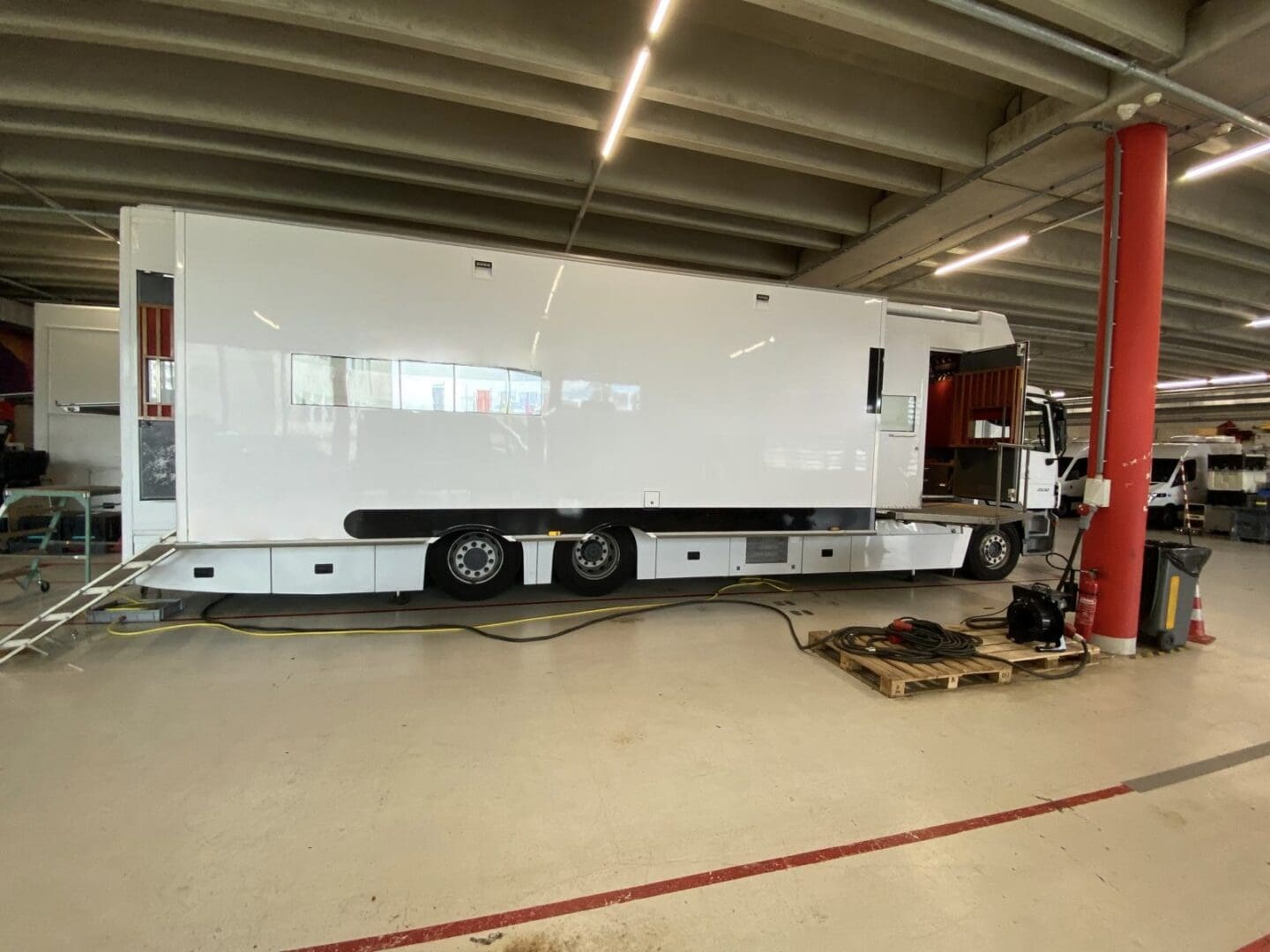

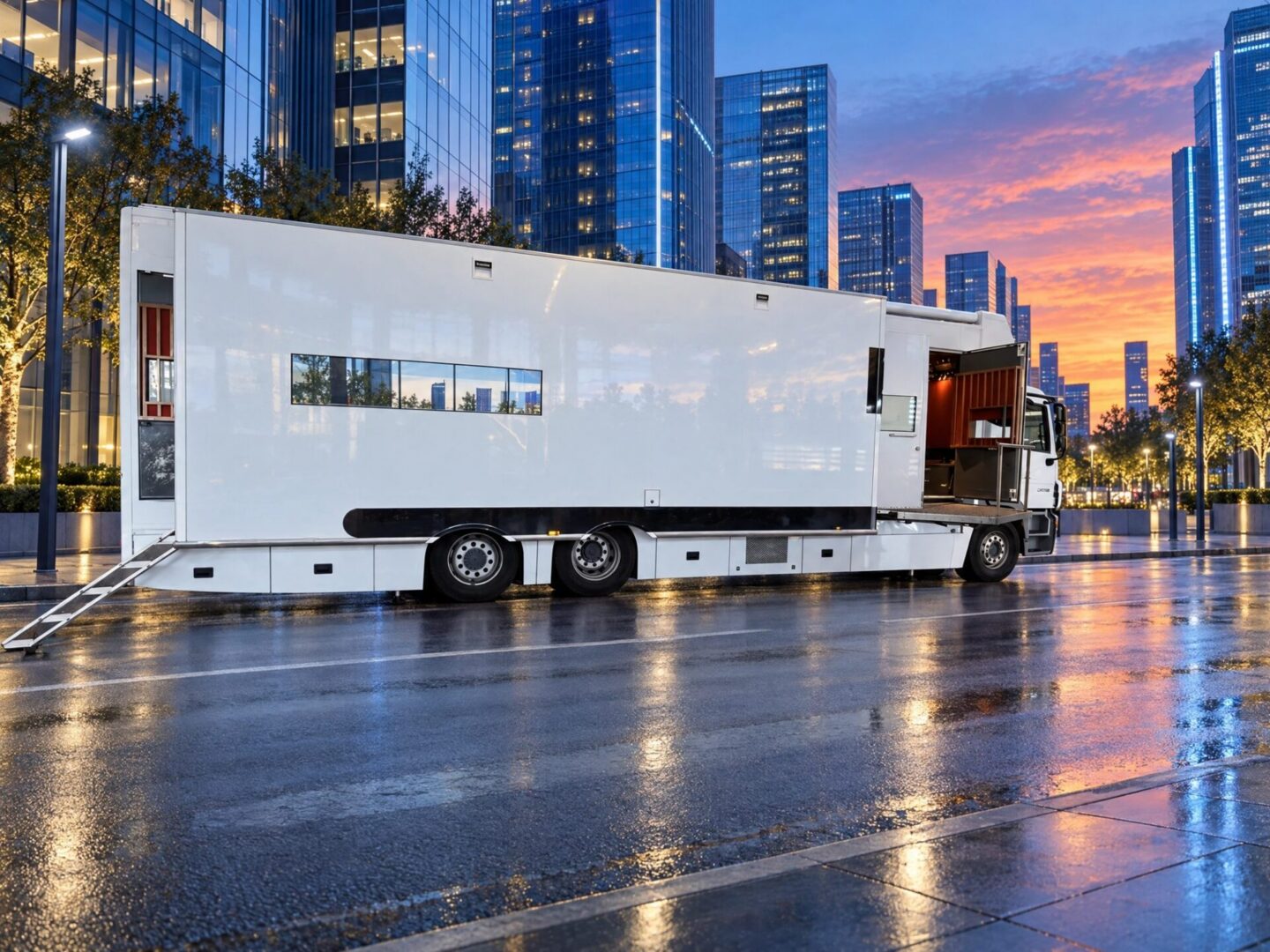

Side view of used 12 camera HD OB van with expander and rear steps (illustrative render)
Mobile production truck parked indoors with steps.

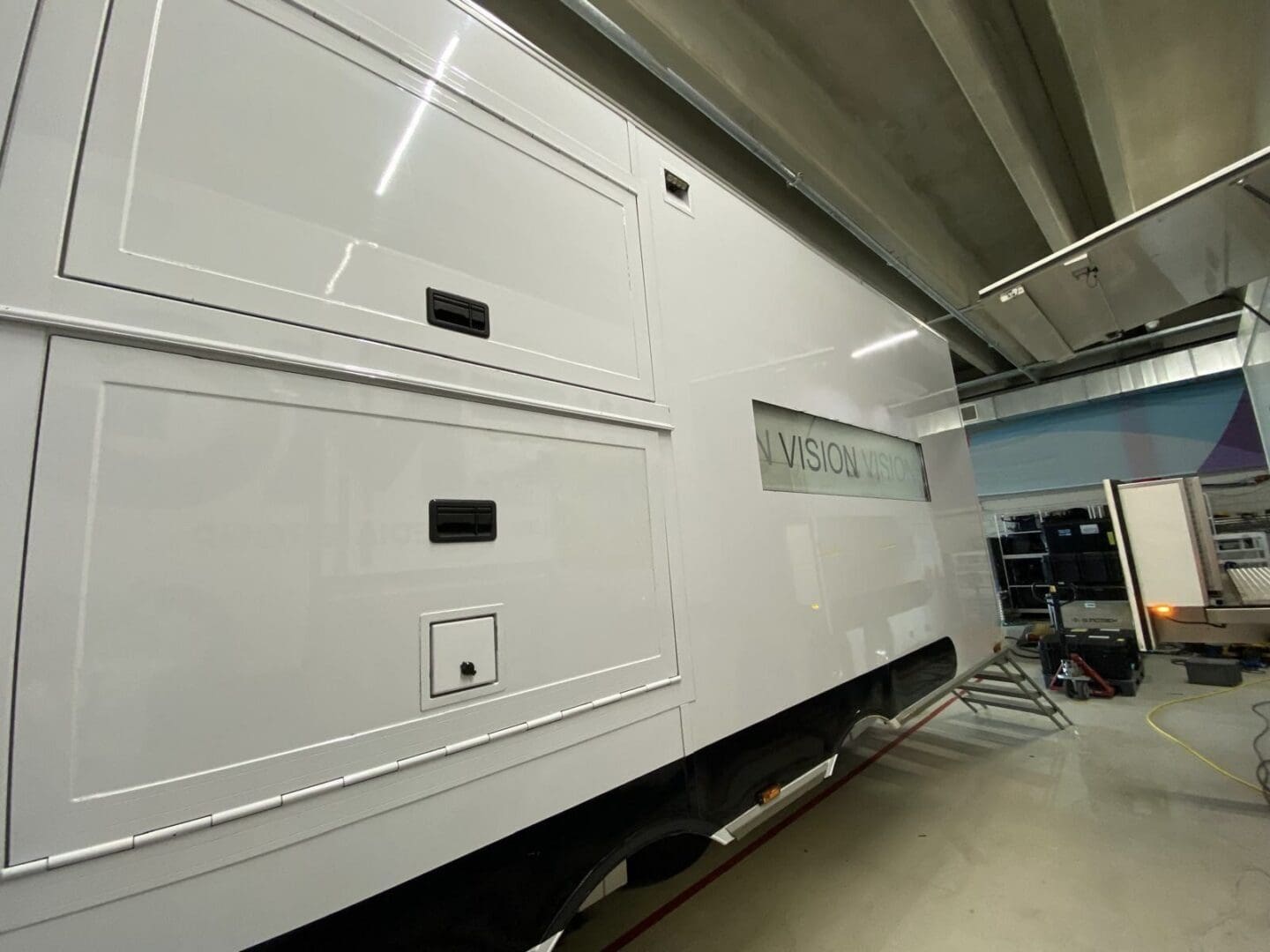

Side storage lockers of the used 12 camera OB van body

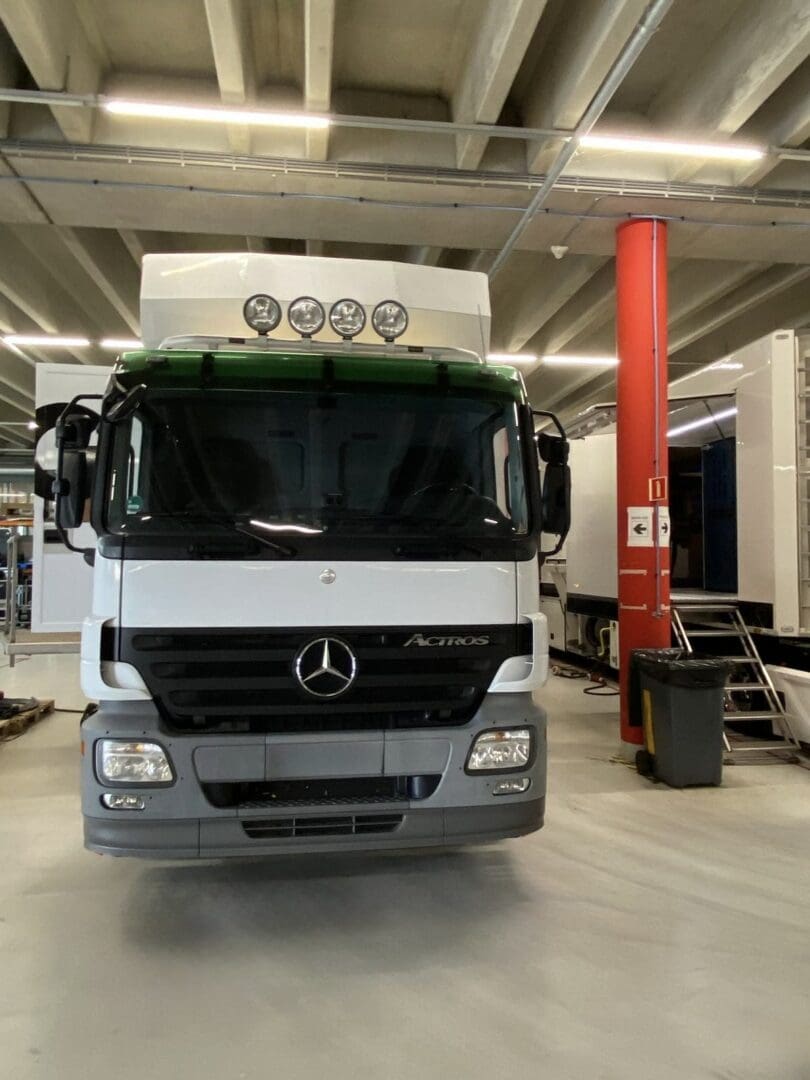

Front of the Mercedes-Benz Actros 2532 OB van cab with roof light bar

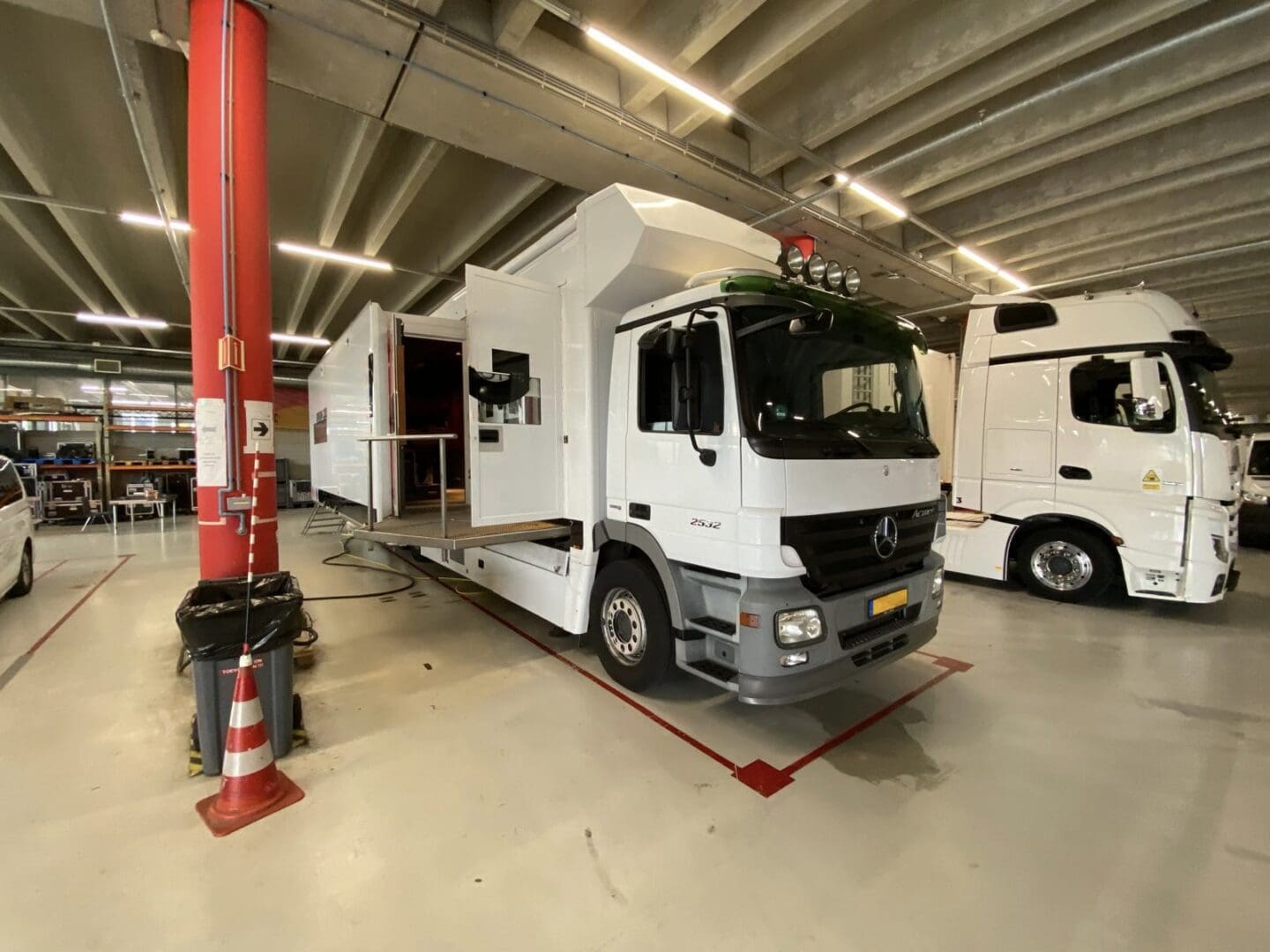

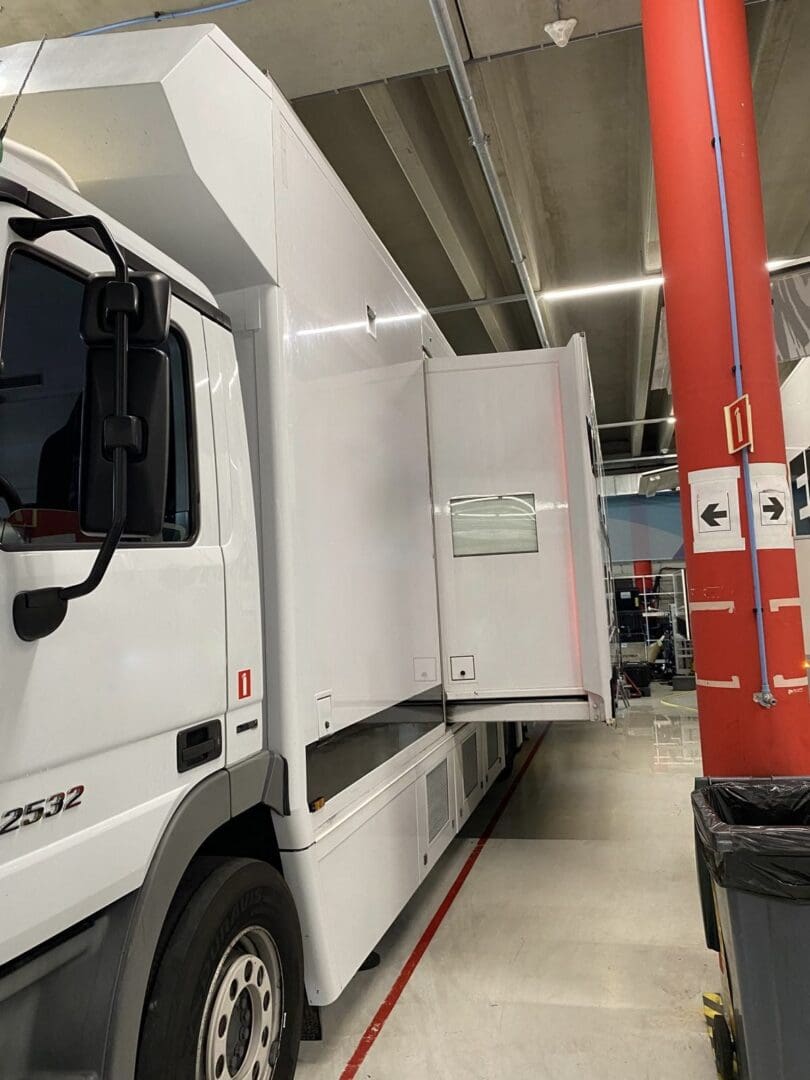

Mercedes-Benz Actros 2532 OB van with side expander deployed
Mobile production truck parked indoors with lights.
Mobile production truck parked in a facility.

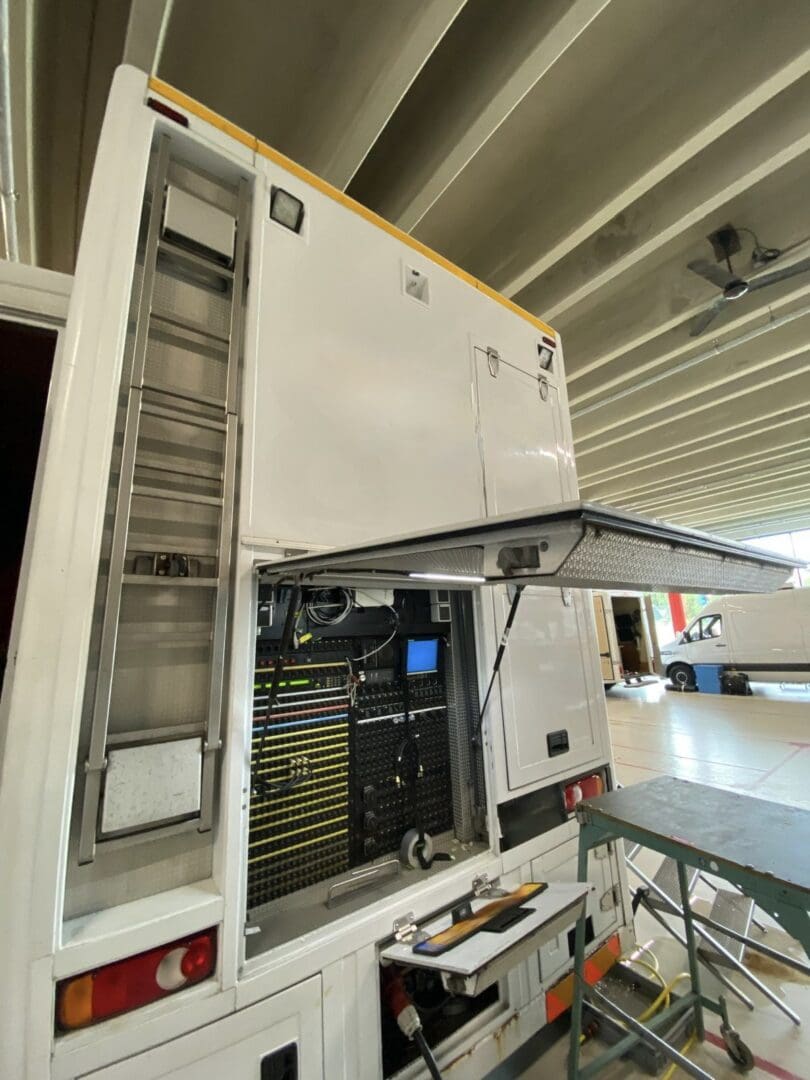

Mobile production truck with equipment access open.

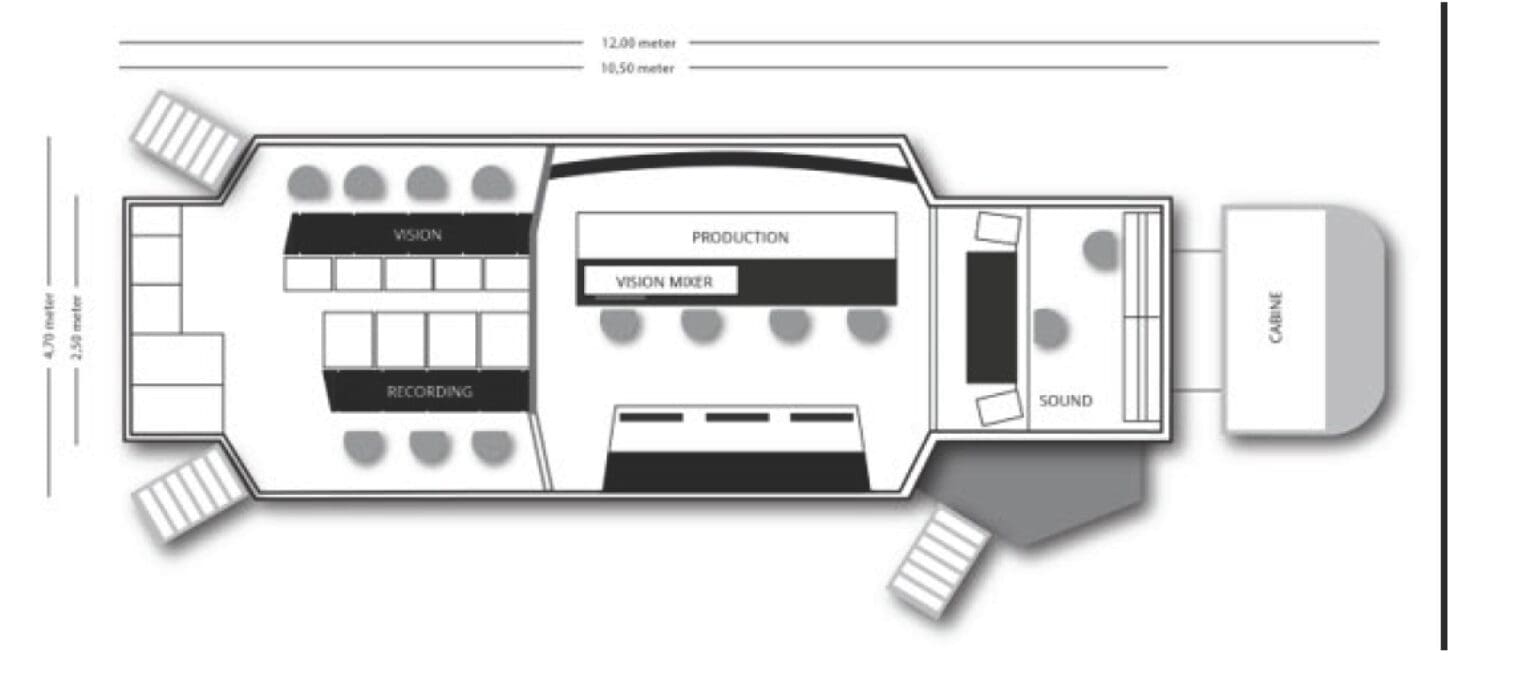

Floor plan of the 12 m double expanding OB van: vision, recording, production and sound areas

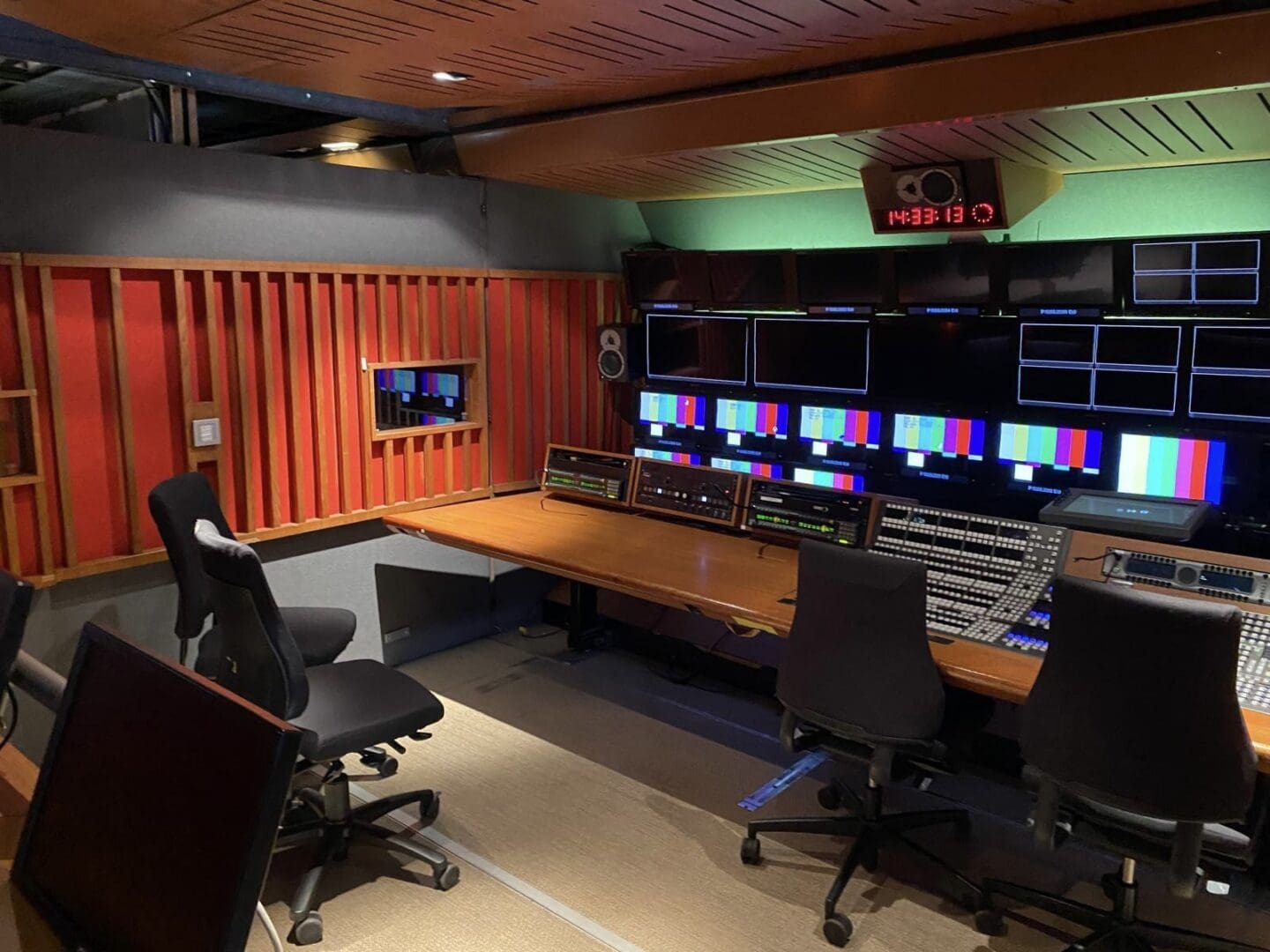

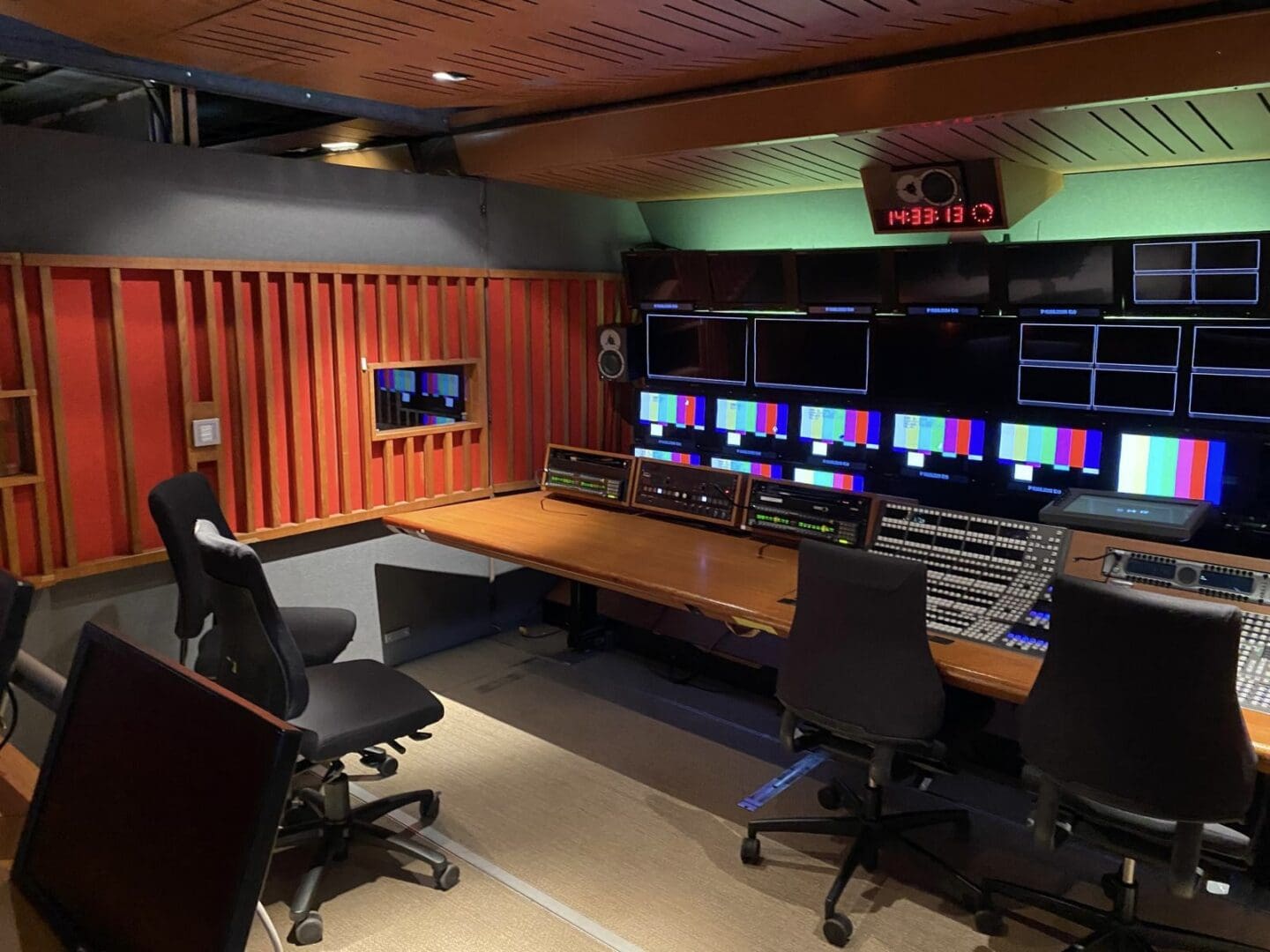

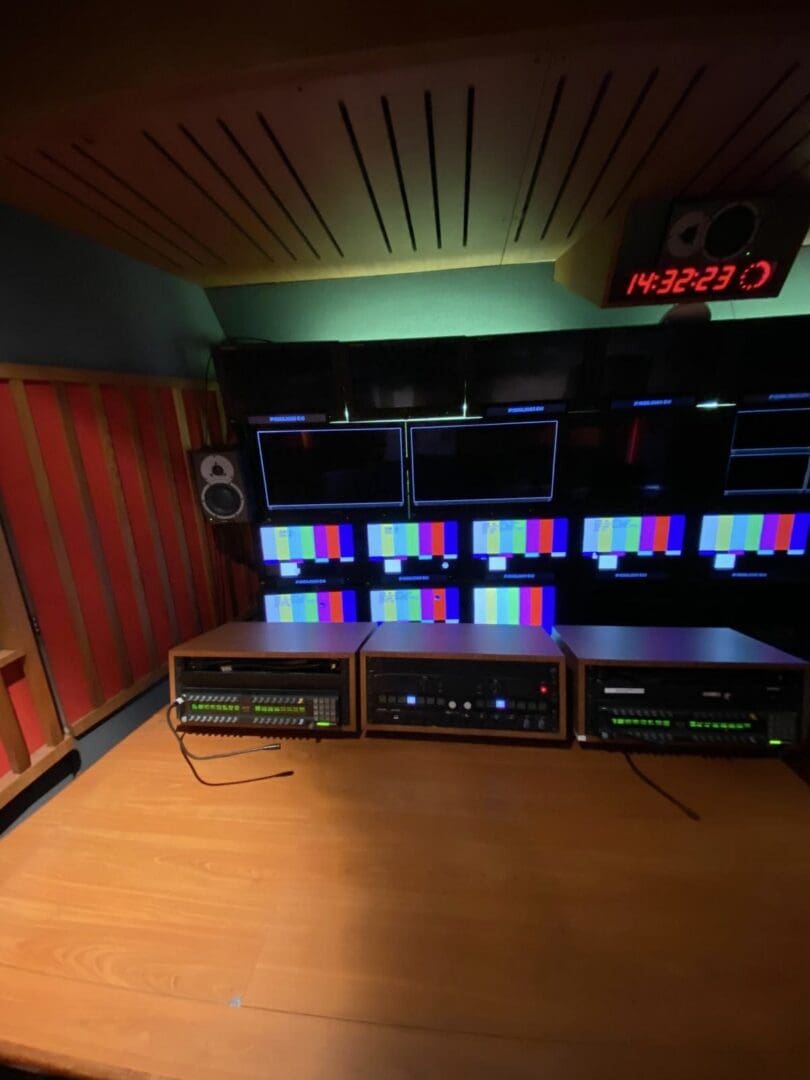

Production gallery of the used 12 camera HD OB van with Sony monitor wall

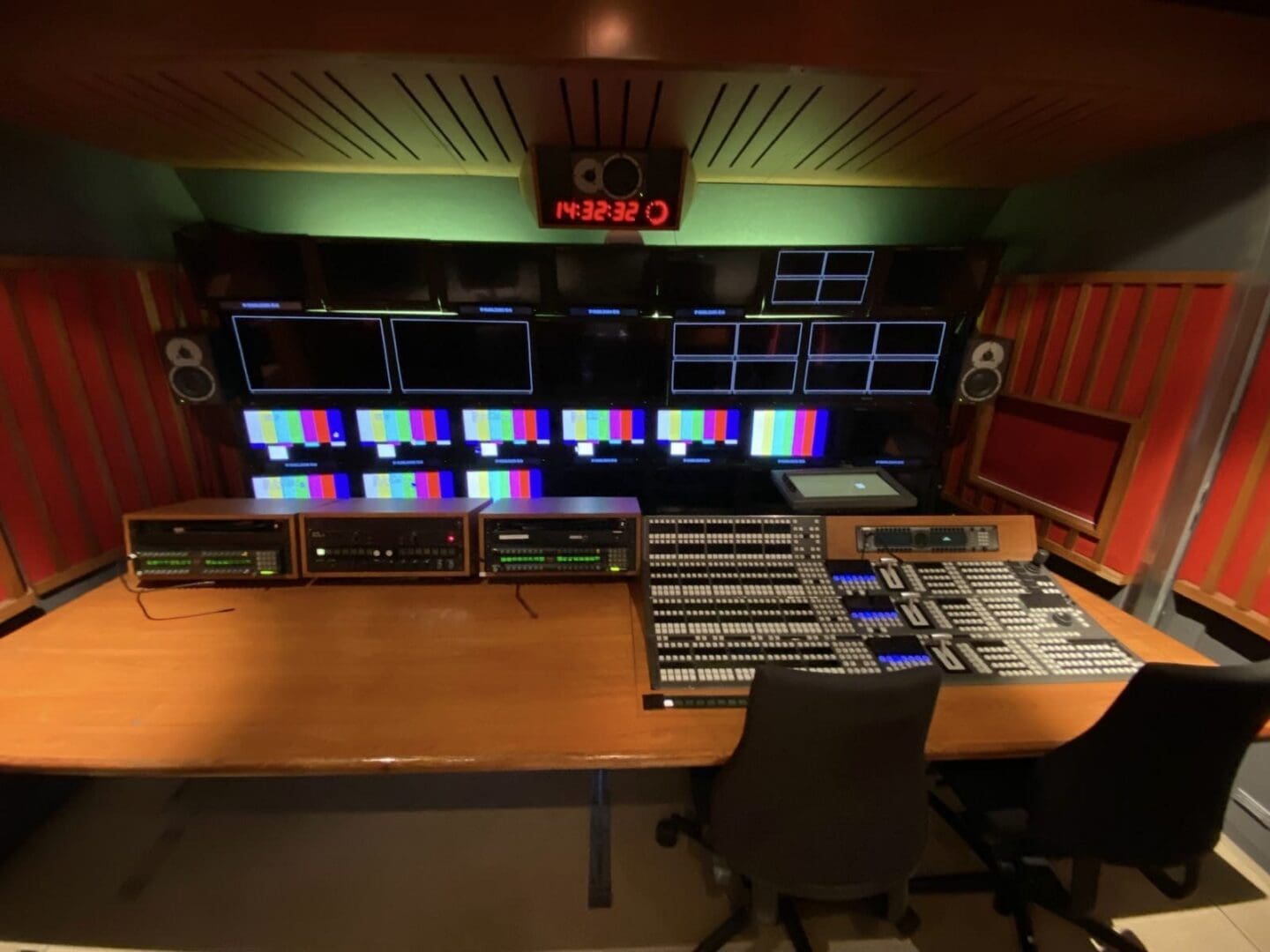

Grass Valley Kayenne XL vision mixer panel in the OB van production area
Production desk and monitor wall inside the HD OB van

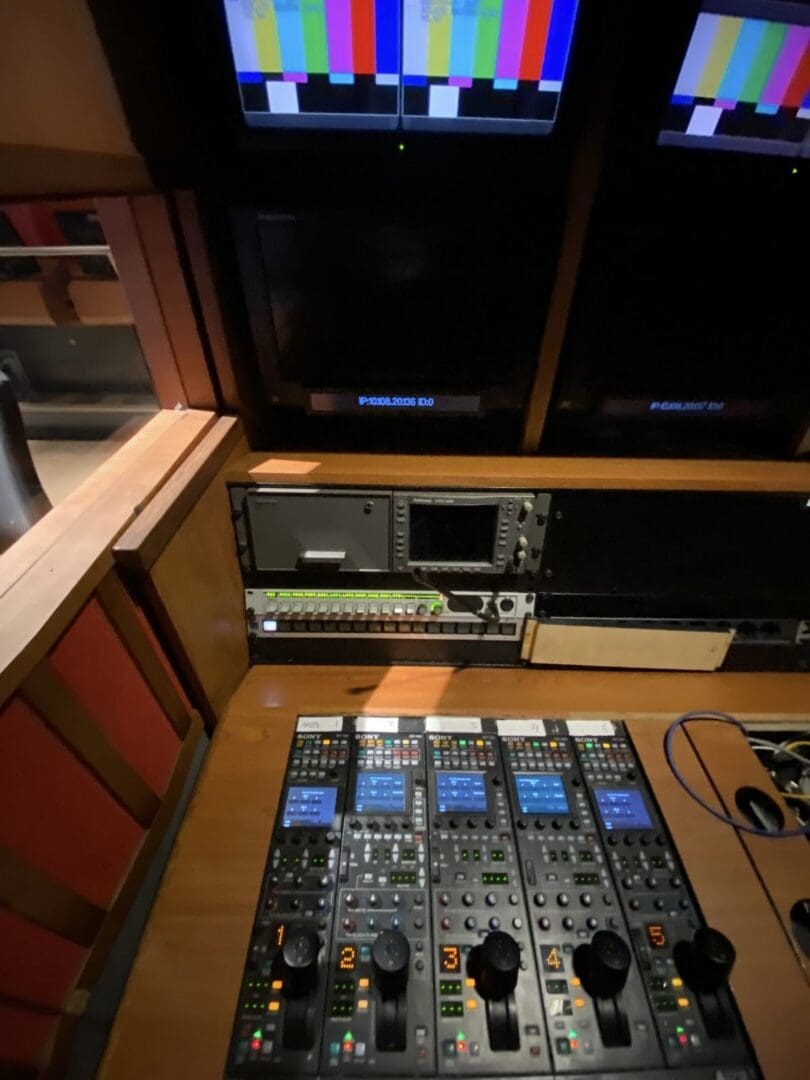

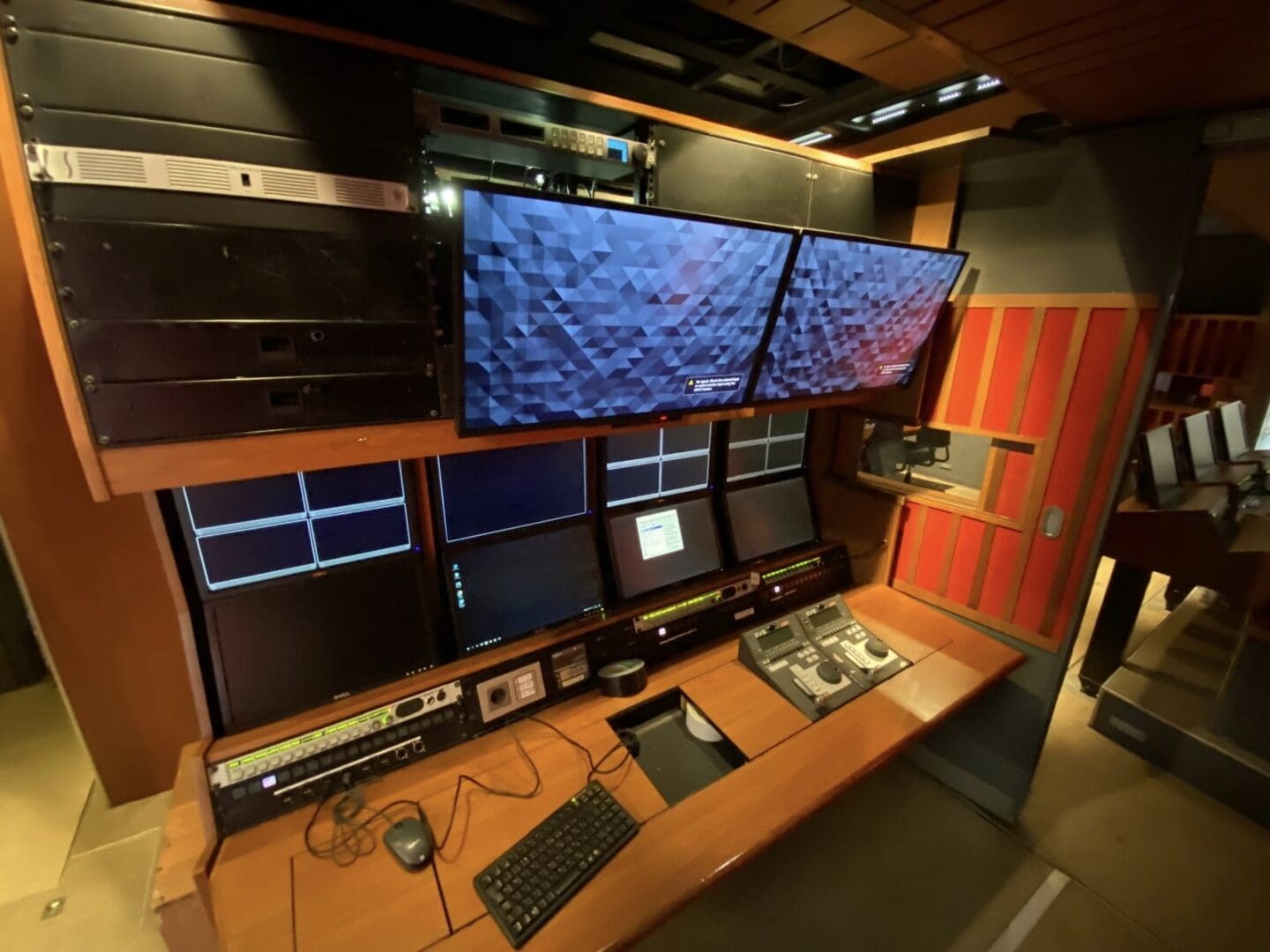

Vision area with Sony remote control panels and Tektronix waveform monitor
EVS recording area with multiviewer screens and LSM remotes

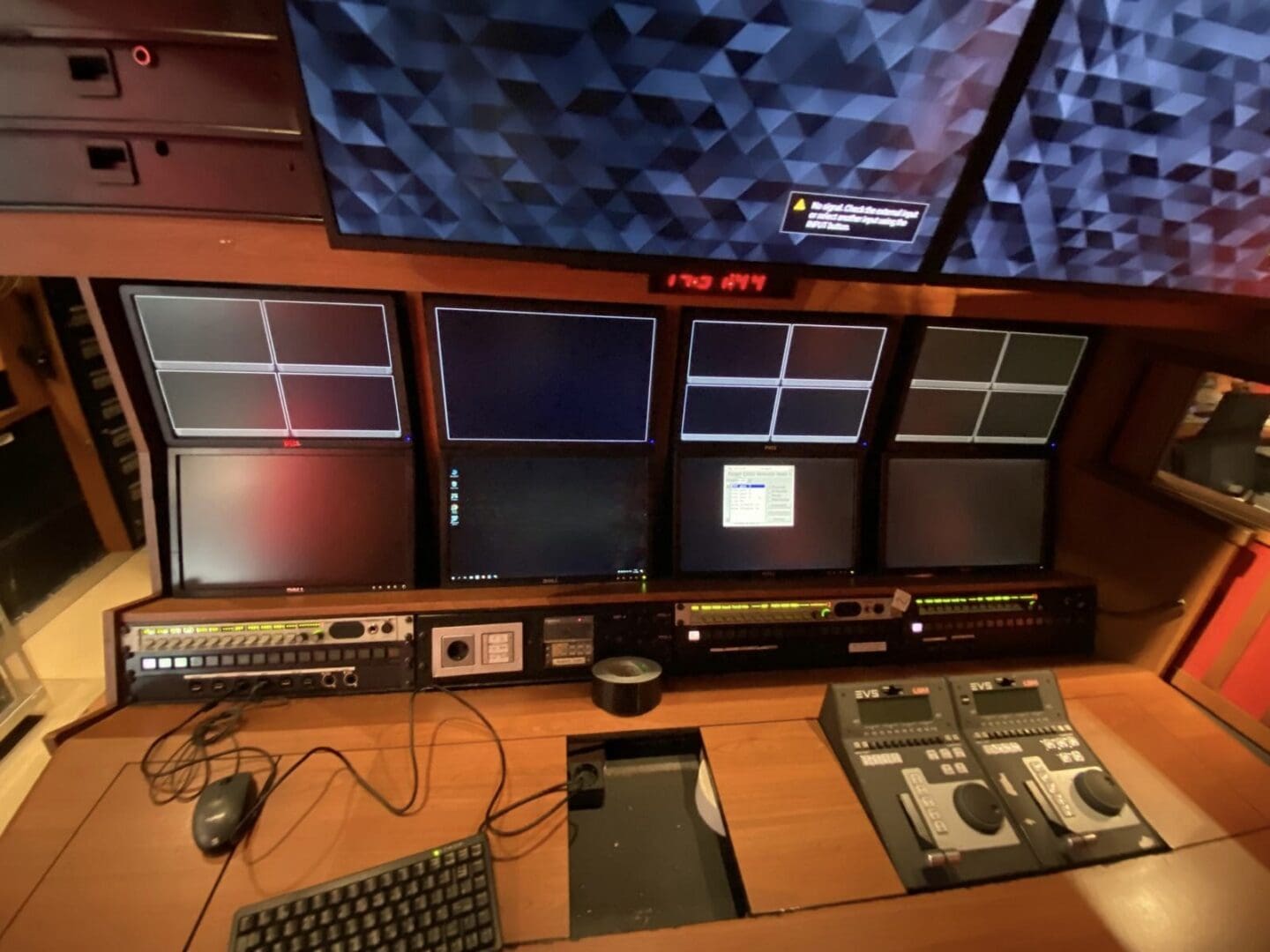

Two EVS LSM remote controllers in the OB van recording area

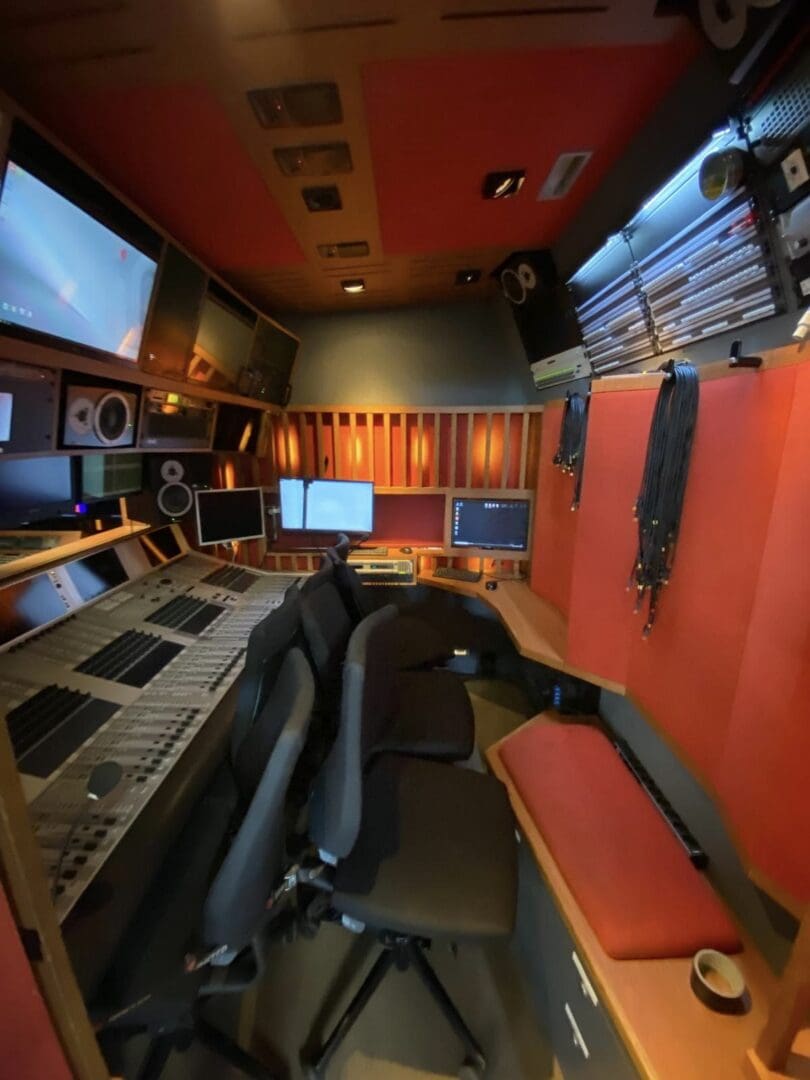

Sound room of the OB van with Studer Vista 8 console and Dynaudio monitoring

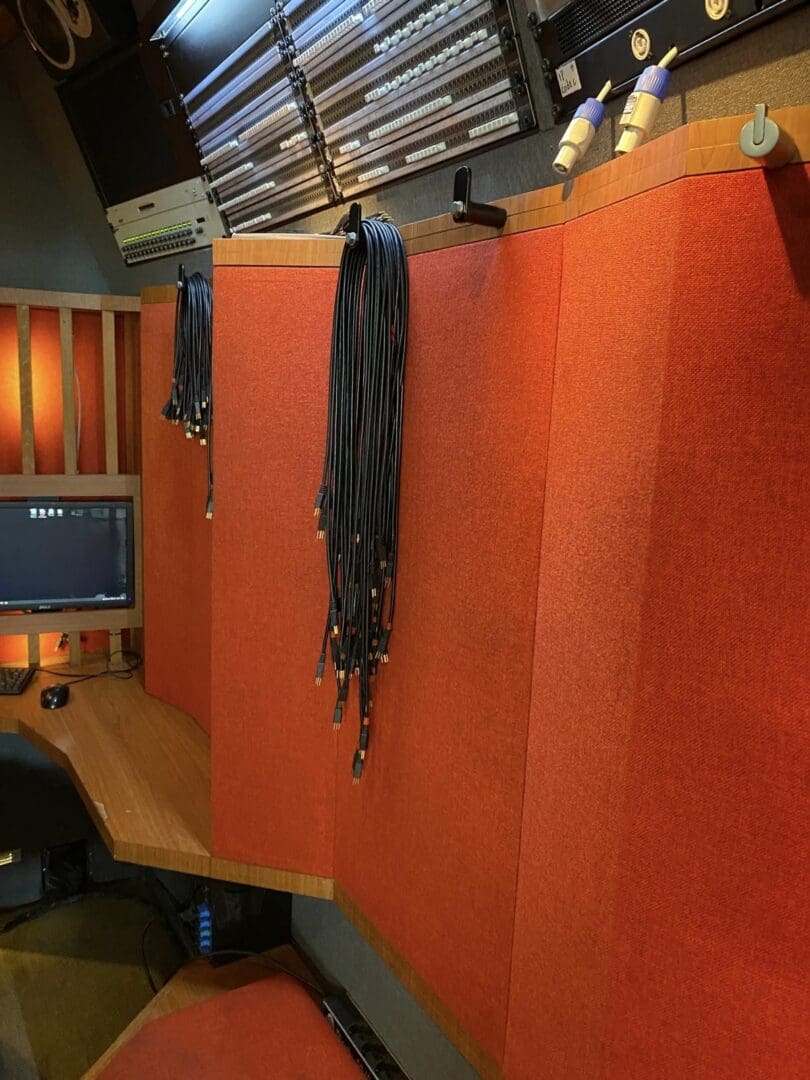

Audio patch panels and cable storage in the OB van sound room

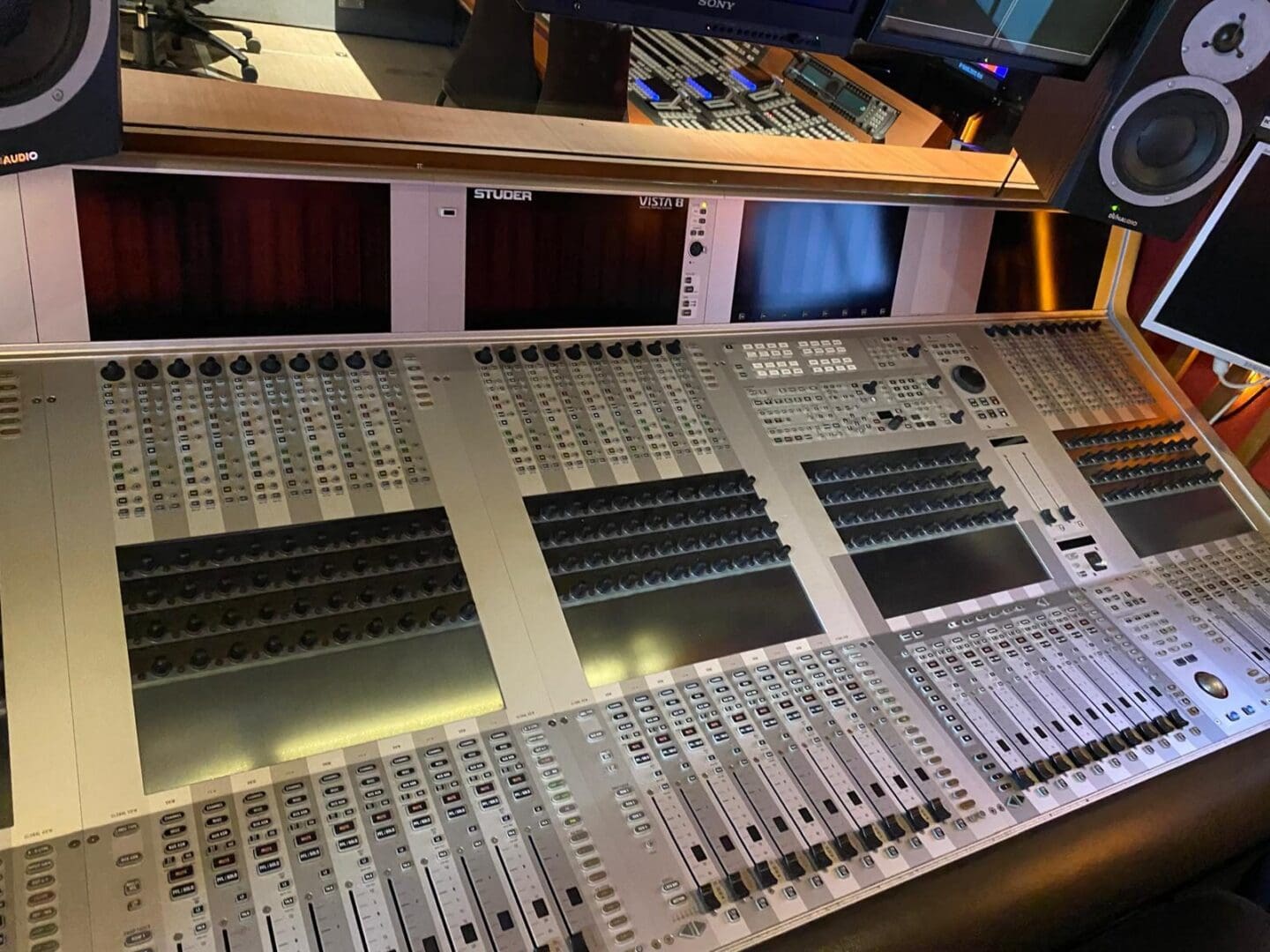

Studer Vista 8 digital audio console, 52 faders, in the OB van sound room

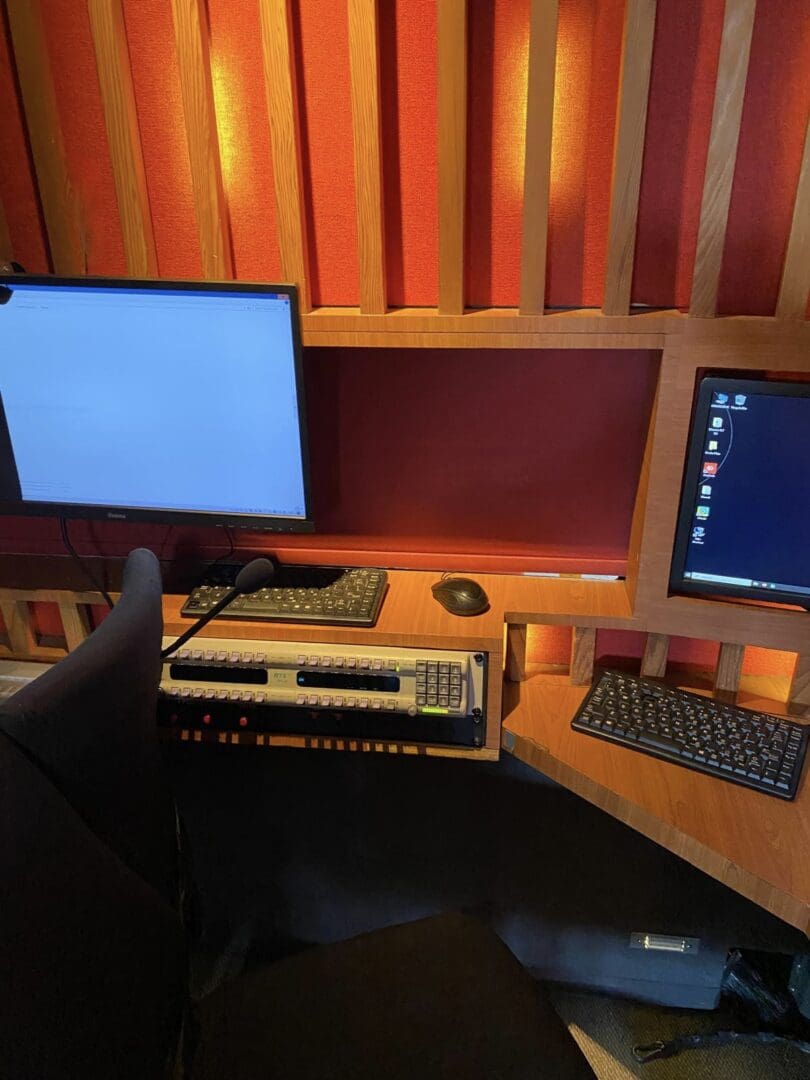

Control room desk with dual computer monitors.

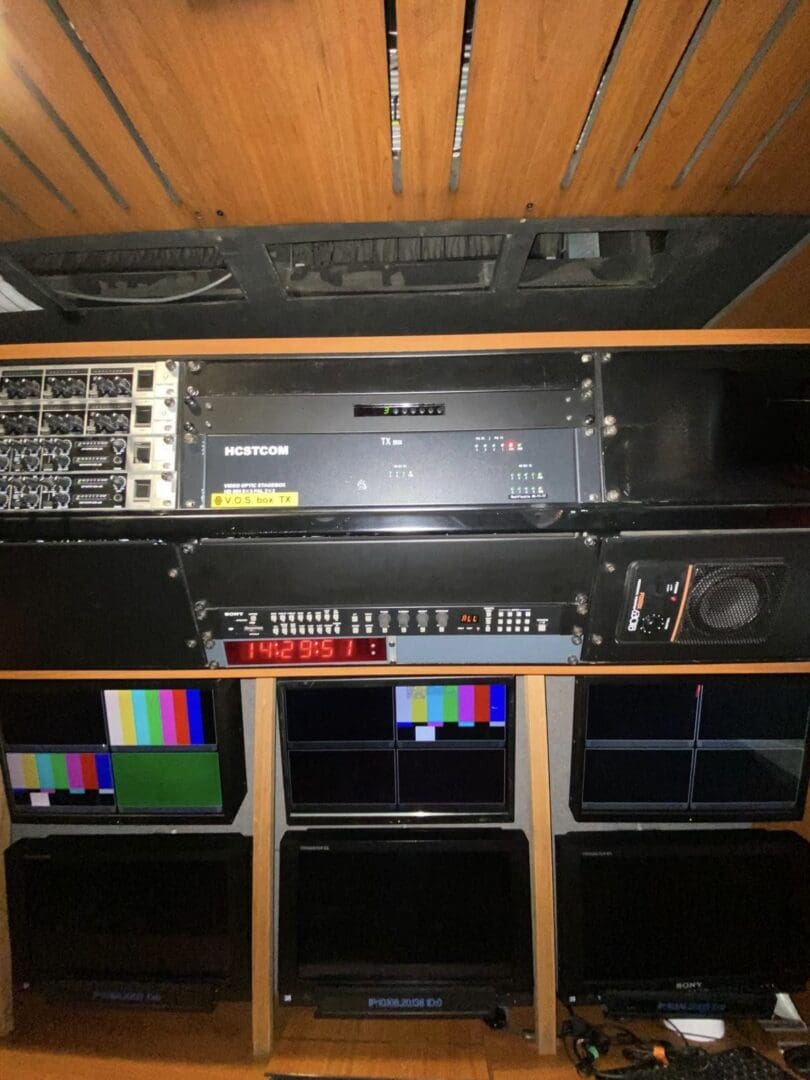

Engineering rack with HCSTCOM video optic stagebox and Sony monitors

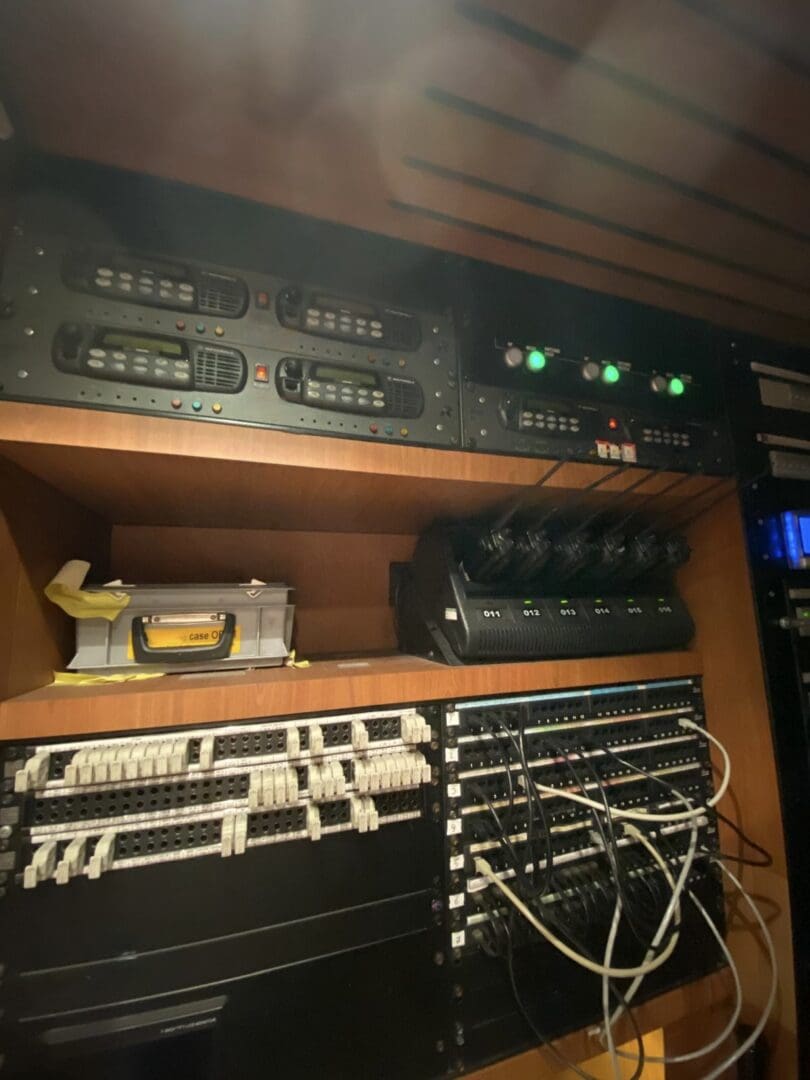

Motorola radio rack, charger and patch panels in the OB van

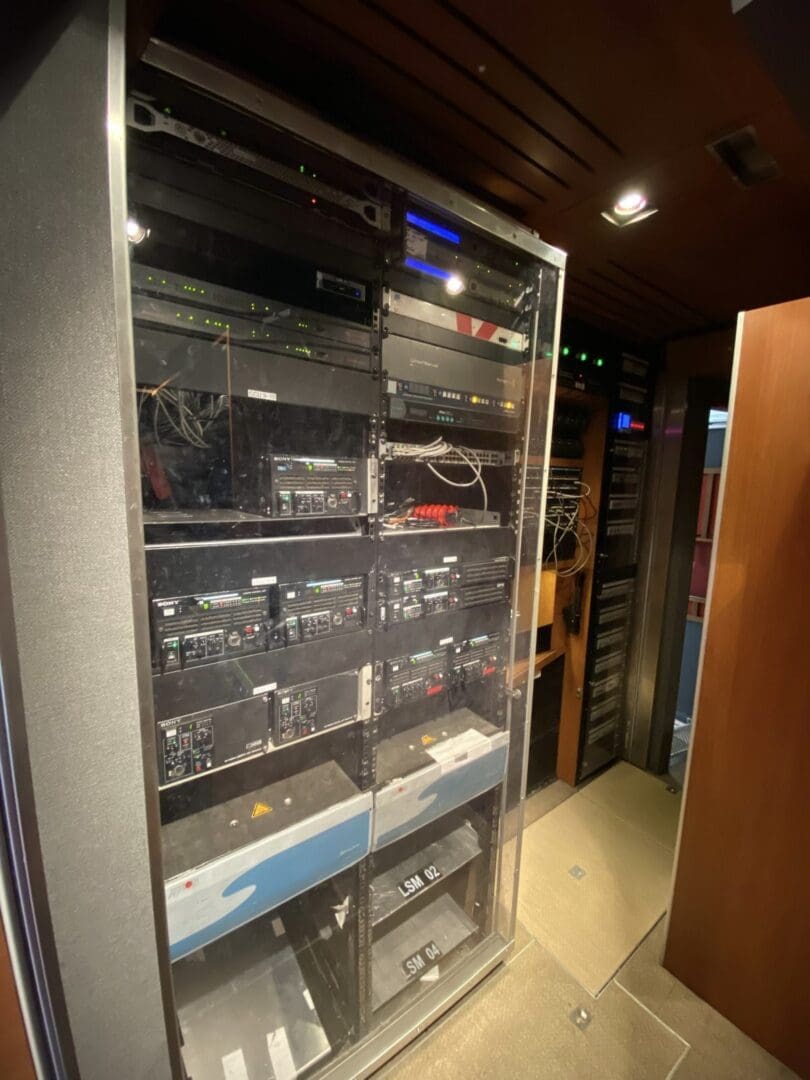

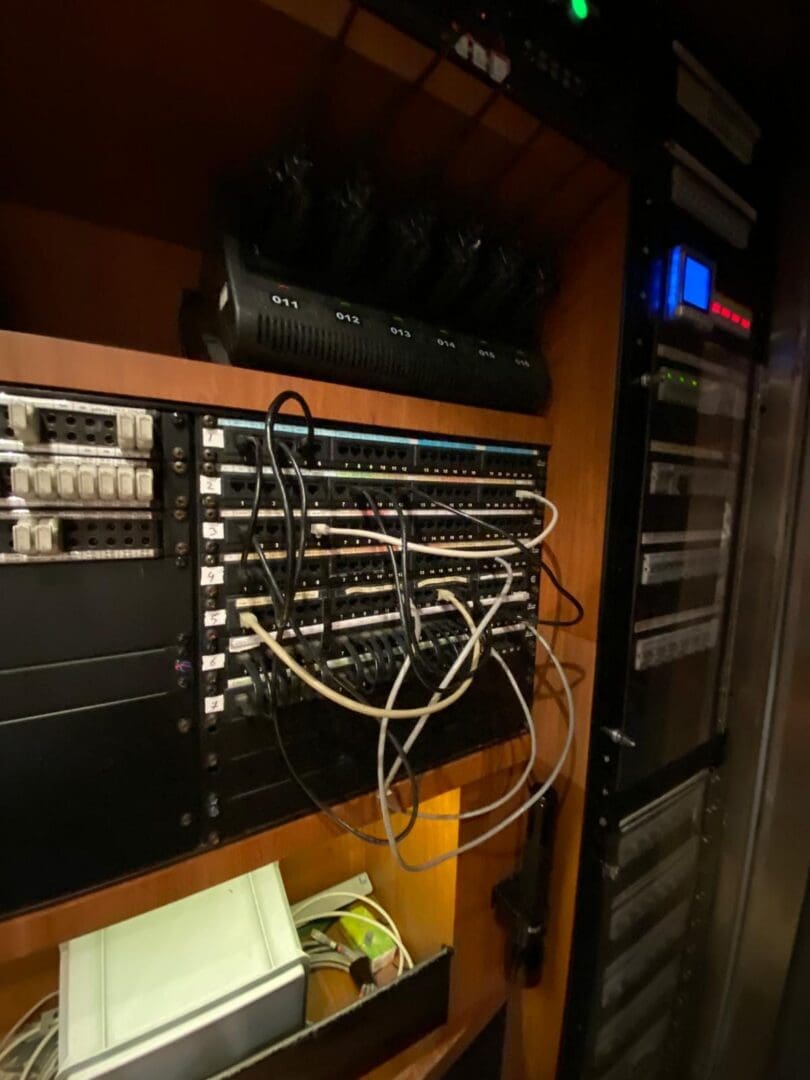

Network and video patch rack inside the OB van

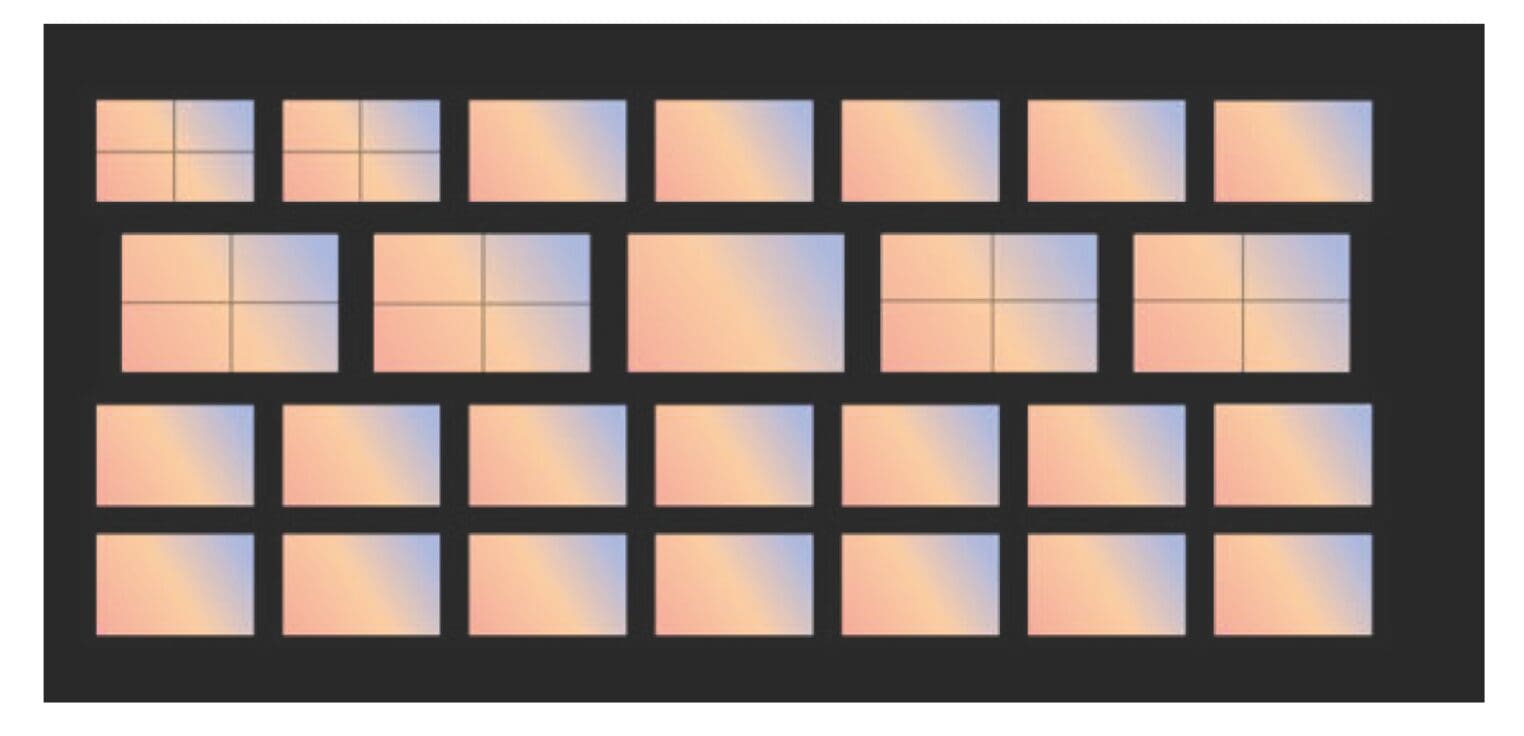

Monitor wall layout diagram of the used 12 camera HD OB van
Server rack filled with broadcasting equipment.
Control room with multiple display monitors and controls.
Control room with advanced video production equipment.
Broadcast control equipment with multiple display screens.
"Control room with dual large display monitors"
Broadcast control panel with various equipment.
Audio mixing console with various controls and screens.
Broadcast control panel with multiple display screens.
Mobile production equipment storage and control panel.
Control room desk with multiple computer monitors.
Control room with audio mixing equipment visible.
