OB4 Outside Broadcast Unit

Call for Price

OB4 Outside Broadcast Unit Specification – HD / SDR / Dolby 5.1

24 Camera Ready HD Single Expender OB Trailer – Fully Refurbished

Overview

This single expanding OB trailer was originally built and operated in the UK for football league coverage and a wide range of live sports productions.

It is currently undergoing a comprehensive refurbishment and upgrade programme, transforming it into a modern, high-performance broadcast solution suitable for European and international operations.

Refurbishment Scope

Exterior

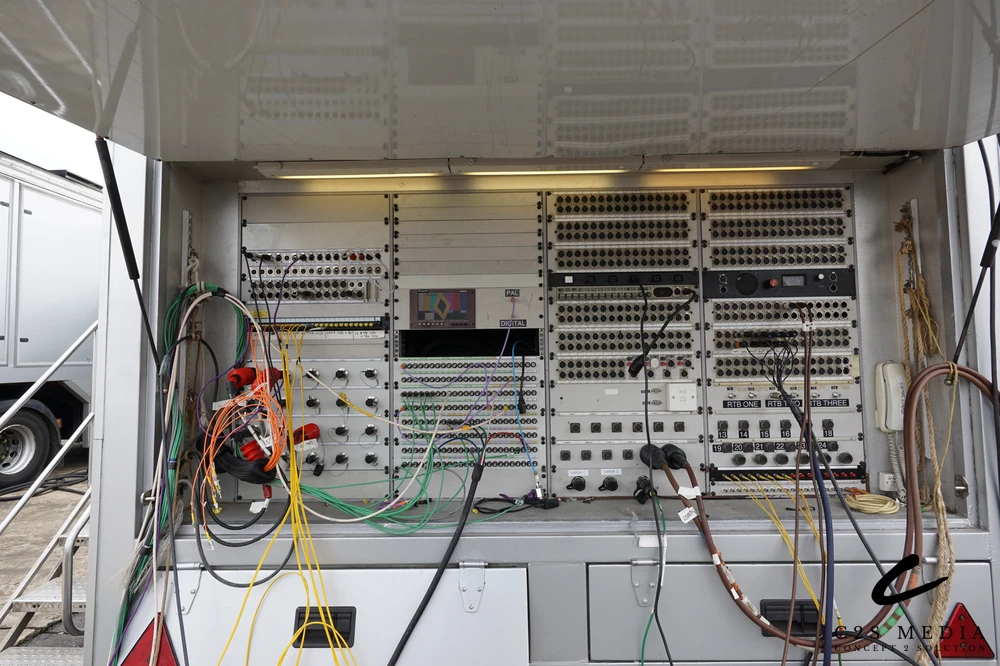

• Removal, full service, and reinstallation of the hydraulic system
• Complete inspection and servicing of all electrical systems
• Full overhaul and servicing of the OB van power systems
• Complete exterior repaint in metallic white
• Upgrade to modern exterior lighting
• Replacement and full servicing of the air-conditioning systems
• Replacement of locker gas struts
• Locker interiors upgraded with aluminium chequer plate lining

Interior

• Removal of existing wall coverings and installation of modern wall panels
• Upgrade to contemporary, high-efficiency ceiling lighting
• Replacement of all floor finishes with modern materials
• Installation of LED task lighting under desks
• Refinishing of wood trims to a modern standard
• Removal of partition wall and optimisation of interior layout

Summary

This refurbished OB trailer combines a proven broadcast platform with modern upgrades, offering a reliable, cost-effective solution ready for demanding live production environments.

SPECIFICATION

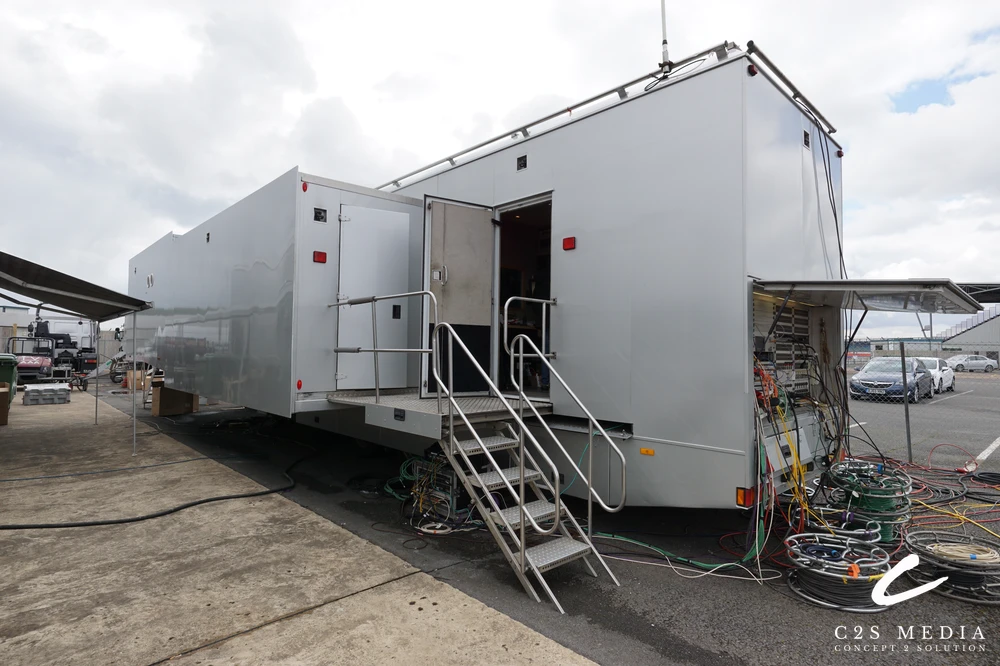

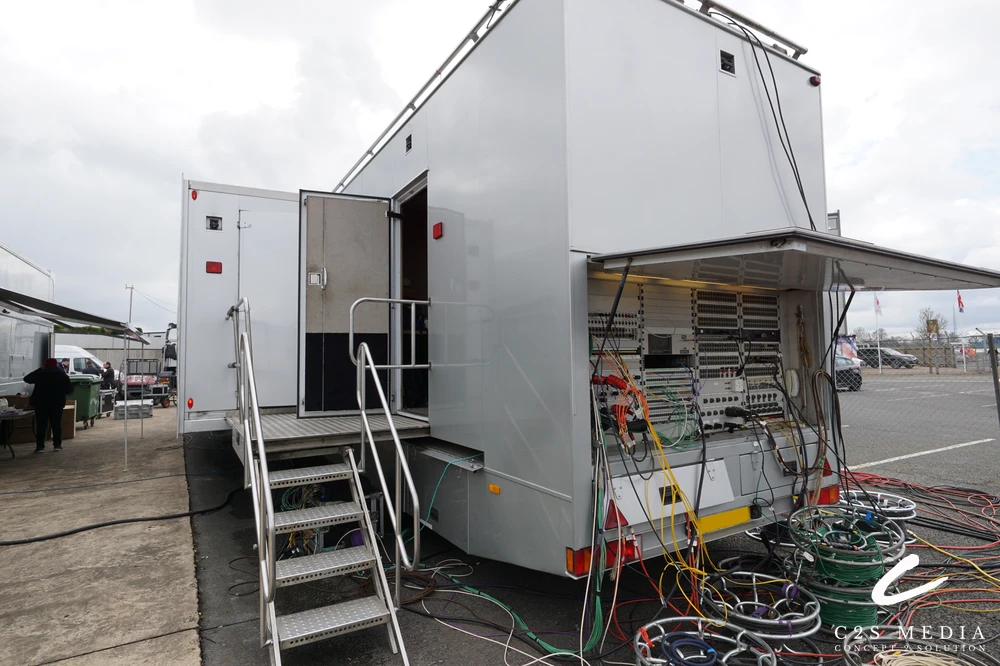

Vehicle
Overall length 18m, width 4.5m extended

Cameras
20 Sony HDC2500 cameras
Sony HDC3300 SloMo cameras as required

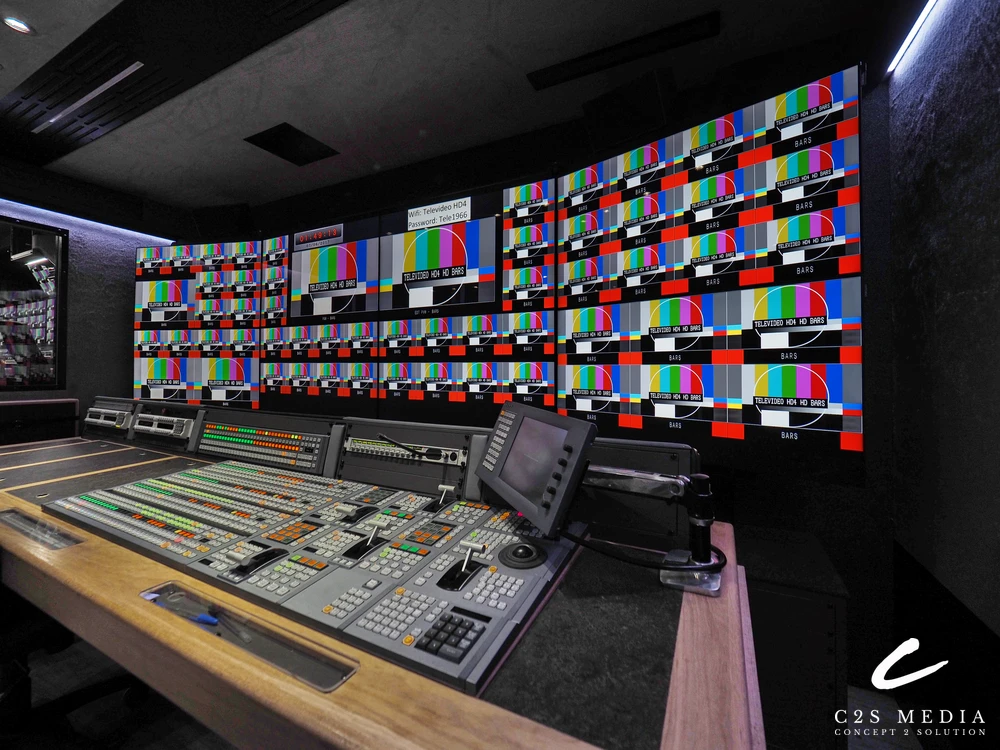

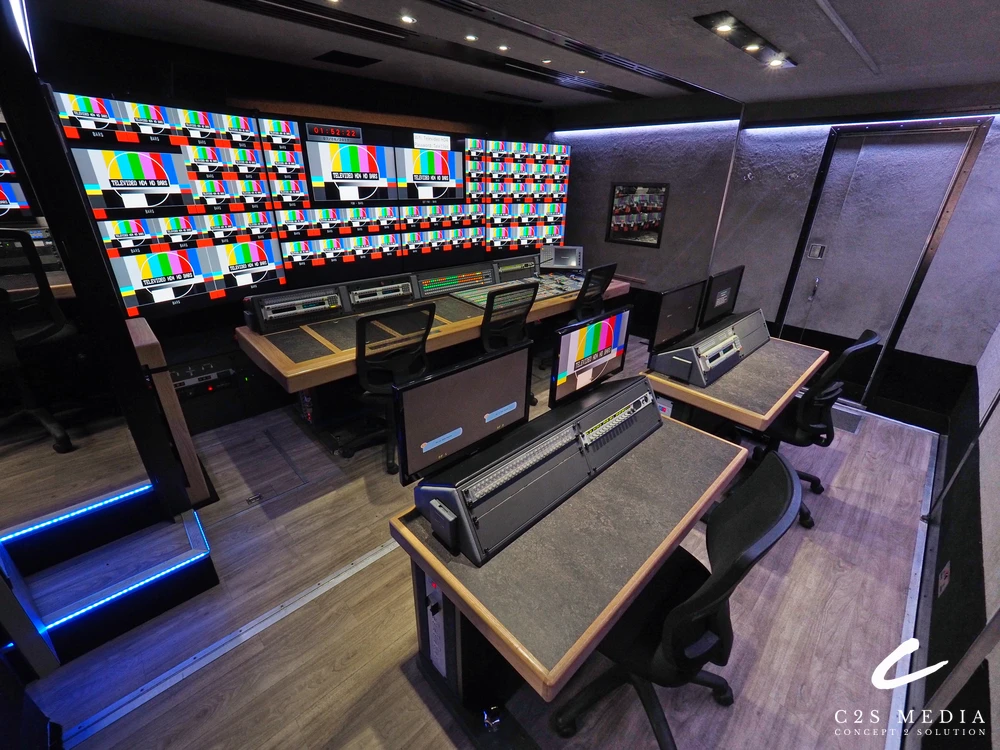

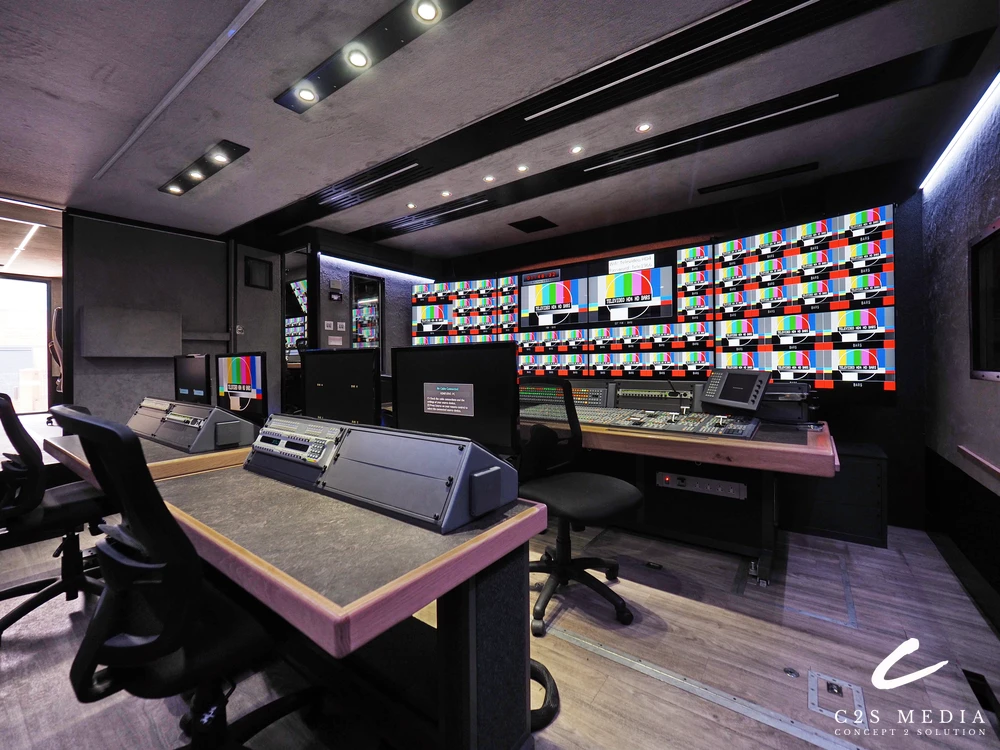

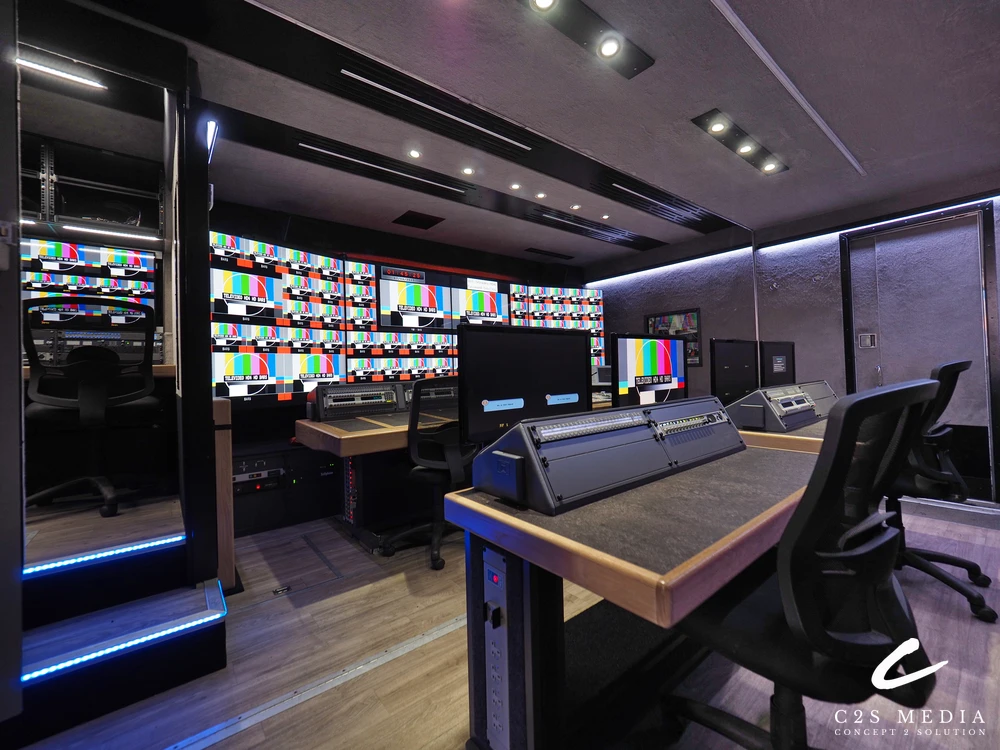

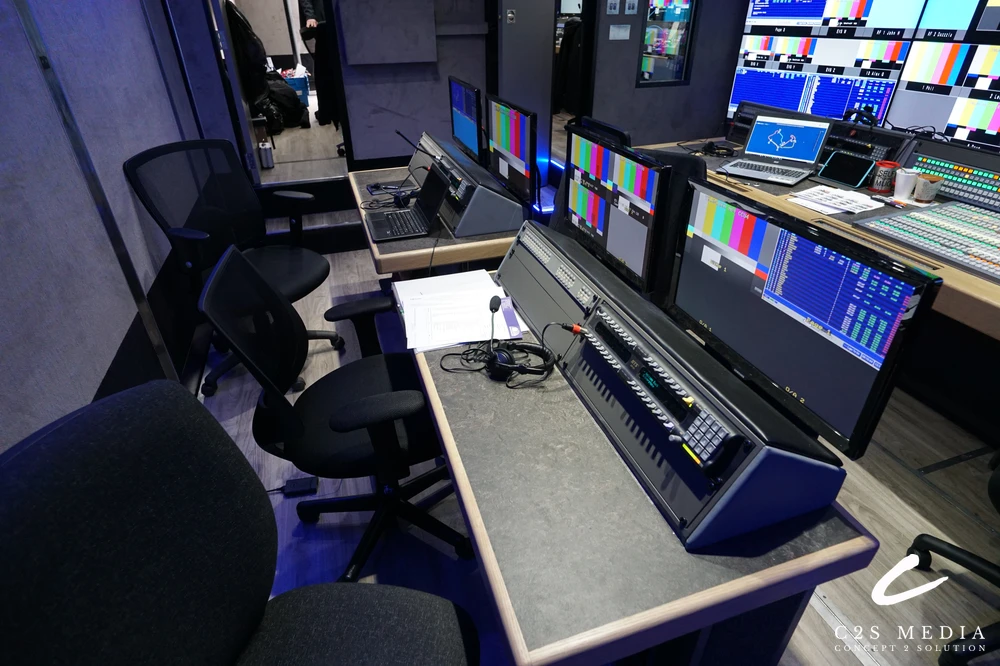

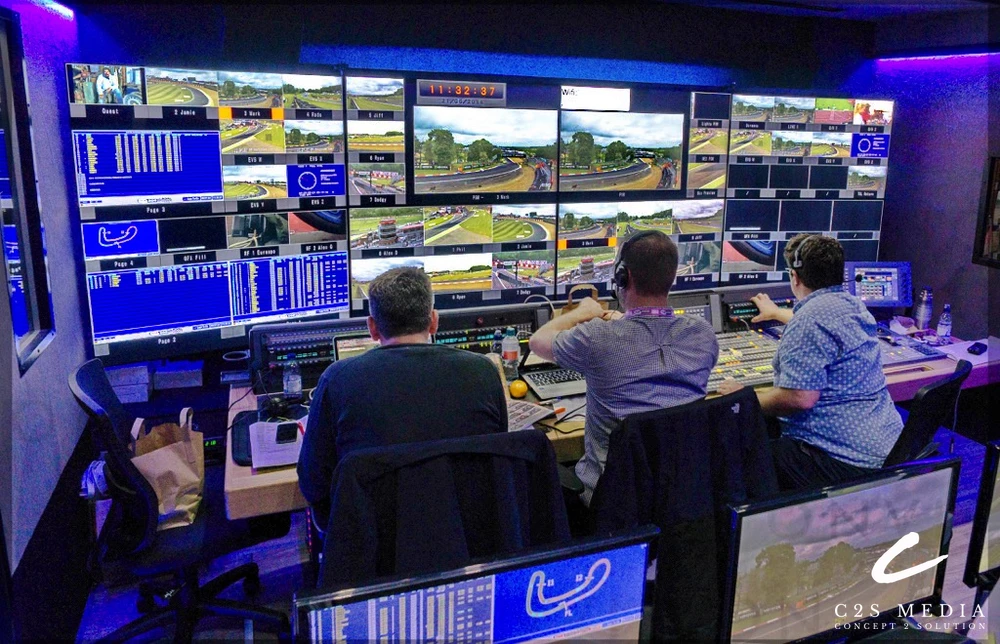

Production Area

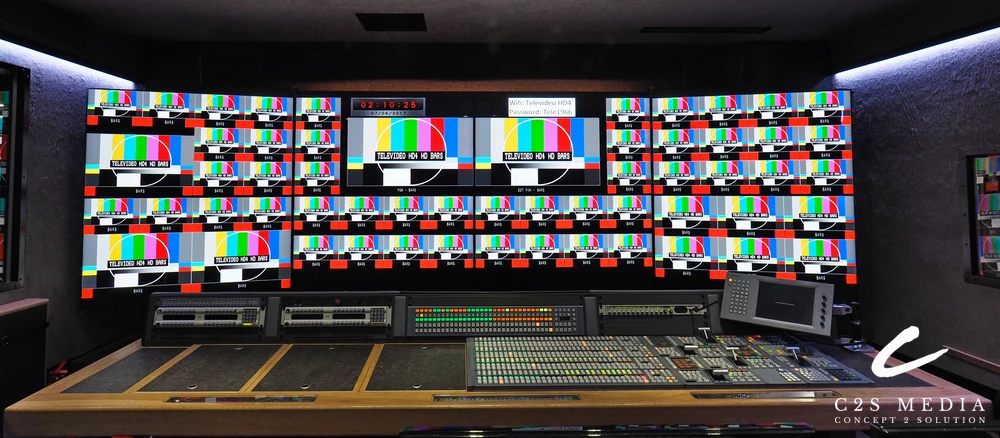

2 rows of production desks Sony MVS8000X vision mixer

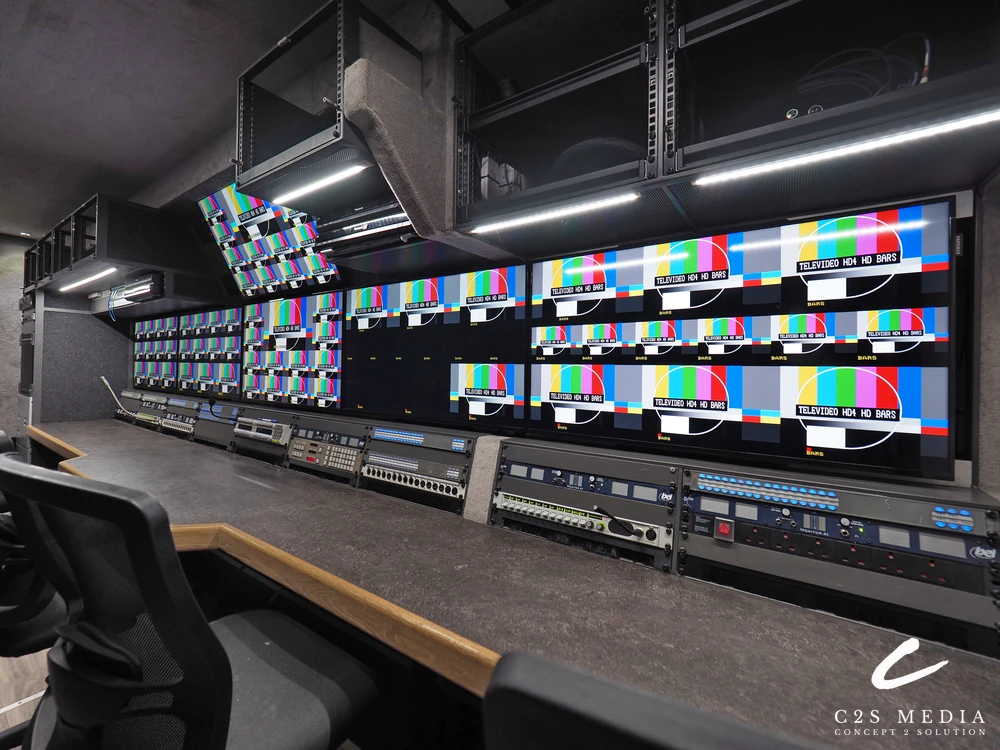

8 x 46” flatscreen monitor stack with up to 110 individual source monitors
4 x 22” displays for rear production desk monitoring

Production
2 Rows of production benches
8 x 46” Flatscreen monitor stack with up to 110 individual source monitors
4 x 22” Displays for rear production test monitoring

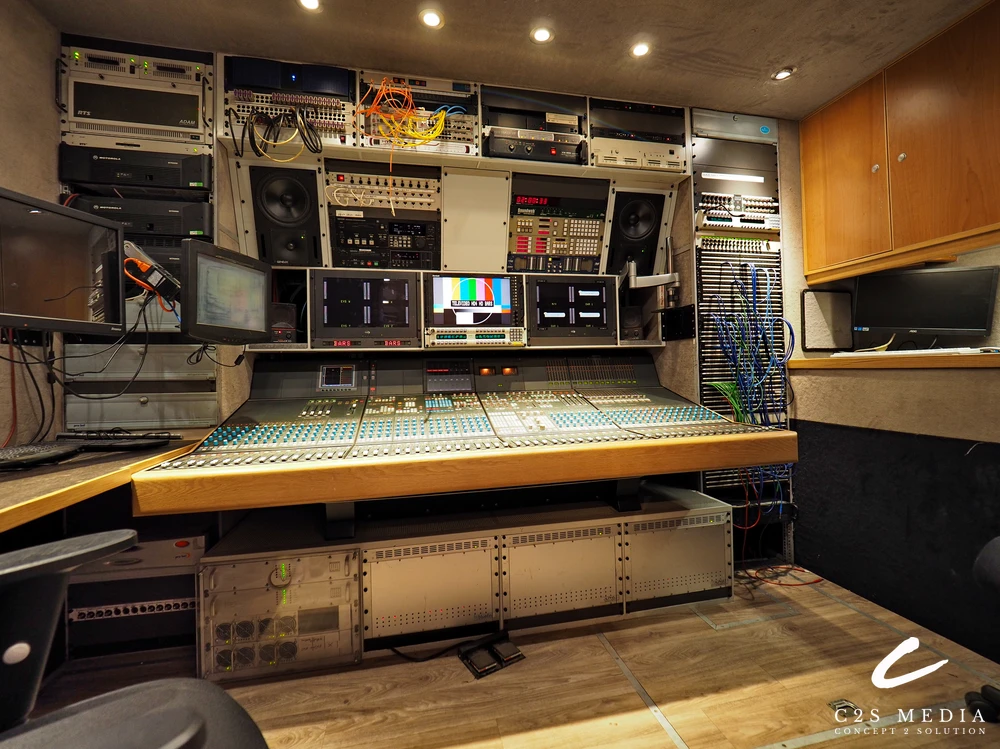

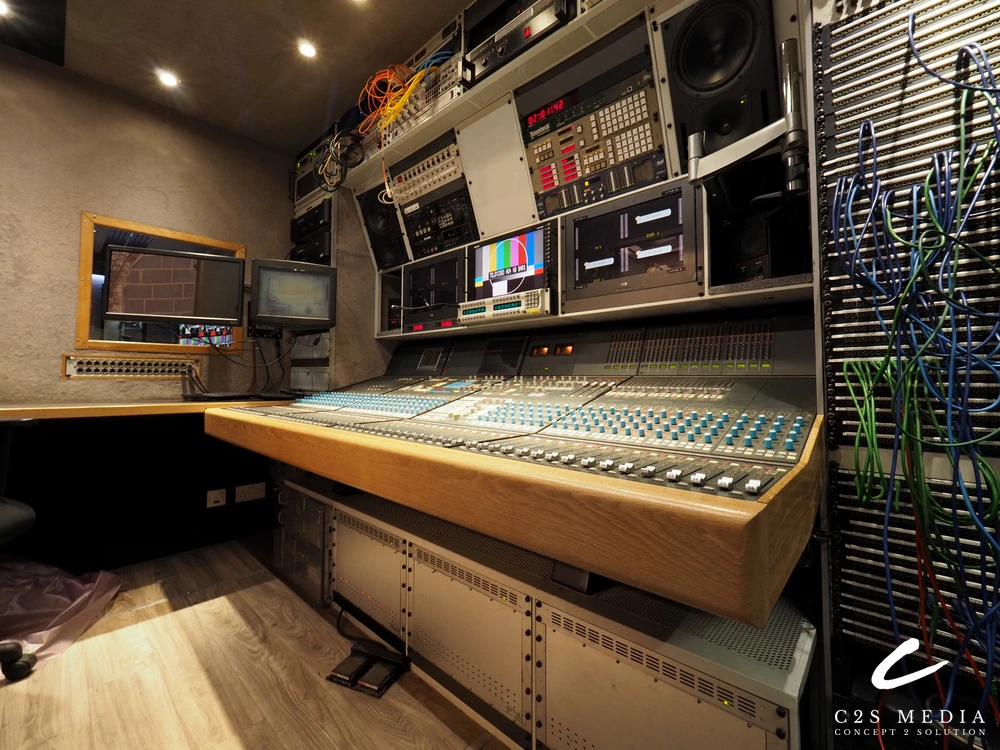

Audio
64 fader Calrec Alpha Bluefin sound desk
Hydra stageboxes and MADI interface
5.1 surround capability Telex Adam talkback matrix
3 x Radio Talkback base stations

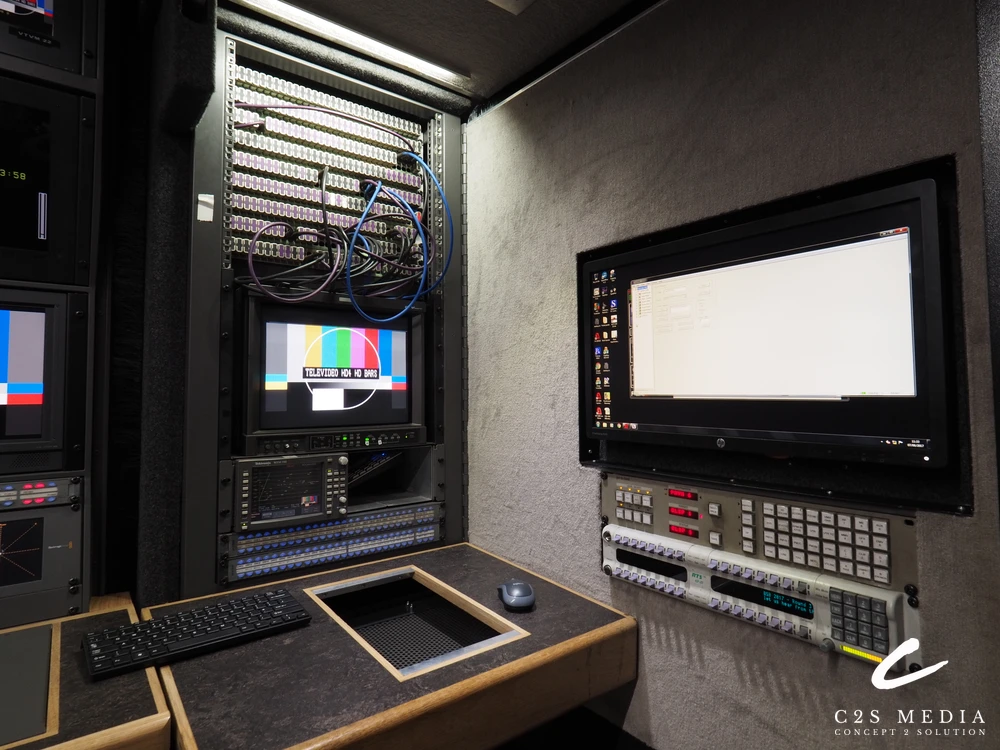

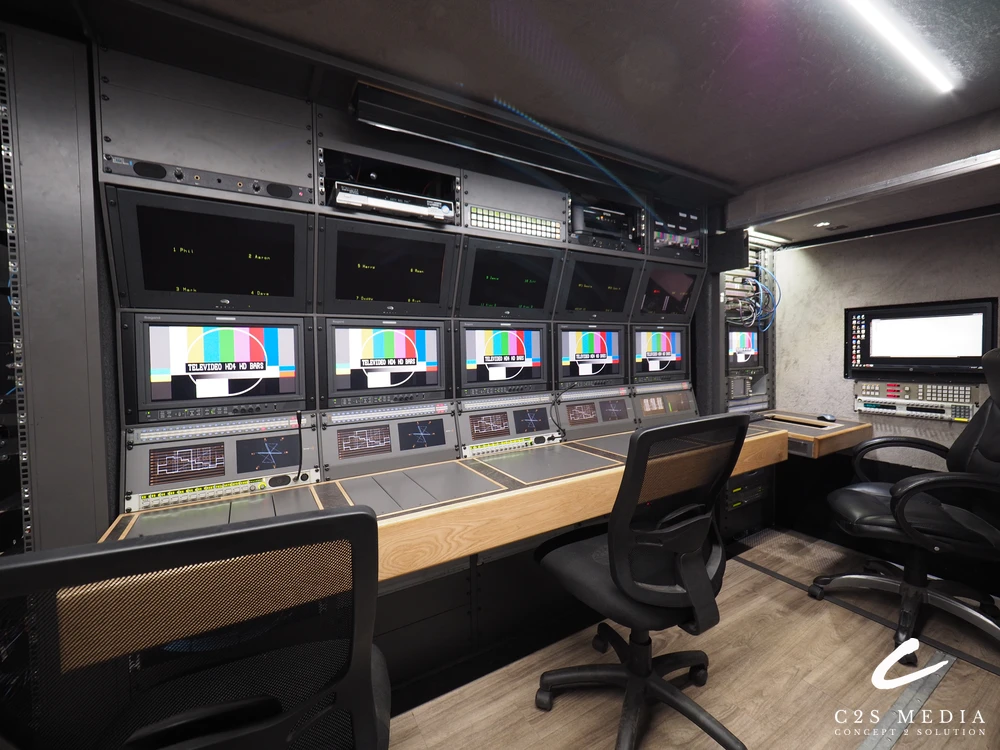

Engineering
5 x Rack positions with Grade 1 CRT monitor & HD scopes
1 x Engineering God position with
Grade 1 Tektronix monitoring
Probel 256 x 256 matrix

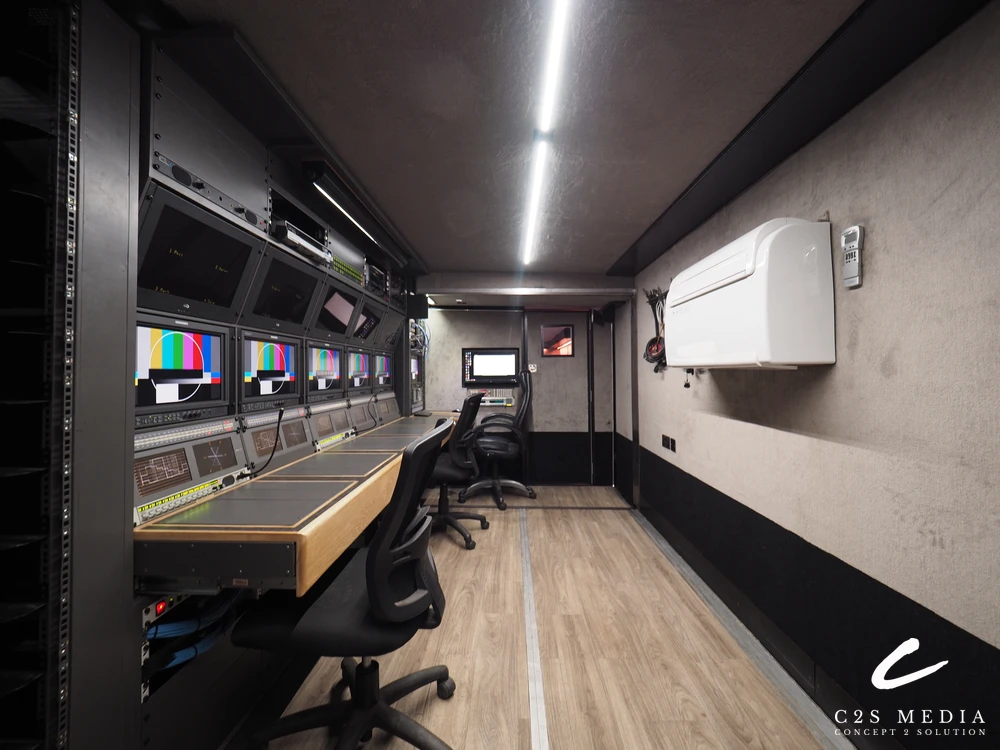

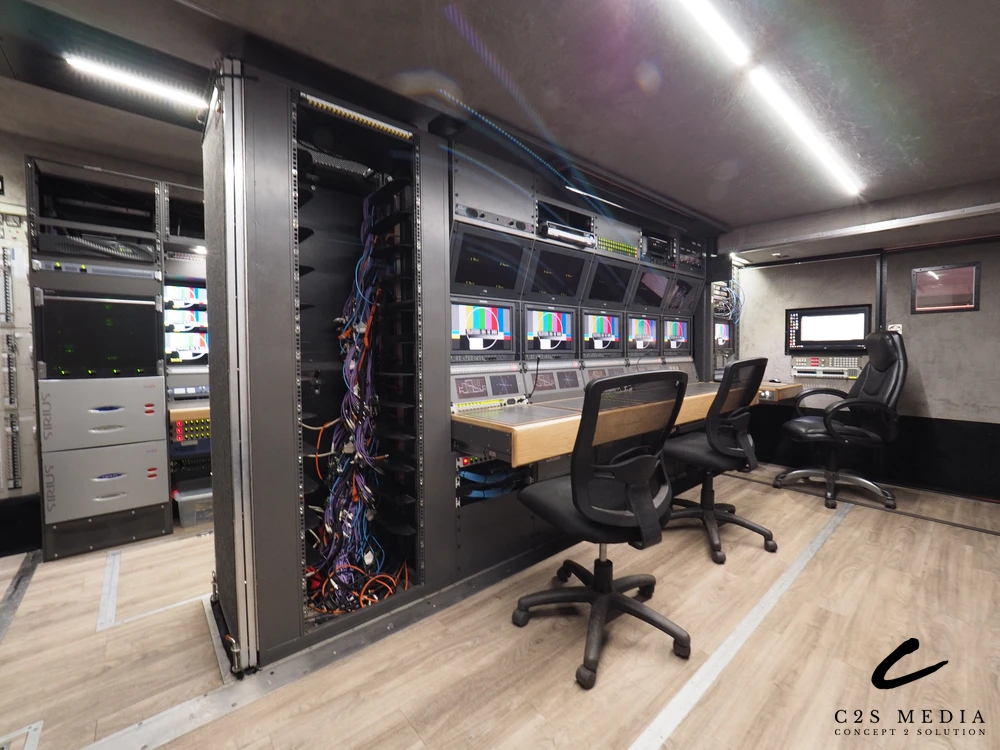

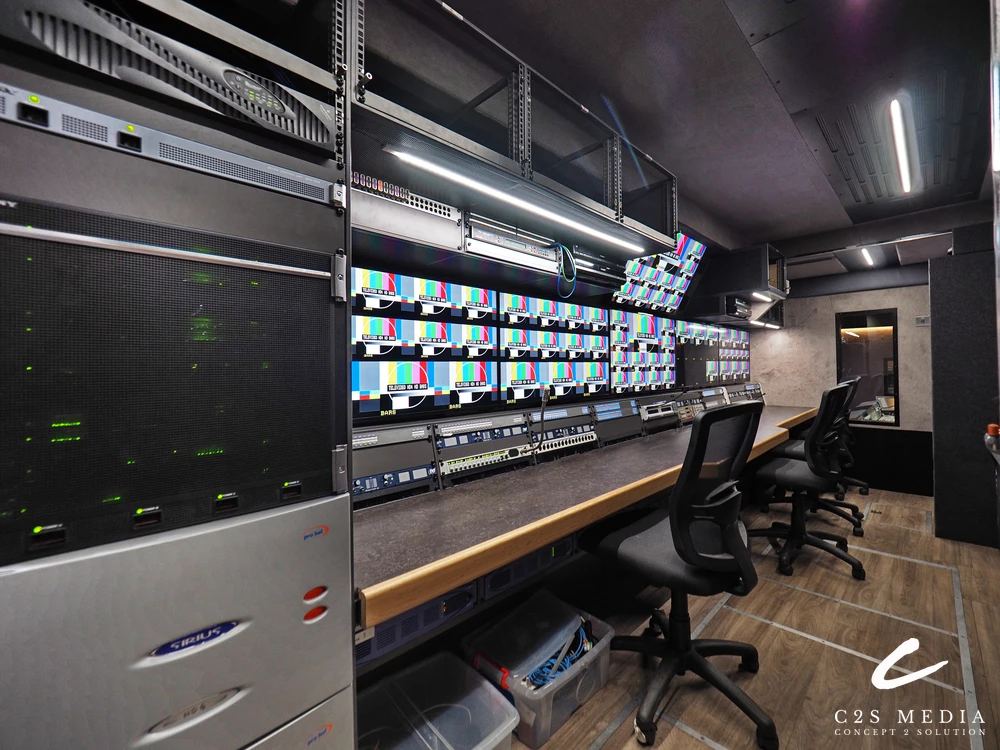

VTR
5 x 6 channel EVS positions, 5 x VTR positions
Space for 9 operators
6 x 40” flatscreen monitors with up to 96 individual source monitors

Miscellaneous

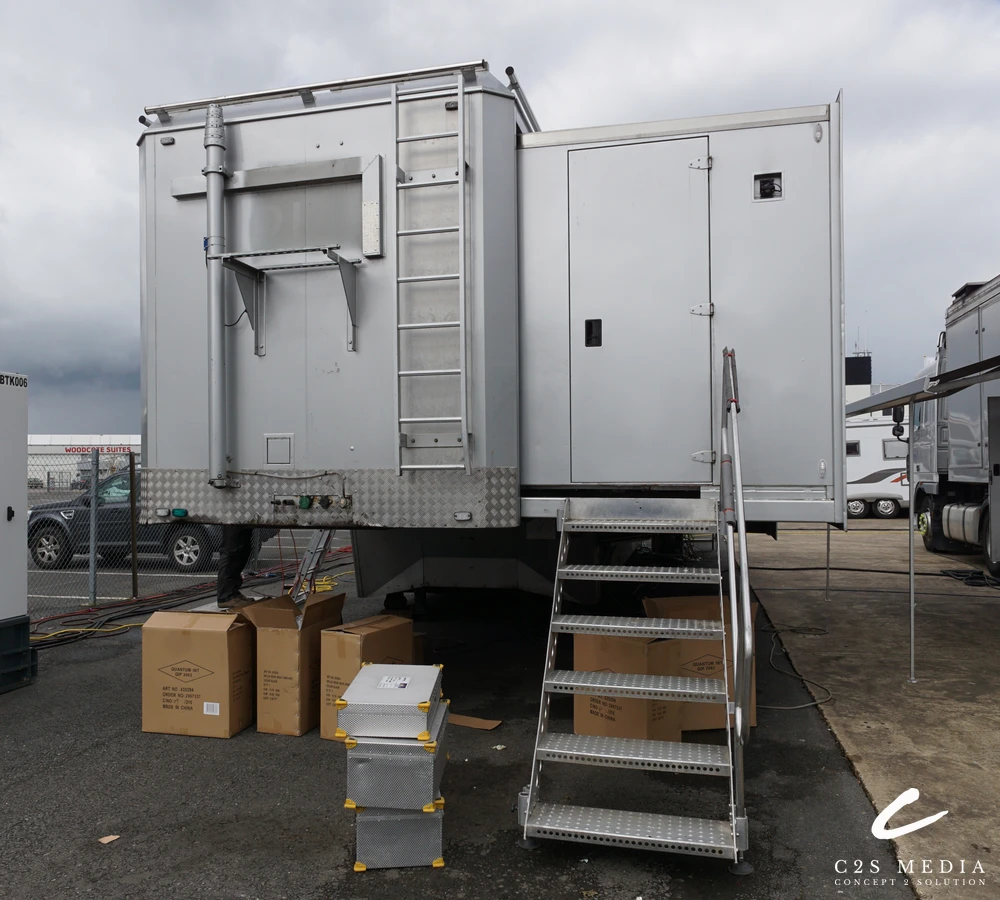

Walk on roof with safety rails
24v auxiliary power
3x integrated air conditioning units
Satellite and terrestrial off air receivers
2x Pneumatic Masts
Requires 2×125 amp single phase
or 1 x 125 amp three phase power
