OB1 – 16 CAMERA HD SINGLE EXPENDER OB TRAILER

SINGLE EXPENDER OB TRAILER DETAILS

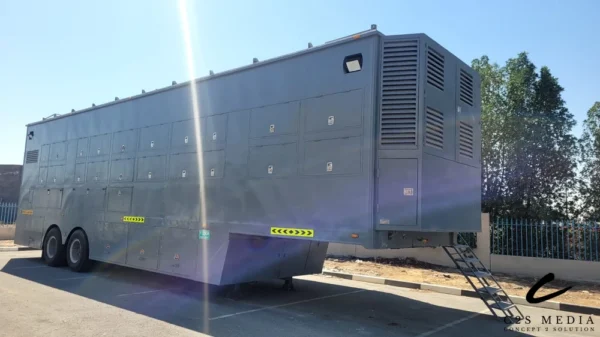

12.9M HD SINGLE EXPENDER OUTSIDE BROADCAST OB TRAILER Trailer Size:  12.9M L x 2.7M W x 4.2M H

Fully Renovated and Resprayed in 2025

Power – 220v 3 Phase 1 x 63a

1 x Integrated Power Suppy APC 2000 20KVA UPS

6 x integrated Generaltec GSAC air conditioning units (3 at the front & 3 at the back of the trailer)

4 x Production sections: PCR – VISION MIXER & GRAPHICS / VISION & EVS / ENGINEERING / SOUND

3G-SDI wiring for up-to 16 camera chains

OB VAN MAXIMUM CAPABILITY:

14 x Positions for HD Camera Chains

2 x Positions for  Super Slow-Mostion HD Camera Chains

3 x  EVS positions, capacity, 8 x VTR positions

5 x Frame syncs with cross-conversion for external sources

64 x PIPs HD Production Monitor Wall

4 Production Sections for 17 Staff Capacity

Main Production 2 Rows: 1st Row: 4 PCR Positions, 2nd Row: 2 GFX Positions,

2nd Production 2 Rows: 1st Row: 5 Vision Positions,  2nd Raw: 3 EVS/VT Position,

Engineering section: 2 EIC Positions

Sound section: 1 Audio Position

CORE BROADCAST EQUIPMENT:

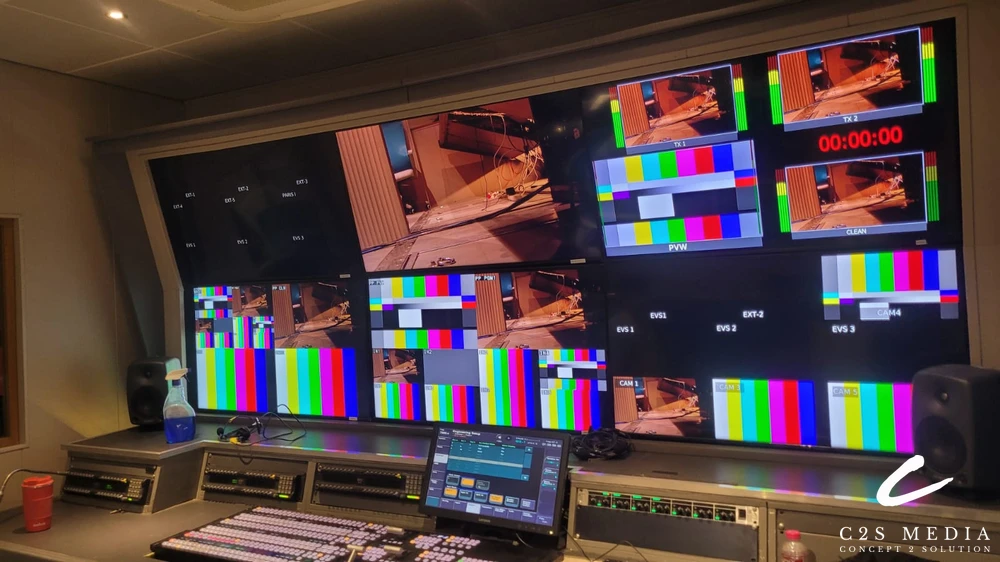

8 x 42” flatscreen monitor stack with up to 64 individual source monitors: 42 INCH FLAT SCREENS AND MULTIVIEWERS

7 x 17” Monitors:           VISION, EVS, GFX and EIC positions

2 x 2×7” Monitors: VISION, TAILBOARD

4 x 4×4” Monitors: VISION

VISION MIXER

SONY MVS-6530 3M/E 48IN / 32OUT HD BROADCAST VISION MIXER

ROUTER/ MULTIVIEWER

SNELL PROBEL SIRIUS 80×80 HD Video/Audio Router

SNELL PROBEL XY Panel

SNELL PROBEL 48 Keys Panel

EVERTZ MVW 64 Inputs Multiviewer

SOUND

CALREC BRIO 36 Calrec Brio 36 Compact Broadcast Console, 64 Input Digital Channel Upgrade, Calrec, Hydra2 Network with Field Breakout Box, MADI I/O Expansion Card Support 64 I/O Channels

RTS CRONUS 48 INPUT PRO DIGITAL TALKBACK SYSTEM

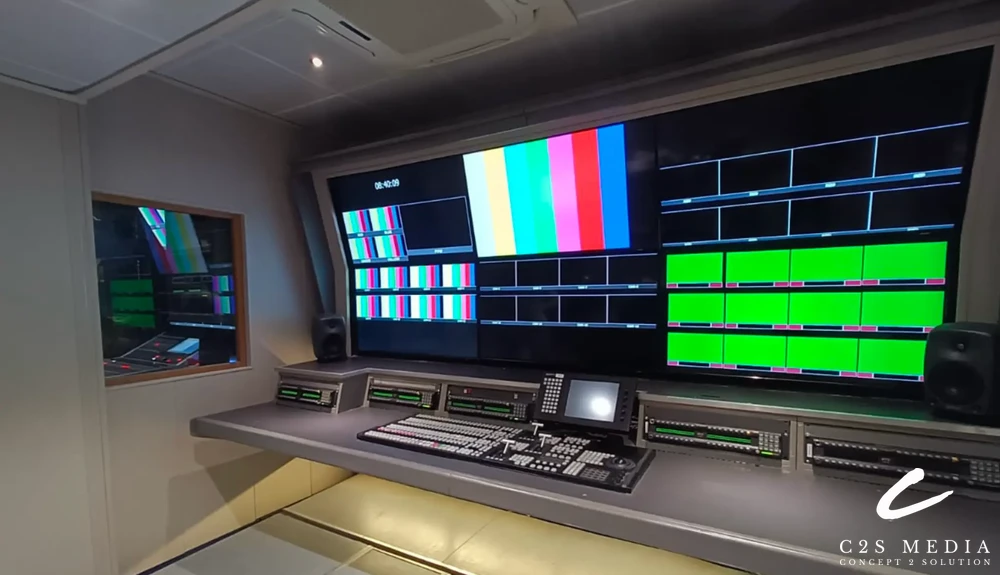

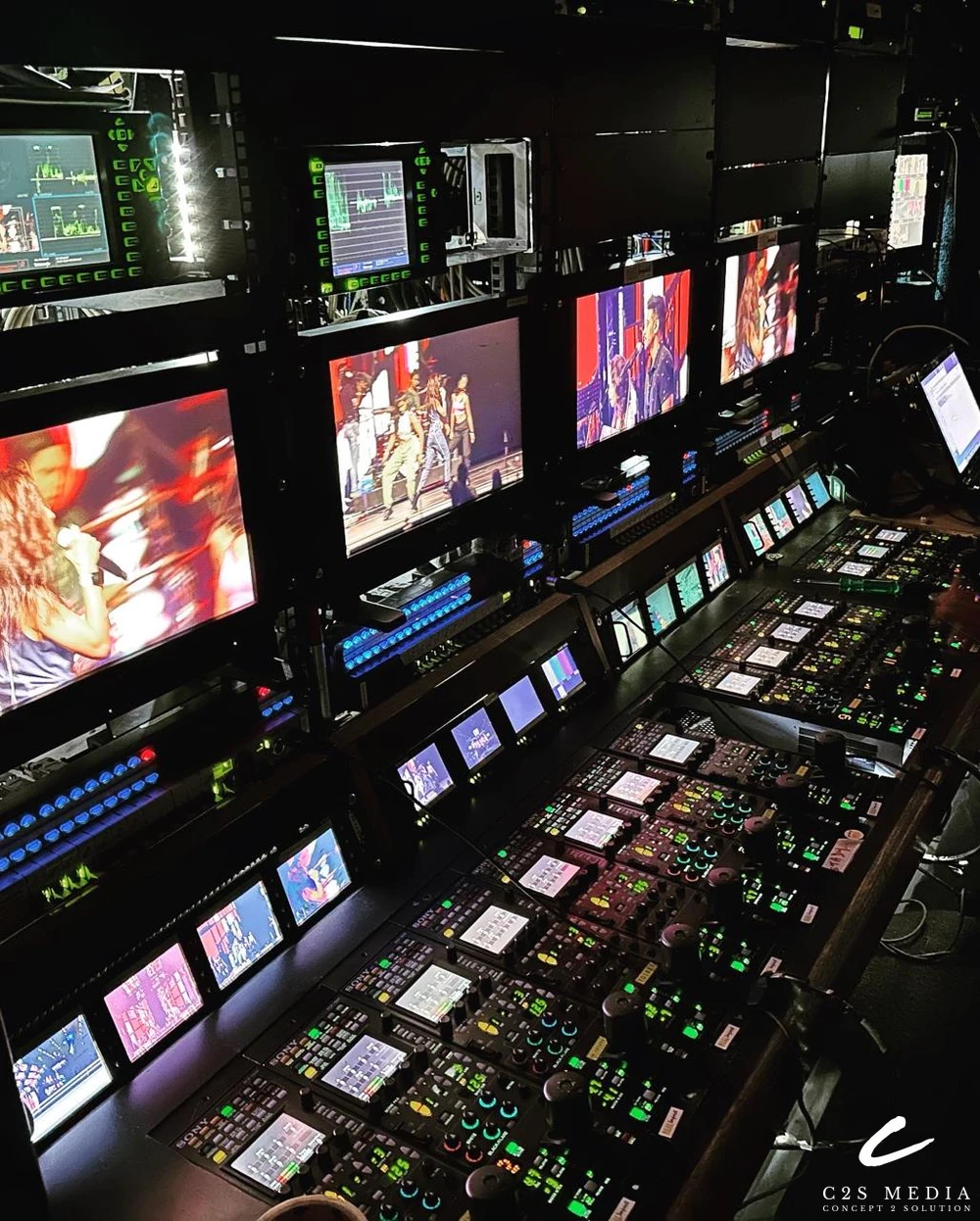

PRODUCTION ROOM/DIRECTOR

1st Rows of PCR, 4 Positions

6x SAMSUNG 42″ Flatscreen monitors with UMD’s and Multiviewer

2x GENELEC 6030B Speakers

4x RTS KP32 Comms Talkback Panel with Mic and Speakers

1x BEHRINGER Ultralink Pro 8-Channel Splitter/Mixer

1x SNELL/PRO BEL 6700 Router panel

1x SONY ICP-6530 MVS-6530’s 3M/E Switcher Panel (24 XPT)

1x SONY ICP-6511 MVS-6530’s GUI Control Panel

PRODUCTION/GRAPHICS ROOM

2nd Row of PCR 2 Positions

2x JVC 17″ HD LCD Monitor

2x SAMSUNG  24″ Flatscreen monitors

2x RTS KP32 Comms Talkback Panel with Mic and Speakers

2x SNELL/PRO BEL 6700 Router panel

VISION ROOM

1st Row of Vision 5 Positions

3x PANASONIC BT-LH-1710P 17″ HD Monitor

2x VUTRIX 17″ HD Monitor

4x MARSHALL VR44P 4×4″ Rackmount LCD HD Monitors

1x BLACKMAGIC Smart Scope Duo Dual 7″ Waveform /Vectorscope Monitor

3x TEKTRONIX WFM5000 Waveform Monitor

5x RTS KP32 Comms Talkback Panel with Mic and Speakers

5x SNELL/PRO BEL 6700 Router panel

20x BEHRINGER Ultralink Pro 8-Channel Splitter/Mixer

2x EVERTZ 7700 Glue Frames with DA’s

2x TEKTRONIX TG700 SPG

1x EVERTZ 5600 AC02 Automatic Changeover Unit

1x LEITCH FR884 Glue Frames with PAL DA’s

1x EVERTZ Time Code Master

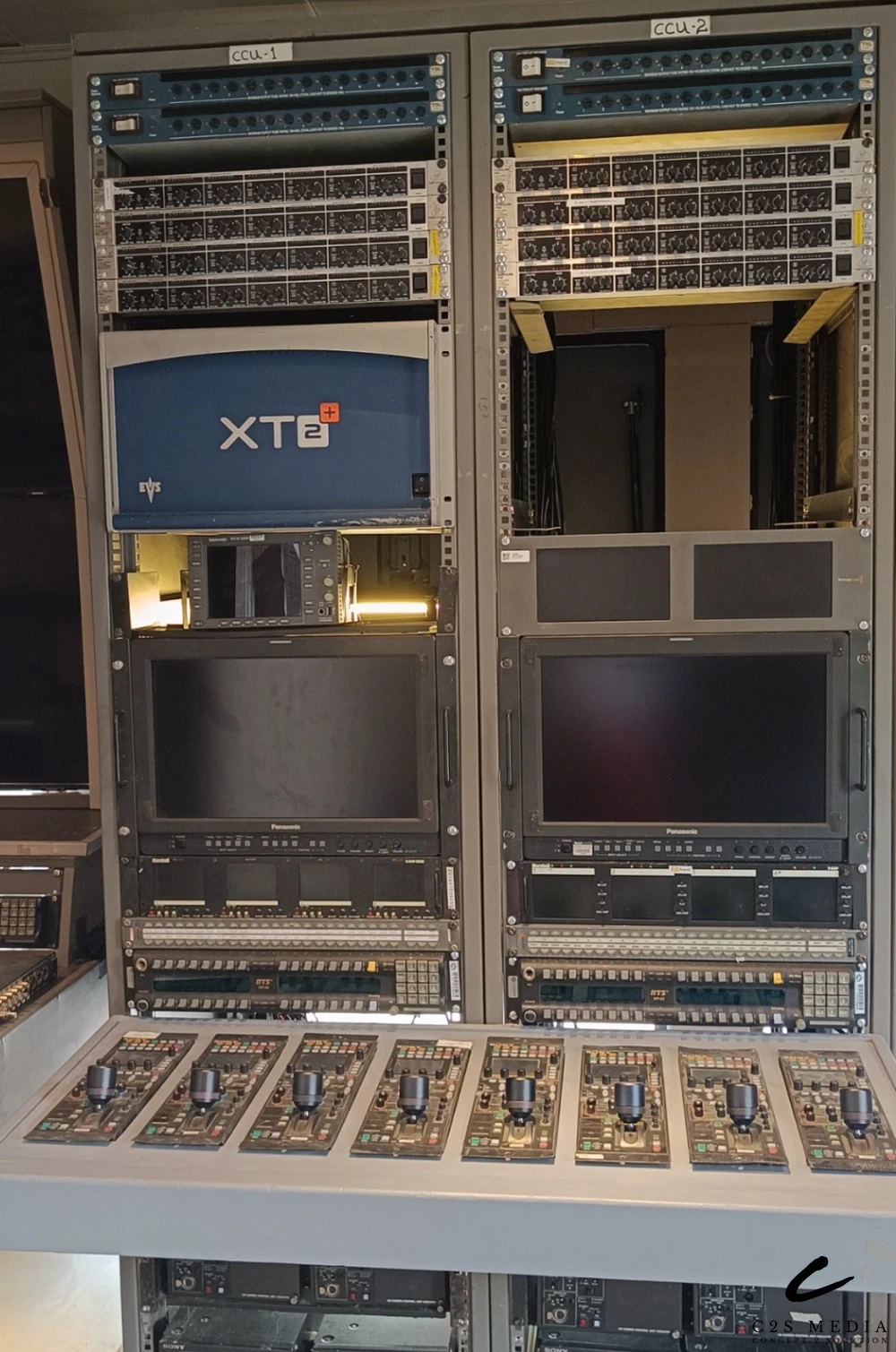

VISION/EVS ROOM

2nd Row of EVS 3 Positions

3x JVC 17″ HD Monitor

4x SAMSUNG 24″ Flatscreen monitors

2x RTS KP32 Comms Talkback Panel with Mic and Speakers

1x RTS KP12 Comms Talkback Panel with Mic and Speakers

3x WOHLER AMP1 S8 Audio Monitor

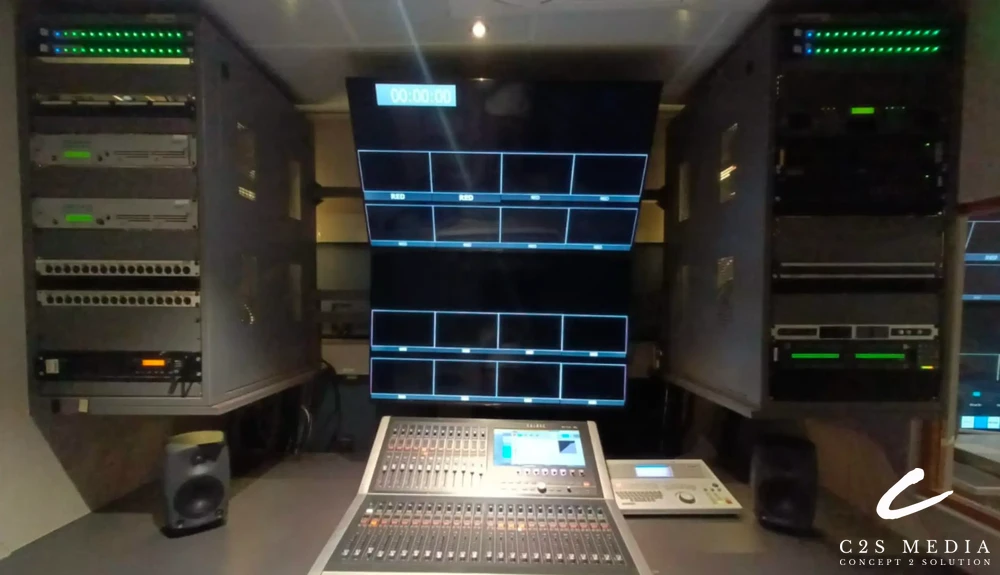

SOUND ROOM

1 Position

1x CALREC BRIO 36 Calrec Brio 36 Compact Broadcast Console

1x TSL PDU Power switch

2x RTS Telex CRONUS Talkback matrix 48 INPUT PRO DIGITAL MATRIX

2x RTS KP32 Comms Talkback Panel with Mic and Speakers

1x i-COM Walkie basestation

2x GENELEC 6030B Speakers

2x HISENSE 42″ Plasma Monitors

1x 360 SYSTEMS Instant replay Recording System

1x WOHLER AMP1 S8 Audio Monitor

2x XTA DS 800 Audio Distribution System

1x FERROFISH A-32 32 In /32 Out AD/DA MADI & ADAT Converter

5x GHIELMETTI Audio patcher

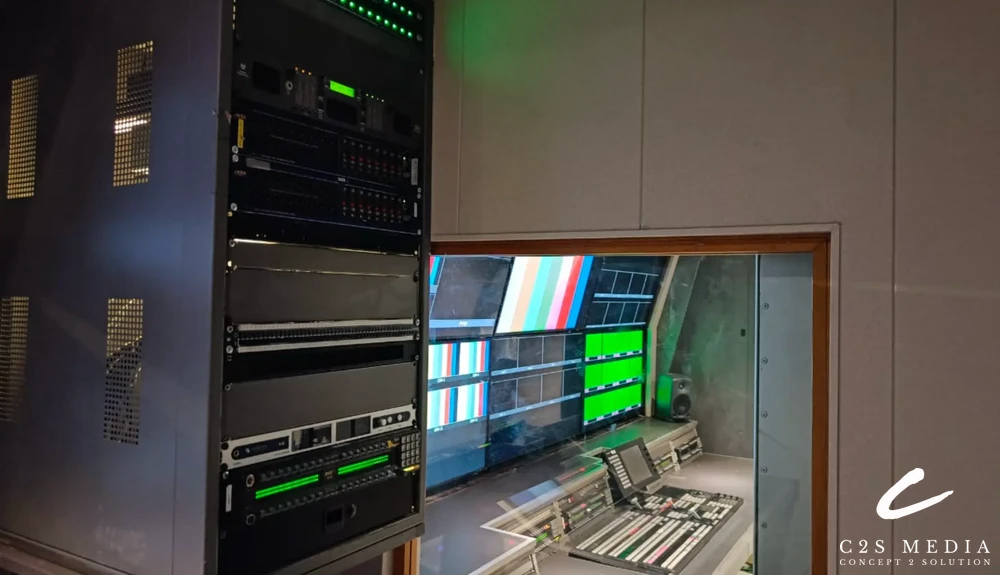

ENGINEERING ROOM

2 Positions

1x SONY MVS-6530 Video Switcher Main Frame

1x SNELL/PRO BEL SIRIUS 80×80 HD Video/Audio Router

1x WOHLER AMP1 S8 Audio Monitor

2x EVERTZ FR500 Glue Frame

1x MIRANDA DENSITE 2 Glue Frame

1x MIRANDA DENSITE 3 Glue Frame

1x TSL TALLYMAN Tallyman Controler

2x APANTAC Mi-16 MuliViewer

1x SNELL/PRO BEL X-Y Router panel

5x AJA FS-1 FRAME SYNC AND CONVERTER

1x PANASONIC BT-LH-1710P 17″ HD Monitor

1x RTS KP32 Comms Talkback Panel with Mic and Speakers

---

Donwload informations here : OB1 – 16 Camera Single Expander HD OB Trailer – C2S
