HD2-Iveco Eurocargo 6 Camera HD OB Van

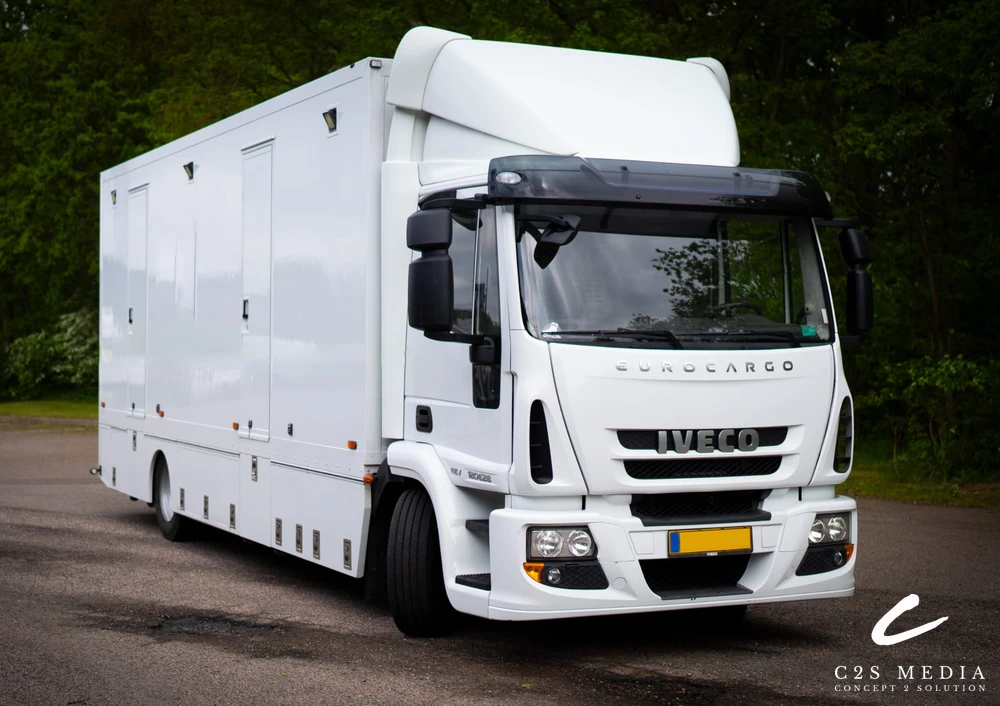

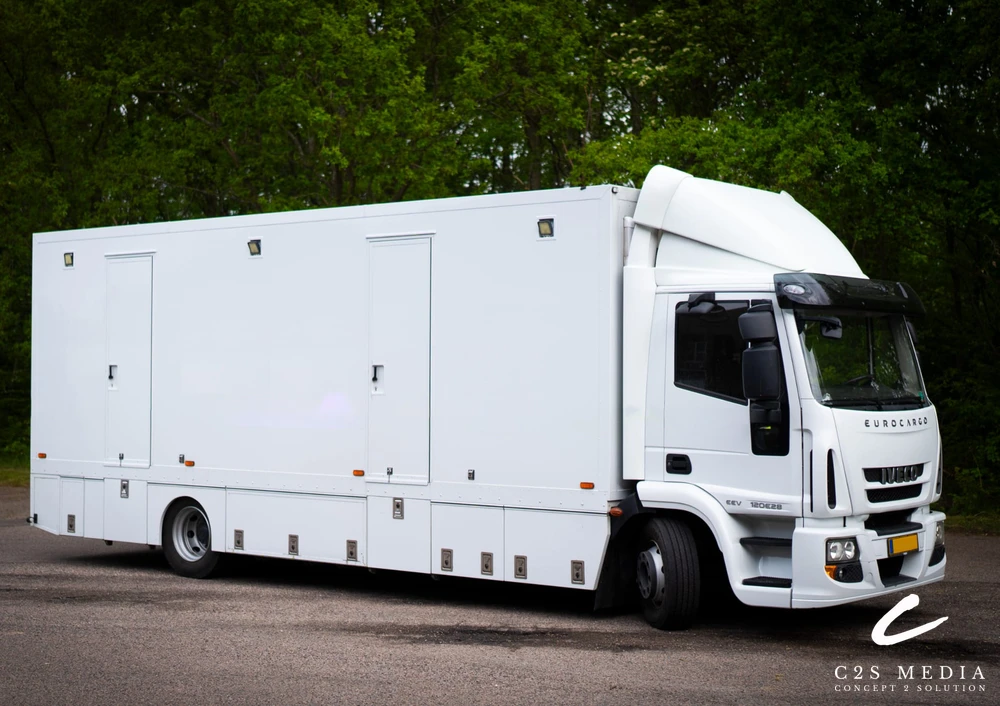

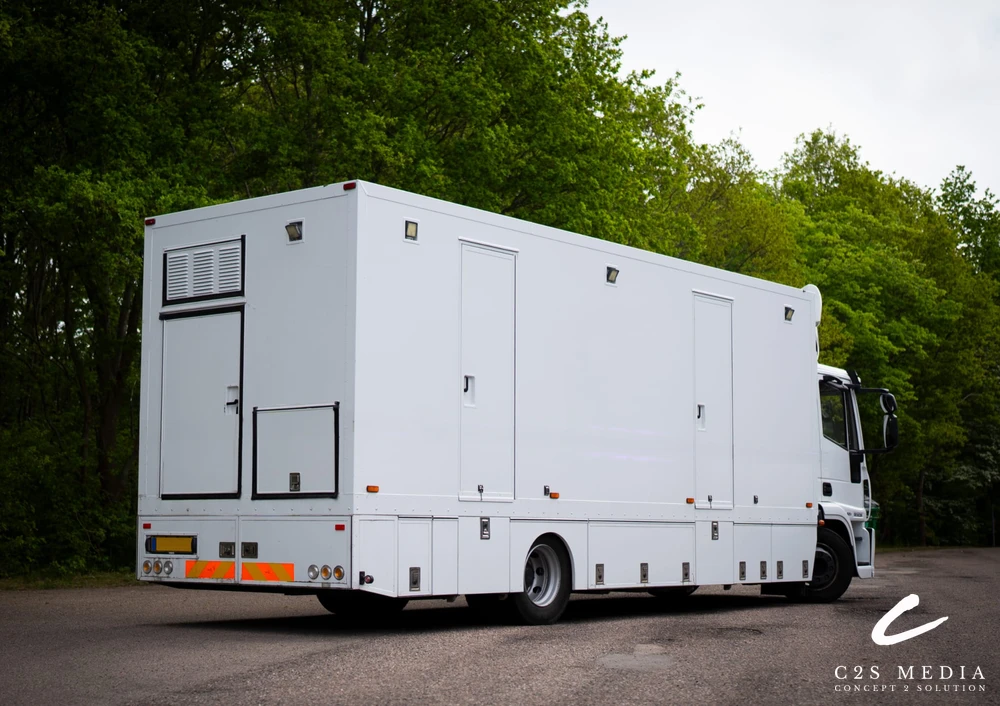

Truck:

Iveco Eurocargo,

Length: 9M

Height: 3,5M

Width: 2,5M (3,1 with stairs)

Weight total: 12 tons,

Year of Manufacture 2011

Support truck:

Scania P270,

Length: 10M

Height: 4M

Width 2,6M

Power consumption:3 x 32 amp. 400 volts

Working spaces:8 + 2 in support truck

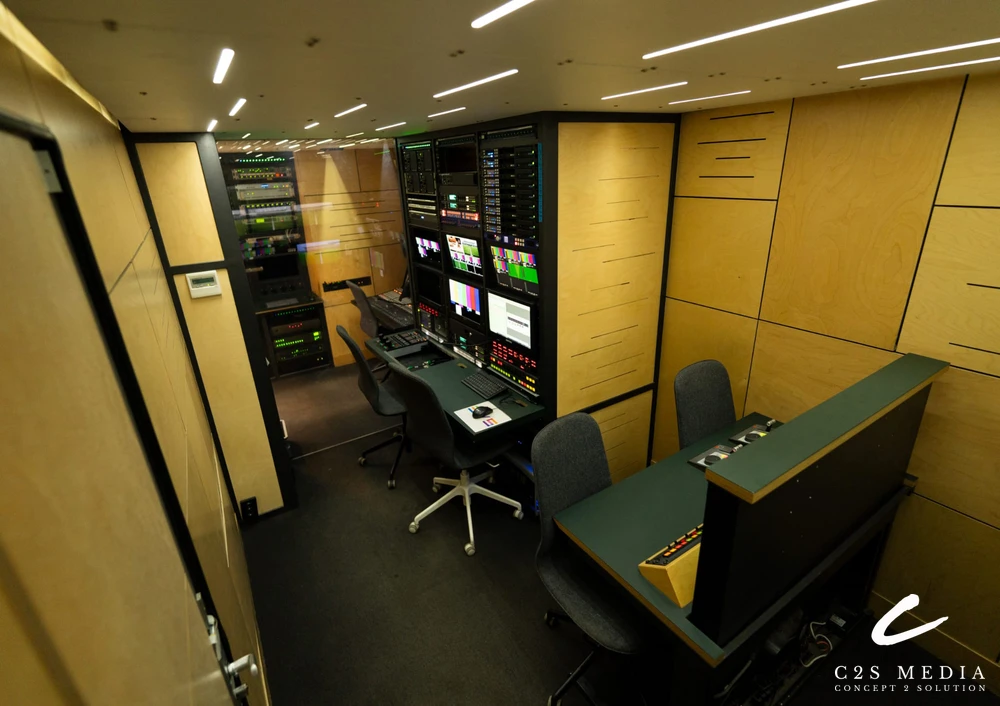

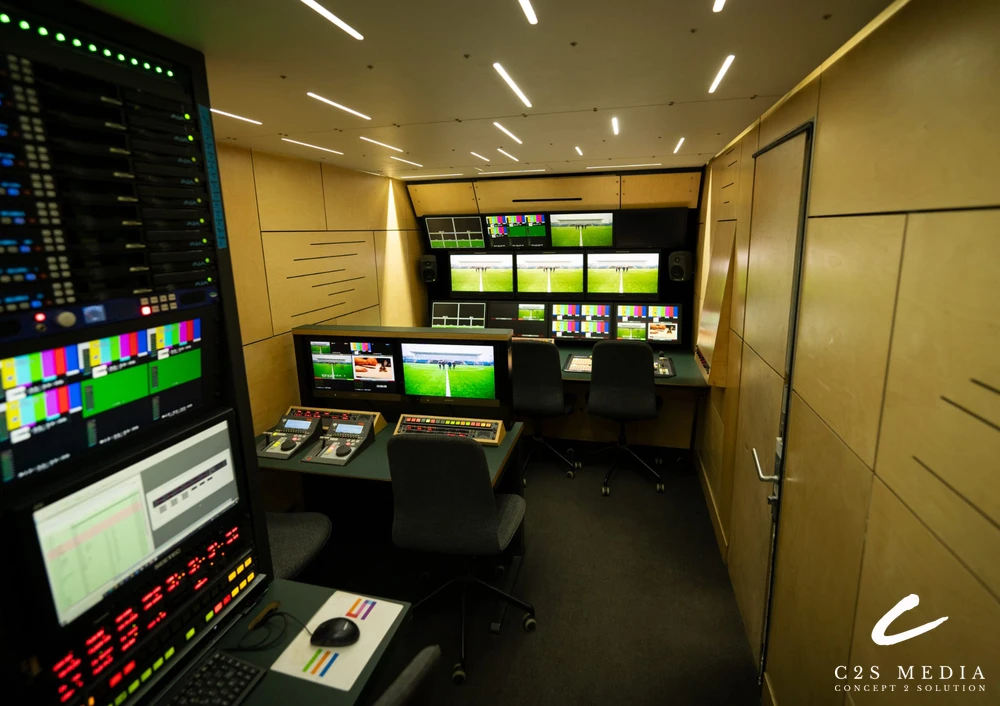

Working area:

OB truck: 11 x 3,5 metres

Support truck 12 x 3,5 metres

Cameras:

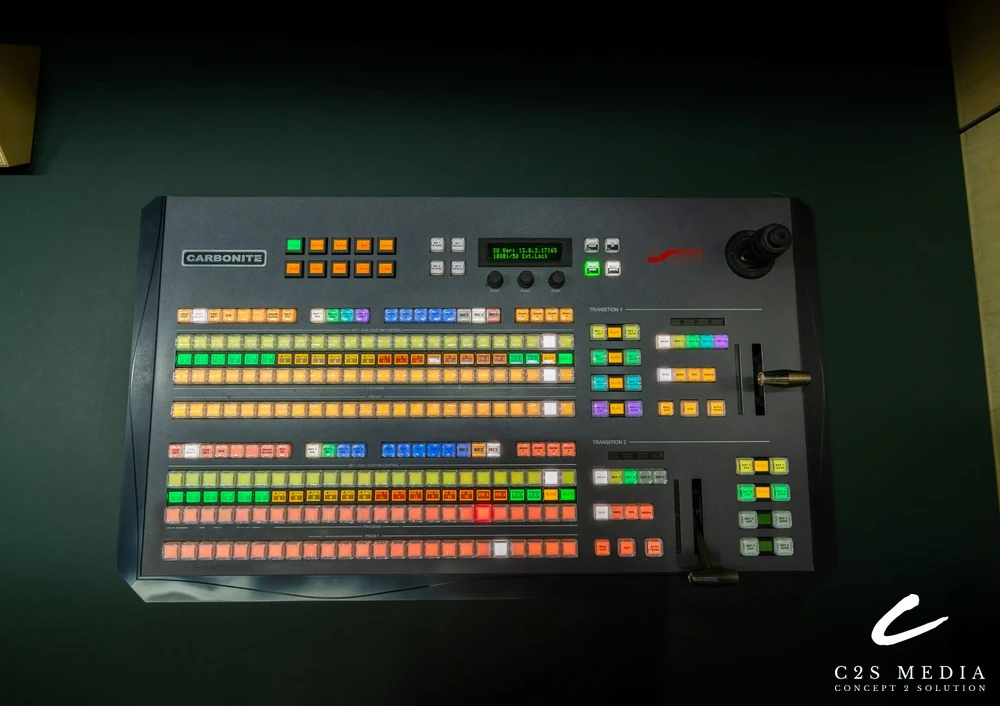

Wired for 6 fisher triax camera/Vision mixer:Ross Carbonite 24 inputs, 2 ME + 4 miniME, 12 keyers, 8 dve ́s, 4channel mediastore

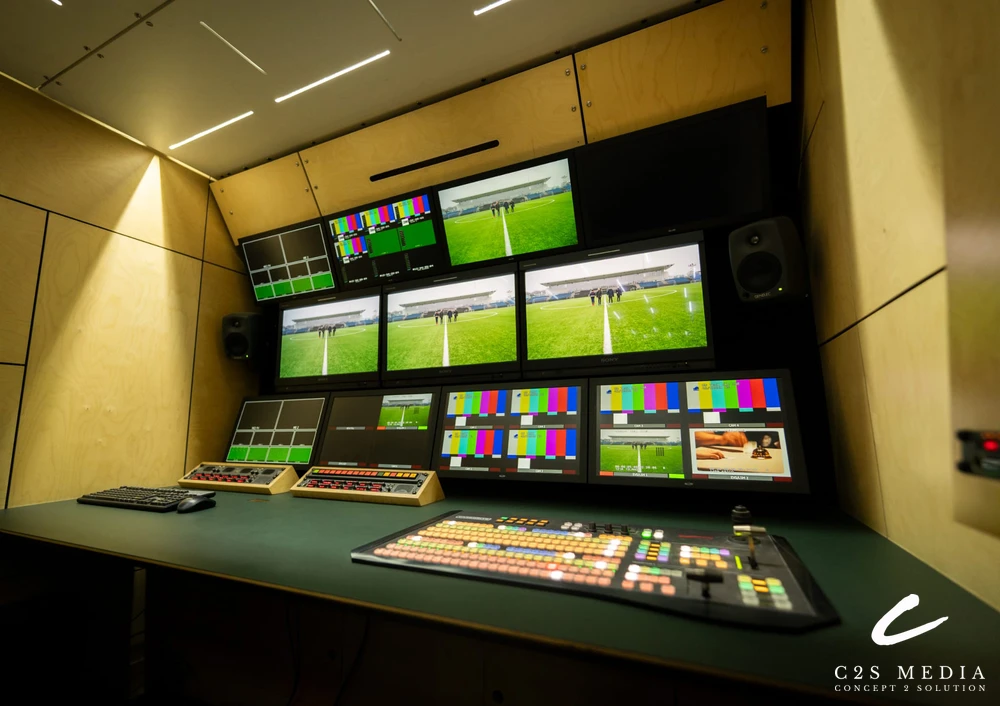

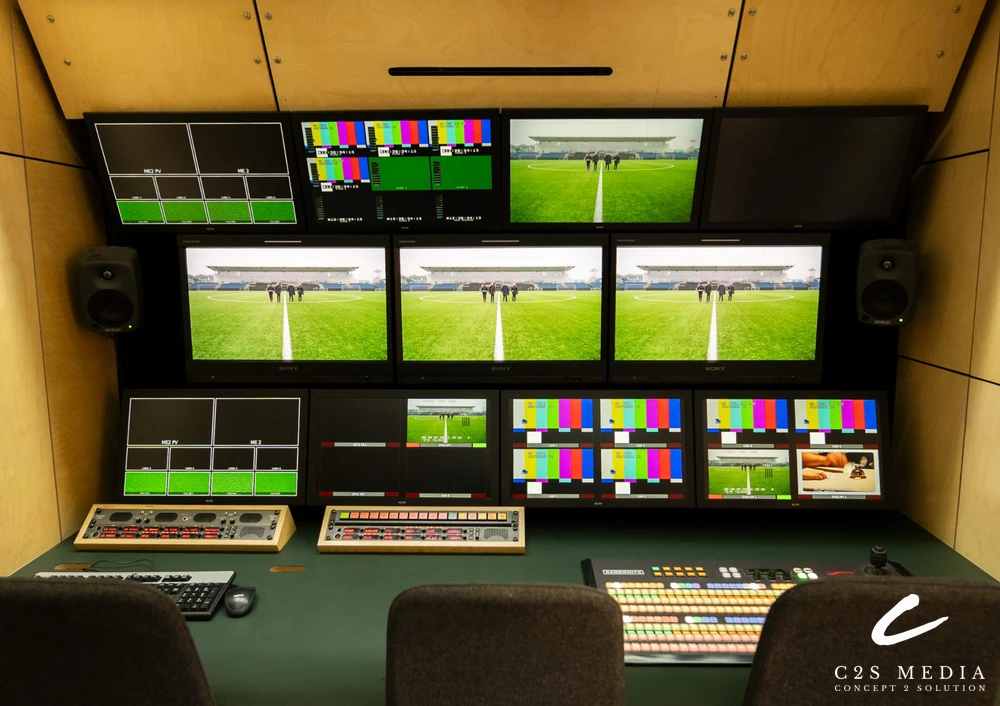

Monitor wall production: Sony PVM OLED monitors 40 PIPs on 11 monitors

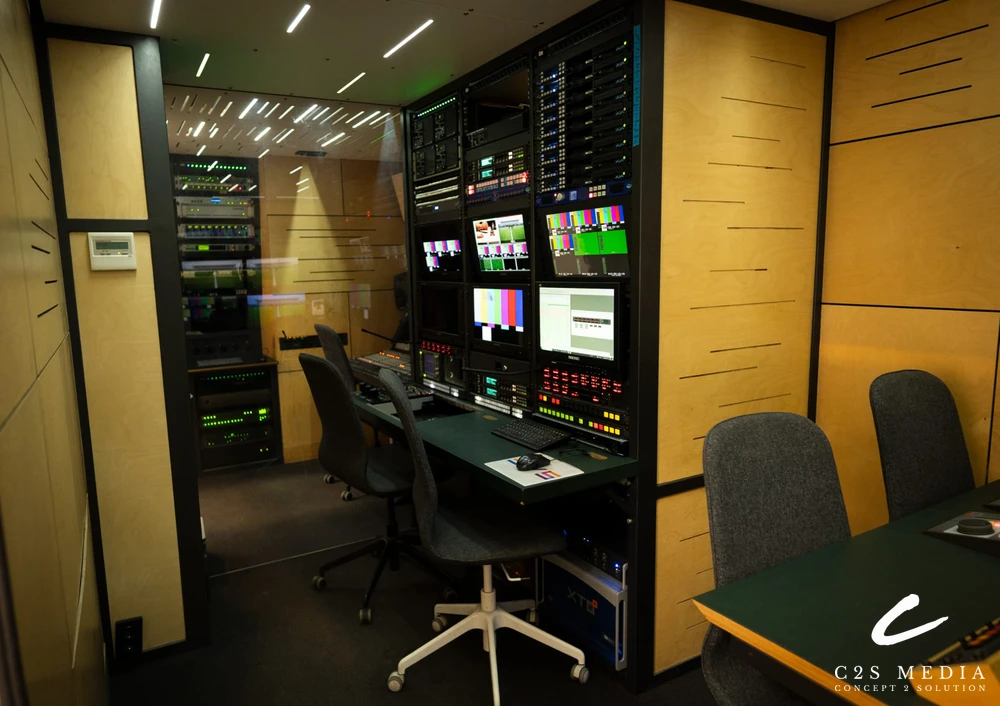

Graphics: Caspar CGReplay Servers:Wired for replay serversRecording:Wired for 8 SSD VT’sRouting/conversion/Synchronising:Lawo Vpro8, Ross 72×72 router, 2 TX, 2up/down/cross, up to 12 external inputs

Venue kit: Broaman and stageracerFibreunits for studio, transmission and commentators

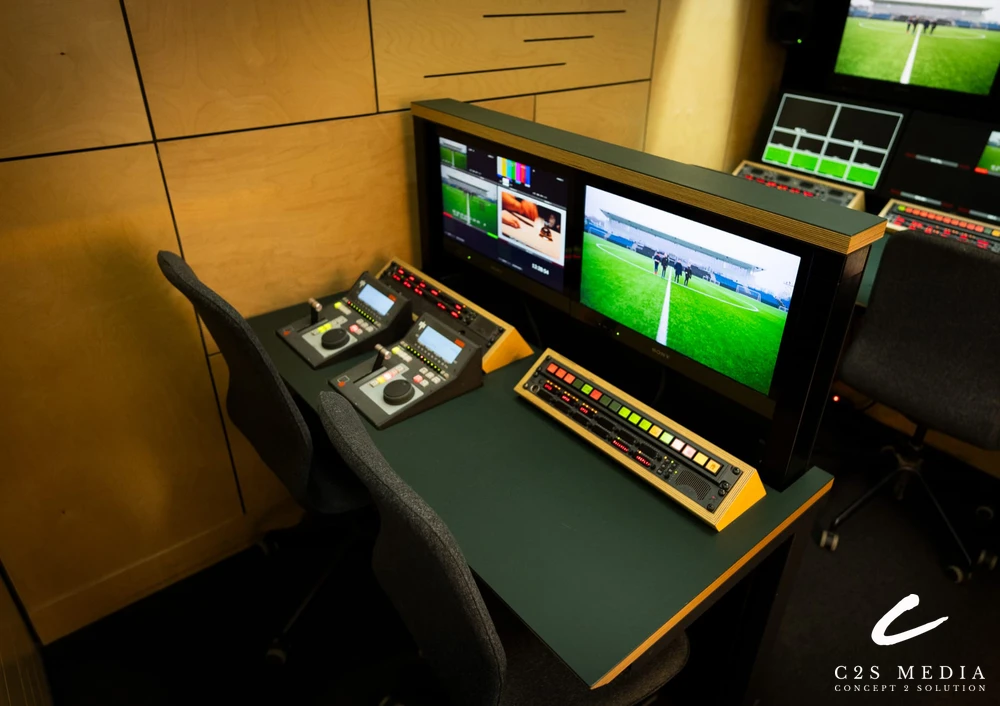

Shading: Wired for 6 RCP’s and oneMSU 1500 master setup, Sony PVMOLEDmonitors, Tectronic scopes

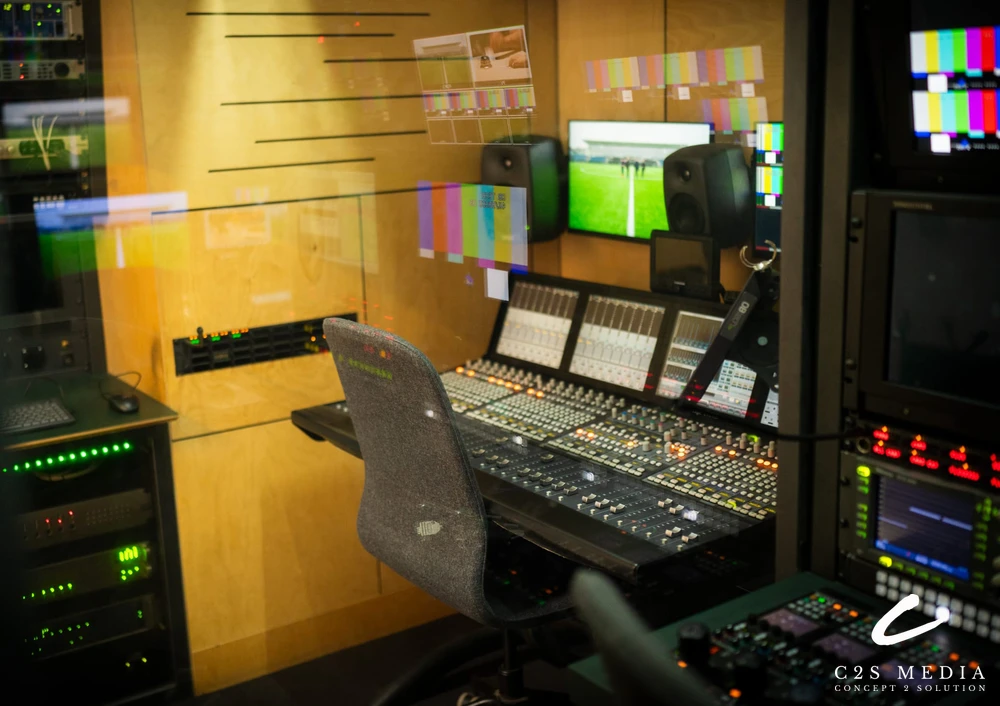

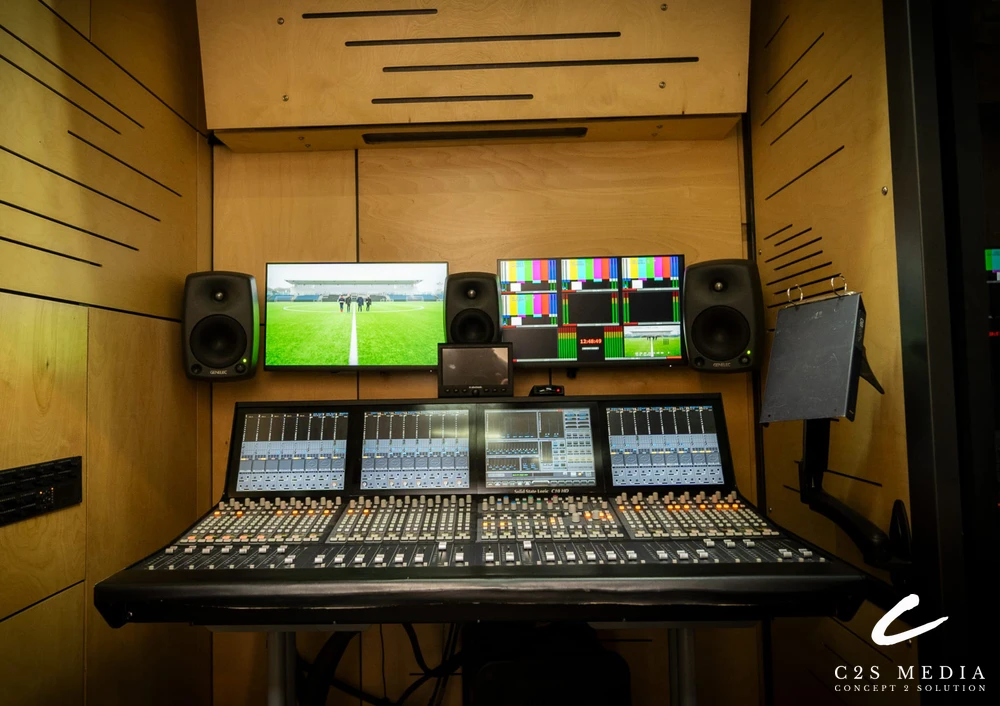

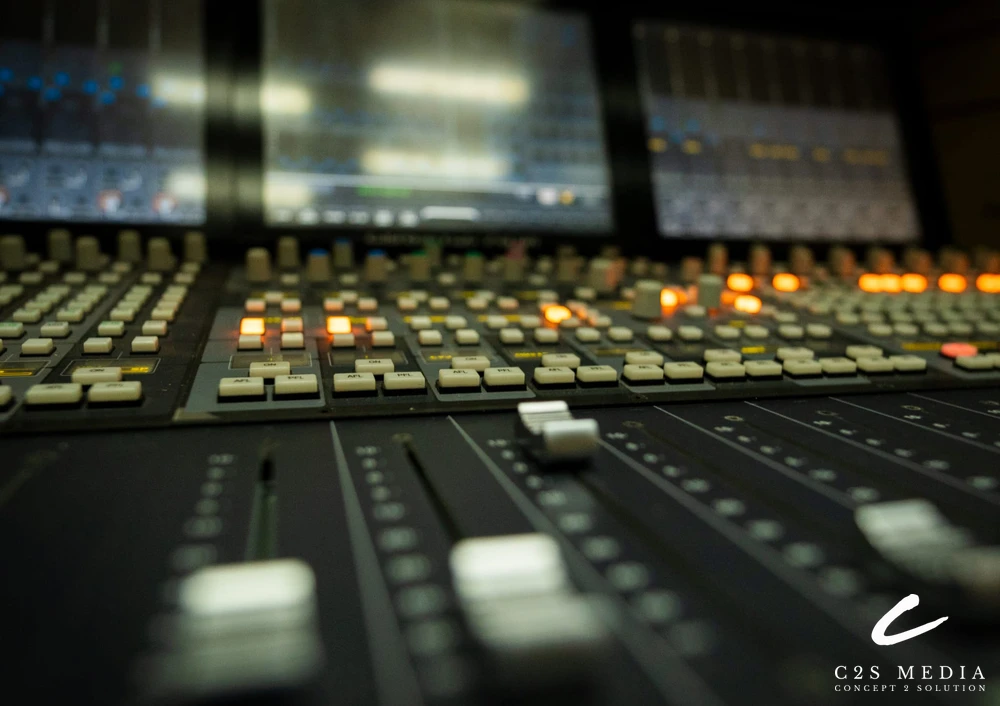

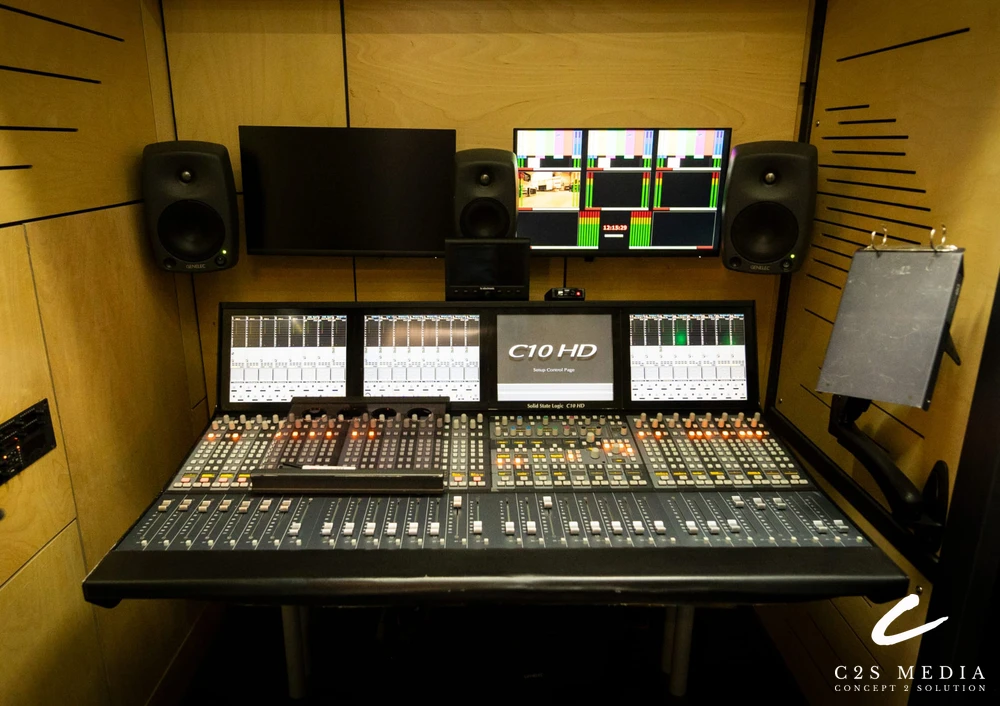

Audiomixer: Solid State Logic C 10 HD 132 channels of DSP, Build in Automix, 2stageboxes 72 inputs, 24 outputs, Cedar DNS 84 madi inputs, all effect options installed 512 x 512 audio routerMonitoring:Geneleg 5.1 setup, Sony PVM monitors

Effects: TC Electronics DB4 system, M3000, M4000, Lexicon PCM 9600Intercom:Riedel Artist 64, 9 internal panels, 8 optional external panels, optionaldesktop panels and 2 wire beltpacks for cranes, 2 Glensound GSM codecs, 1 ISDNHybrid, 2 duplex radio channels 1 simplex radio channel

Monitoring forlight:Sony PVM series Oled monitor, router panel, intercom pane
