This used double expanding OB trailer is a 13.6-metre, 24 camera-ready 1080p 3G-HD HDR unit, built in 2008 and renovated in the UK. With a Sony XVS-G1 vision mixer, a Ross Ultrix router, three EVS servers and a Lawo mc²36 audio console, it is designed for large live sport, music and entertainment productions.

OB10 – 24 CAMERA 3G HD DOUBLE EXPANDING OB TRAILER

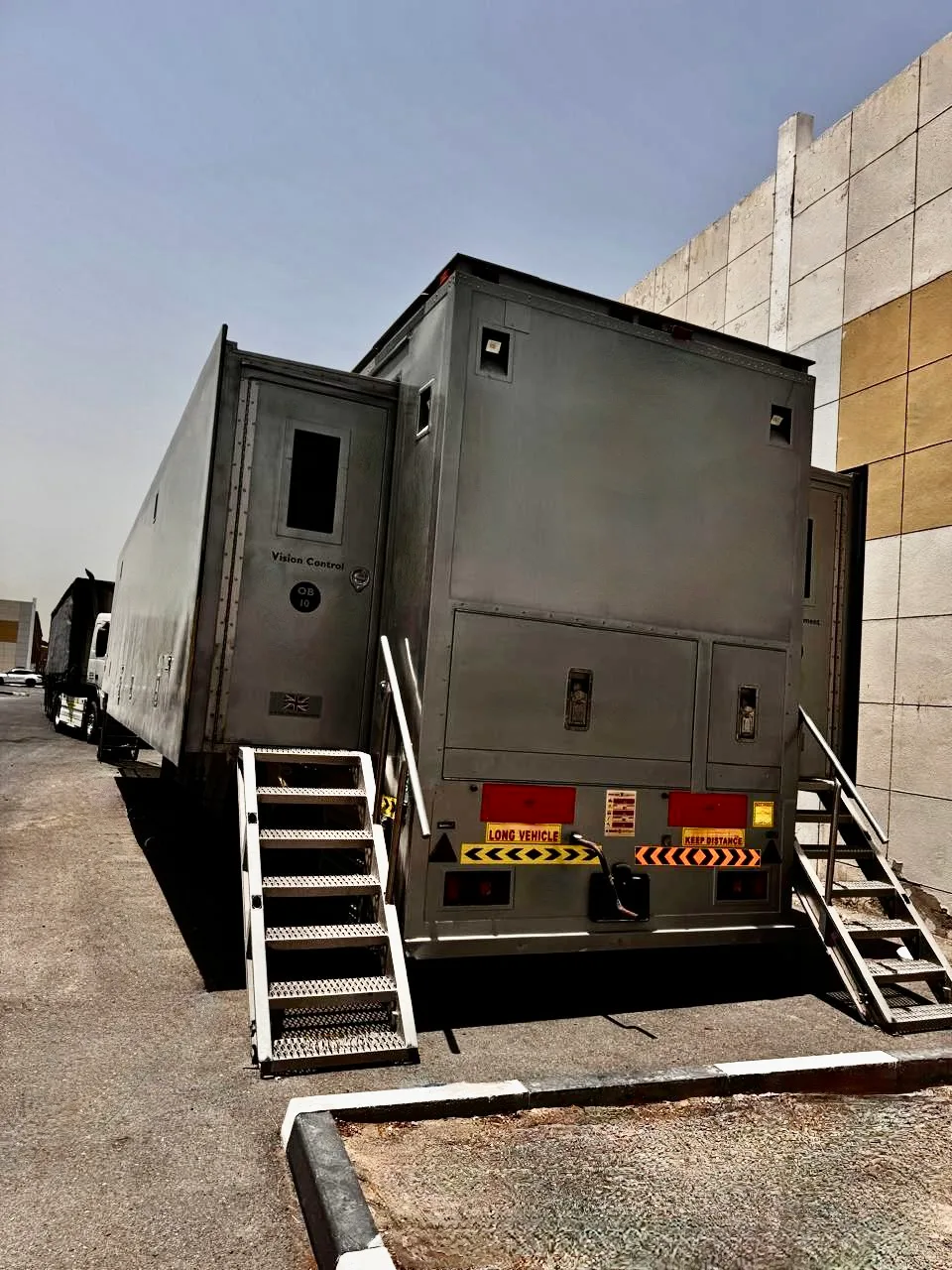

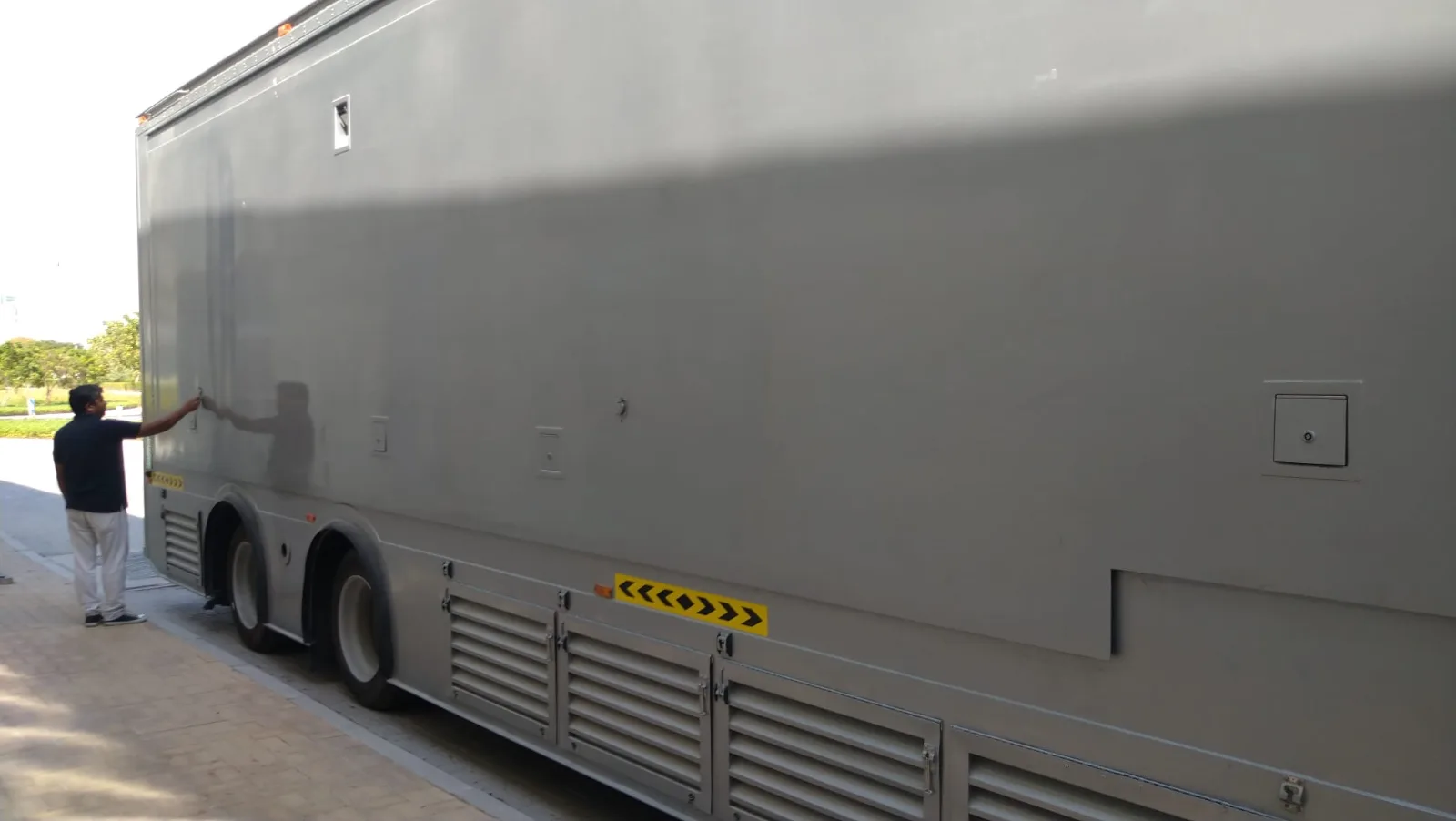

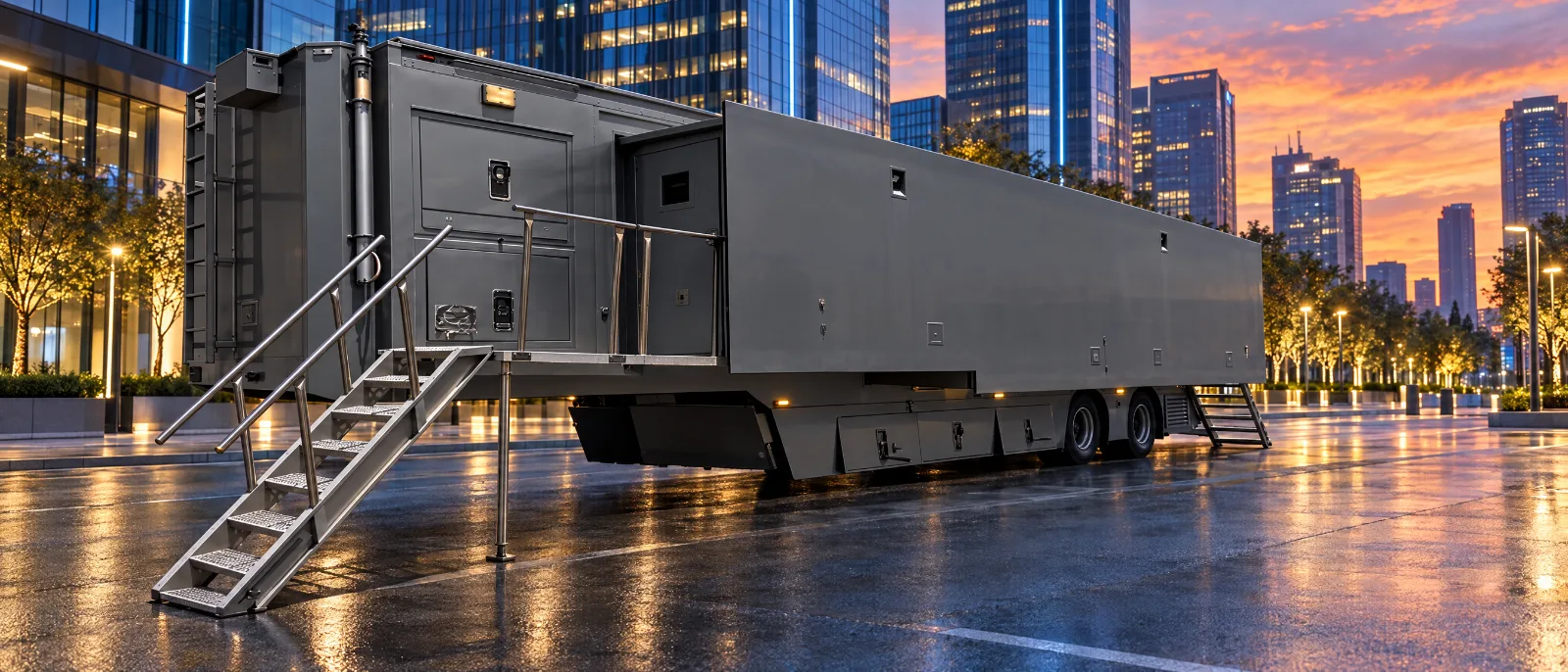

DOUBLE EXPANDING OB TRAILER DETAILS

• Type: double expanding semi-trailer – semi-trailer only, tractor unit not included
• Size: 13.6 m L x 2.55 m W x 4 m H
• Total weight: 25 tonnes
• Built in 2008 – renovated in the UK
• Areas: Sound / Production / Vision & VT
• Power: 2 x 3-phase distribution racks (36 MCBs), 1 x single-phase rack (12 MCBs), APC 20 kVA UPS, 25 m 16 mm² 3-phase cable

OB TRAILER MAXIMUM CAPABILITY

• Up to 24 camera chains (camera-ready – cameras and CCUs not included)
• Format: 1080p 3G-HD, HDR
• 3 x EVS servers – 5 LSM operator positions
• 15 intercom keypanels

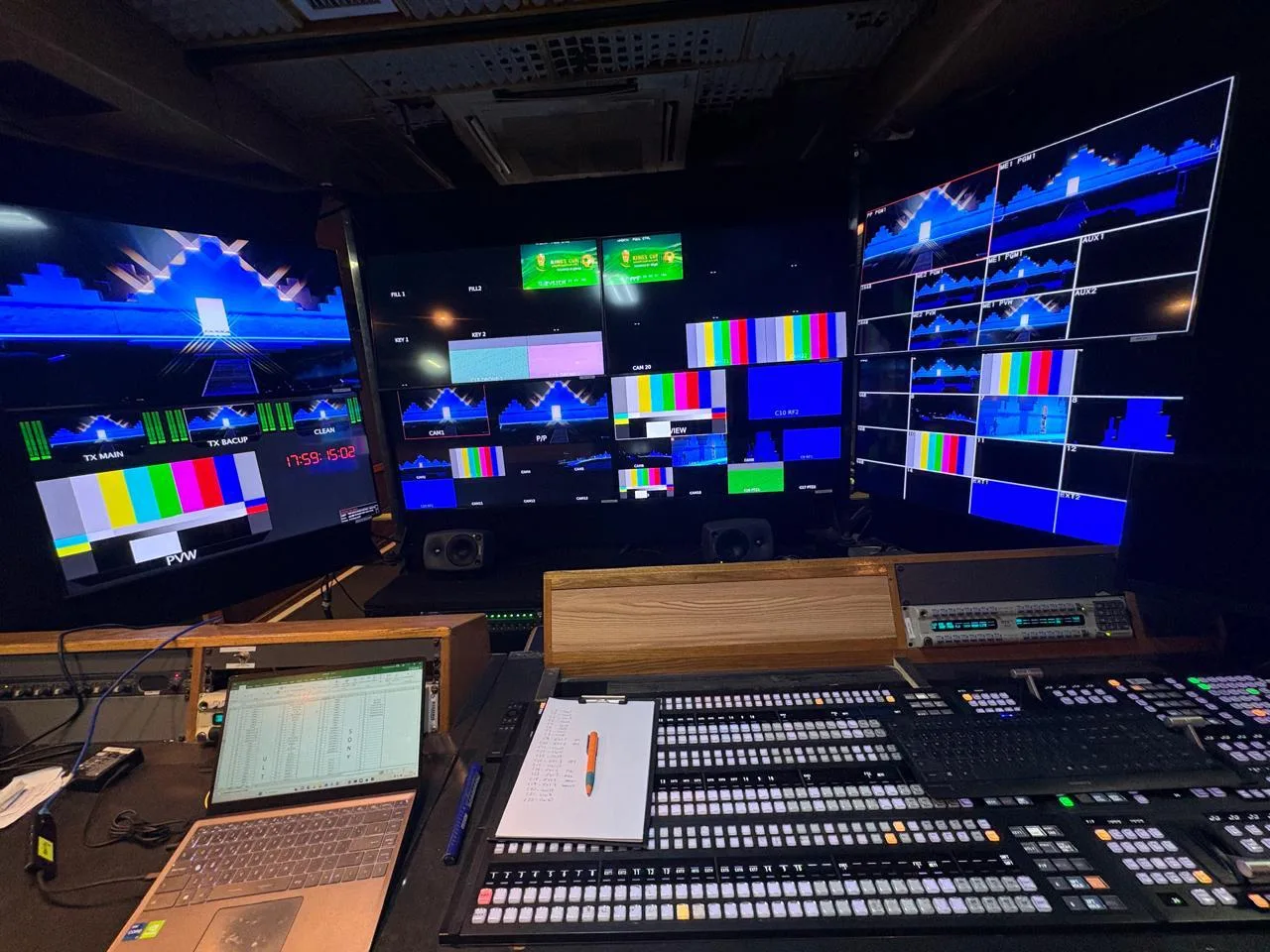

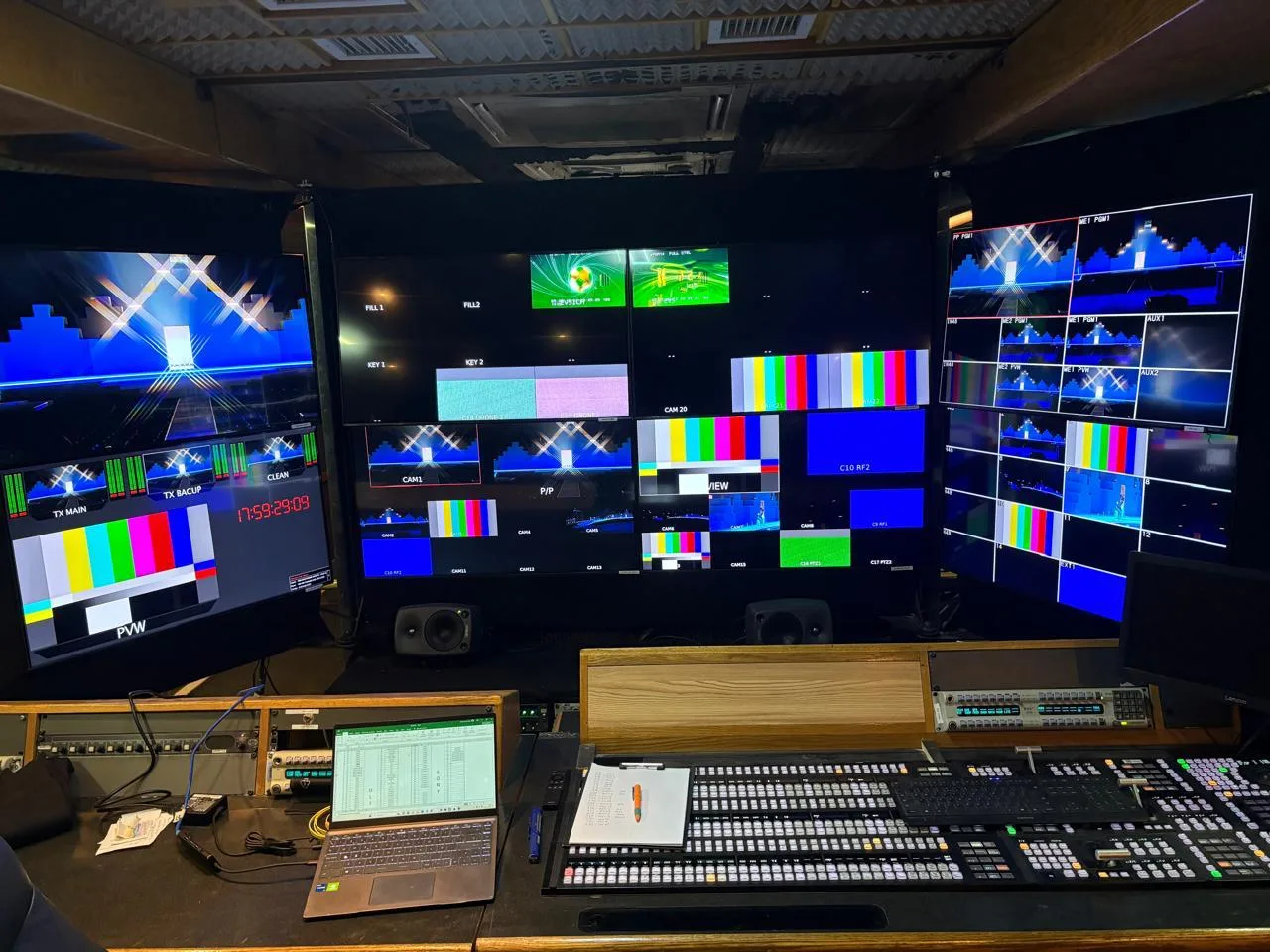

PRODUCTION & VISION MIXER

• Vision mixer: Sony XVS-G1, 3 M/E, with frame store
• Backup vision mixer: For-A HVS-110

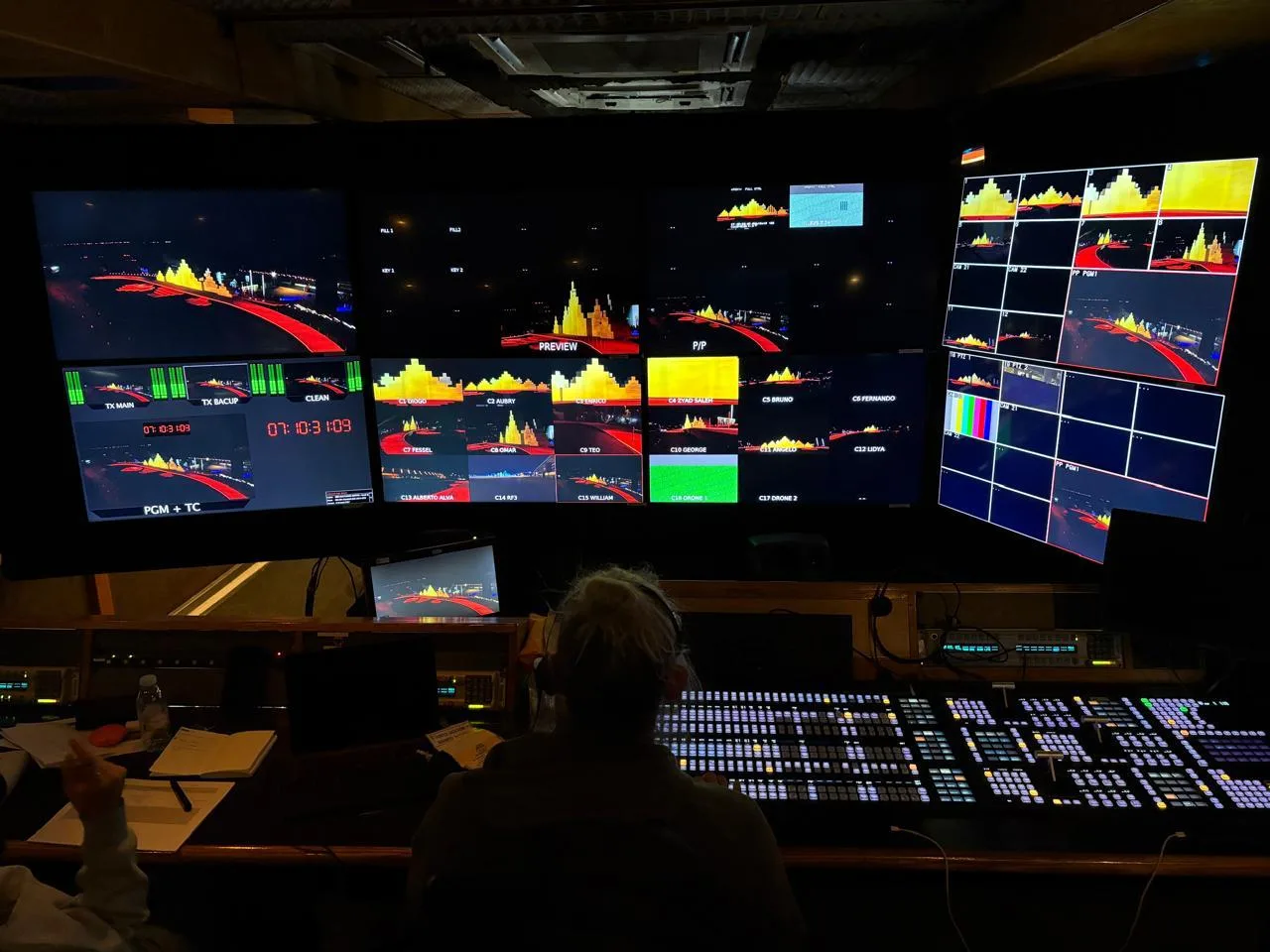

• Production wall: 6 x Panasonic 50″ LH-series screens via multiviewers
• Router backup panel: Ross RCP-ME (48 buttons)
• Director talkback: Telex KP-32 – VM and producer: 2 x Telex KP-12

LIVE SLOW MOTION & RECORDING

• 3 x EVS XT ChannelMax, 12 channels each
• 5 x EVS LSM remote controllers
• 5 x Wohler VMQ-4 audio monitoring units, 5 x Ross RCP-ME router panels, 5 x Panasonic 50″ screens
• 2 x Blackmagic HyperDeck SSD recorders

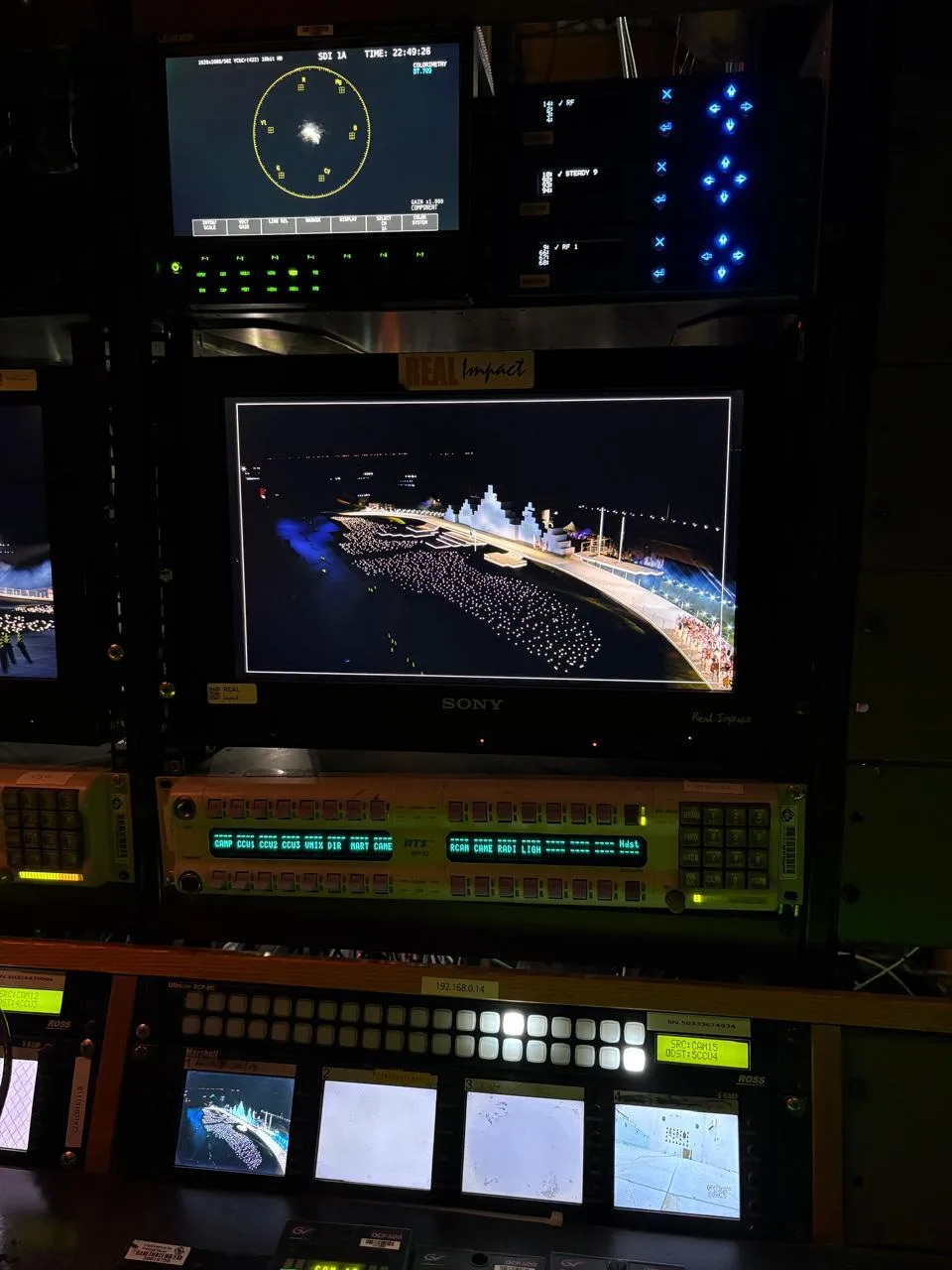

VIDEO ROUTING, MONITORING & DISTRIBUTION

• Router: Ross Ultrix 96 x 96
• Multiviewers: 2 x Apantac / Ultrix MI-16 (main wall and EVS)
• Vision racks with 3G-SDI monitors, waveform monitors, talkback panels and router touch-downs
• Sony LMD-A170 17″ 3G-SDI monitor – TallyMan TM-2 tally system
• 10 x Miranda XVP-3901 frame synchronisers with colour correction
• 30 x Ross HDA-1931 3G-SDI distribution amplifiers, 10 x Miranda VDA-1002, 4 x Miranda AMX-1881 3G AES embedders
• Sync: 2 x Tektronix TG700 with ECO 422 changeover – Evertz 9010 timecode generator

AUDIO

• Audio console: Lawo mc²36
• RME ADI-6432 MADI / AES converter (64 channels)
• Monitoring: 4 x Genelec 8030, Yamaha MSP3 pre-listen speakers
• 2 x XTA DS800 distribution, 360 Systems Instant Replay
• Audio room: 2 x Apantac MI-16 multiviewers, 2 x Panasonic 50″ screens

COMMUNICATIONS & COMMENTARY

• Intercom matrix: ADAM, 64 ports
• 15 x Telex KP-32 / KP-12 keypanels with PH88R headsets
• Motorola duplex base station and 10 two-way radios
• Commentary: Glensound GS-CU001B, 2 x Sony LMD-B170, 3 x Coles 4104 lip mics, 3 x RTS CES-2 earpieces

Download the technical sheet here: OB10 – 24 Camera 3G HD Double Expanding OB Trailer – C2S

Why choose this used double expanding OB trailer?

The OB10 combines a full 3G-HD HDR infrastructure with a generous layout: separate sound, production and vision/VT areas, five EVS operator positions and a 15-position intercom system. As a result, it can handle major live events with up to 24 cameras, while the renovated UK build reduces the time needed to go on air.

C2S Media supplies, renovates and integrates OB vans and trailers for broadcasters and production companies across Europe, Africa and the Middle East. To compare options, browse our other used OB vehicles, or contact us for a quote.
