This used 12 camera OB trailer is a 16.6-metre HD outside broadcast unit, fully renovated and resprayed in 2025. It supports 12 Sony HDC-1500, HDC-2500 or HDC-3300 camera channels, together with 3 eight-channel EVS positions and 6 VTR positions. As a result, the OB3 suits football, multi-sport events and large live shows.

12 CAMERA HD OB TRAILER

VEHICLE

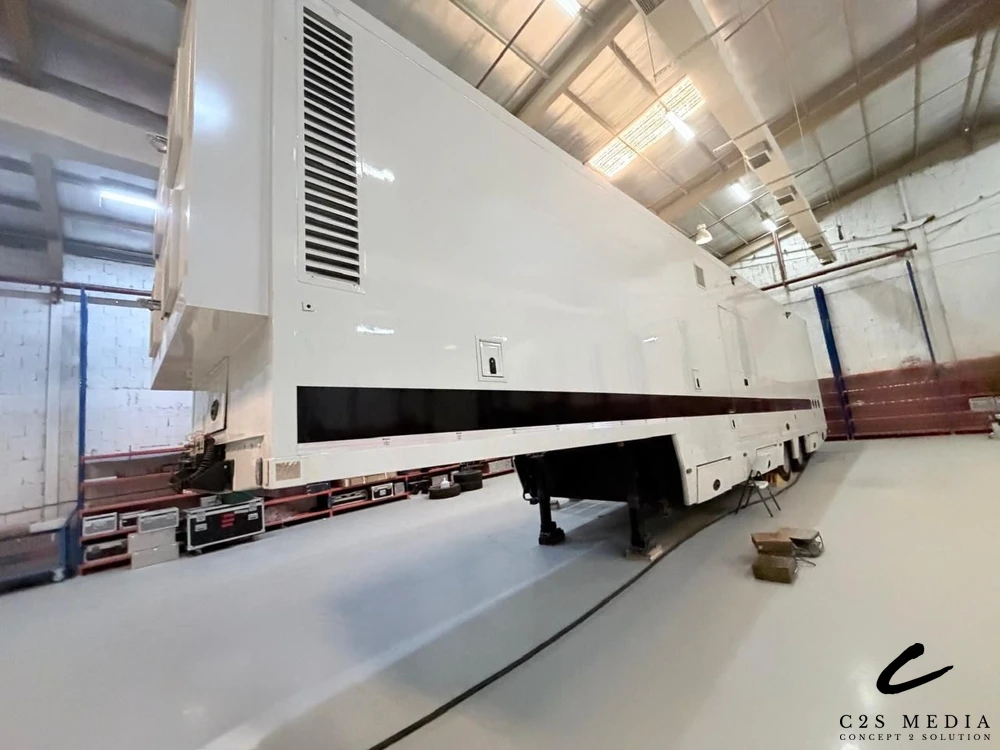

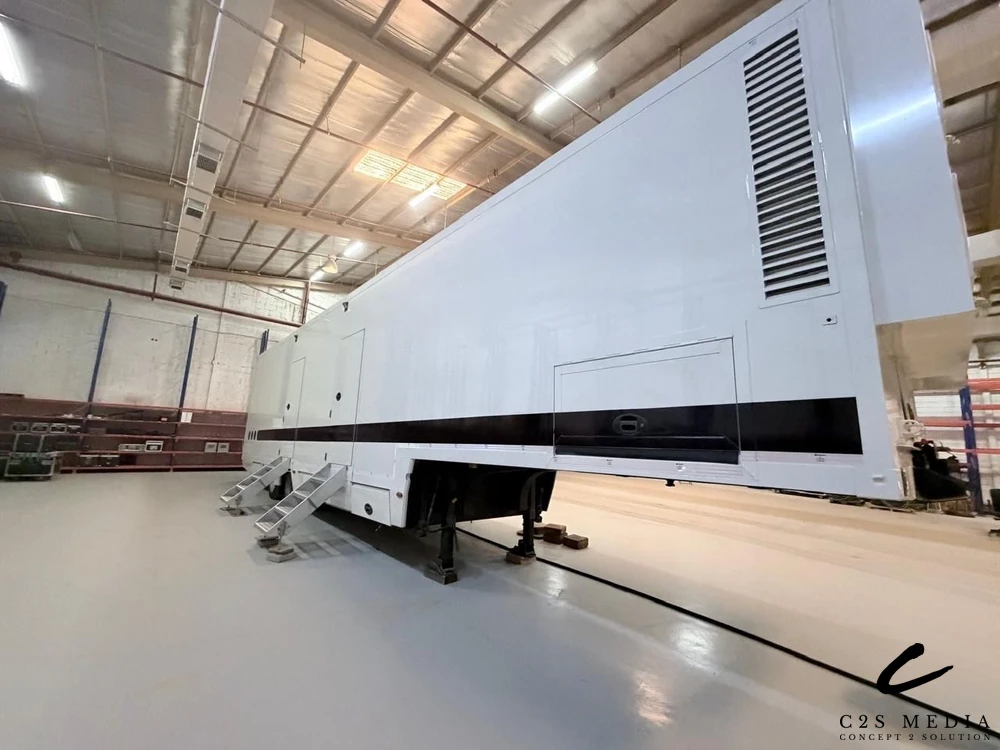

• 16.6M HD OUTSIDE BROADCAST OB TRAILER – Trailer Size: 16.6M L x 2.6M W x 3.8M H
• Fully Renovated and Resprayed in 2025

BUILDER

• Power – 380-415v 3 Phase 1 x 63a
• 5x integrated air conditioning units

PRODUCTION

• Grass Valley – Kahuna – 48 INPUTS 2ME HD VISION MIXER
• FLAT SCREENS – 80 PIPs HD Production Monitor Wall

SOUND

• Calrec – Artemis – 120 Analogue Inputs 80 Output, 64 AES I/O , MADI, Hydra , 40 Feders, 12 Layers, 5.1 Audio, H20 Core
• RTS – CRONUS – 64 INPUT PRO DIGITAL TALKBACK SYSTEM

ENGINEERING

• IMAGINE – Platinum – 104×176 3G HD ROUTER MAINFRAME WITH 2x 32×6 + 1x 16×3 MULTIVIEWER
• IMAGINE – CP-2048E – XY PANEL
• IMAGINE – CP-3201E – XY PANEL
• 4 x AXSON – Synapse – Glue Frames with HD DA’s, EMB, EMBEDERS, U/D CONVERTORS, FYSNC, VDA’s, SD-DA
• LAWO – V_PRO8 – 8-channel video processing toolkit
• 2x SPG – SPG + CHANGEOVER

CAPABILITY

• 12 x Sony HDC-1500/2500/3300 Camera Channels
• 9 x Frame syncs with cross-conversion for external sources
• 5 Production Sections – Main Production 5 position, 2nd Production/VT 4 position, Vision 3 position, EIC 1 Position, Audio 1 Position

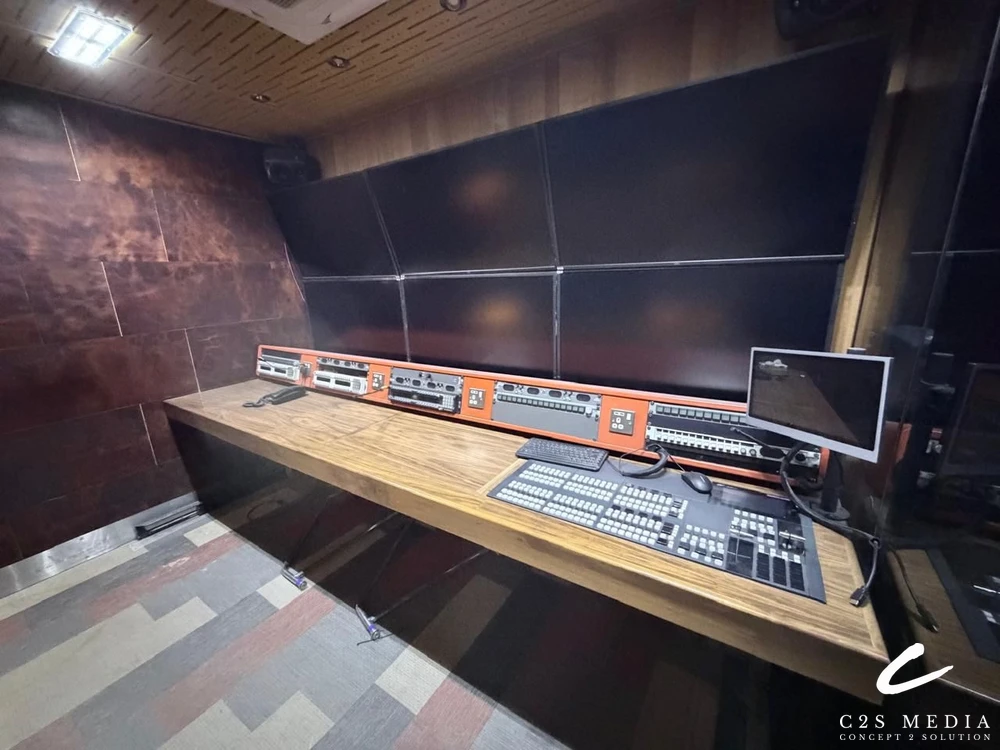

• Grass Valley – Kahuna – 48 INPUTS 2ME HD VISION MIXER
• 10 x 55” flatscreen monitor stack with up to 80 individual source monitors – 55 INCH FLAT SCREENS AND MULTIVIEWERS
• 9 x 17” Monitors – VISION and EIC positions

PRODUCTION

• 1 Rows of production benches 5 Position
• 6 x NEC 55” flatscreen monitor stack – NEC – 55″ Flatscreen monitors with UMD’s and Multiviewer
• IMAGINE – PX-SXP-32×6 – 3G/HD/SD MULTIVIEWER 80 INPUT
• 3x EVS – CEREBRUM – ROUTER PANEL
• 1x RTS – KP-12 – TALK BACK PANEL
• 3x RTS – KP-32 – TALK BACK PANEL
• 3x – AUDIO MONITORING SPEAKER
• 2x GENELEC – 8010 – SPEAKERS

EVS/VTR

• 3 x 8 channel EVS positions, capasity up to 30 channels , 6 x VTR positions
• Space for 4 operators
• 4 x 55” flatscreen monitor stack – 55 INCH FLAT SCREENS AND MULTIVIEWERS
• 3x EVS – CEREBRUM – ROUTER PANEL
• 2x RTS – KP-12 – TALK BACK PANEL
• 1x RTS – KP-32 – TALK BACK PANEL
• 3x – AUDIO MONITORING SPEAKER
• 2x GENELEC – 8010 – SPEAKERS

SOUND

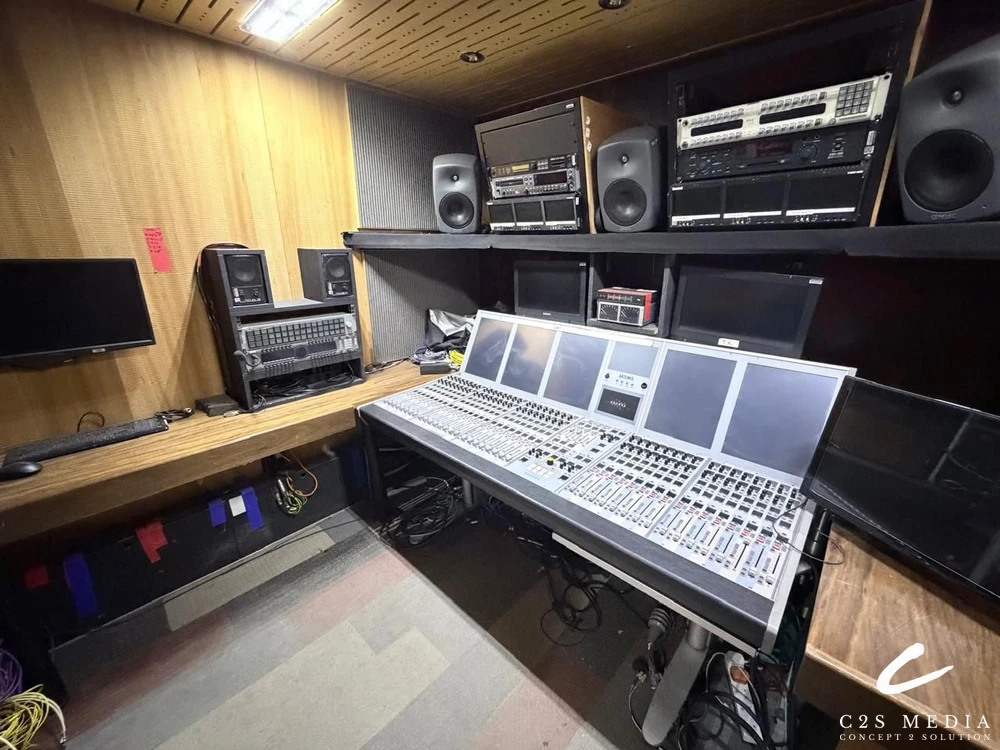

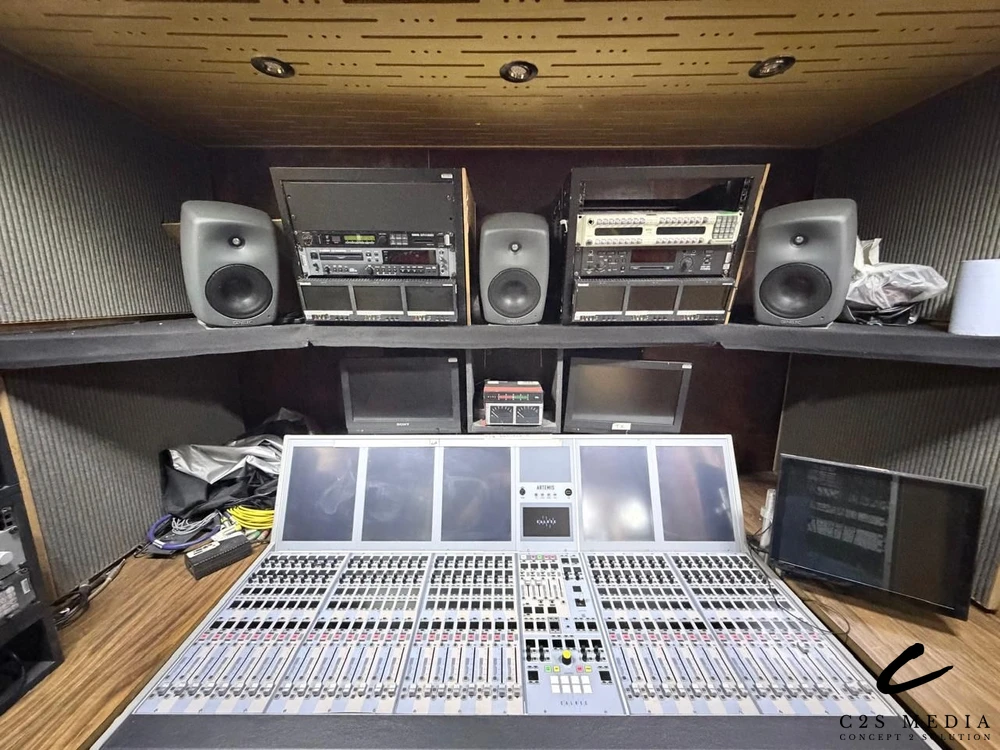

• Calrec – Artemis – 120 Analogue Inputs 80 Output, 64 AES I/O , MADI, Hydra , 40 Feders, 12 Layers, 5.1 Audio, H20 Core
• Calrec – Hydra – Digital Audio Network
• 2 x Sony – 17″ GARDE A MONITOR
• 2 x Marshal – V-R653P HD-SDI – 3x 6.5″ RACK MOUNT HD-SD MONITORS
• 1x EVS – CEREBRUM – ROUTER PANEL
• RTS Telex – CRONUS – Talkback matrix 64 INPUT PRO DIGITAL MATRIX
• 2x RTS – KP-32 – TALK BACK PANEL
• 3 x Radio Talkback base stations
• 2x TASCAM – CD PLAYER
• 3x GENELEC – 8020 – SPEAKERS
• 2x GENELEC – 630B – SPEAKERS

ENGINEERING

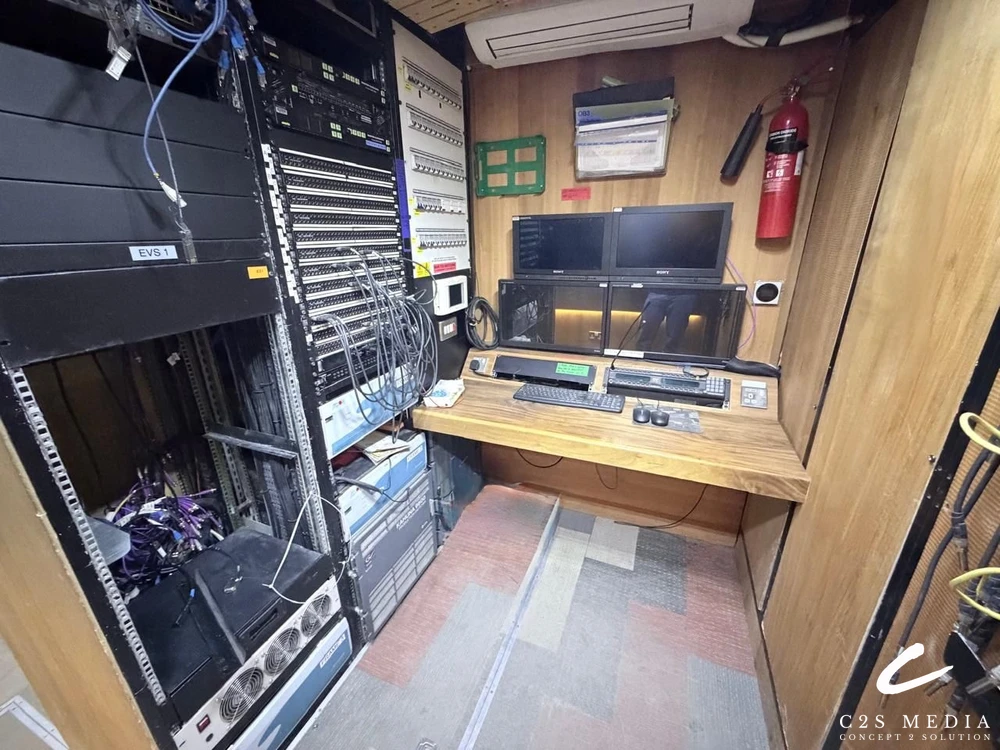

• 5 x Rack positions with Grade 1 CRT monitor & HD scopes
• 2x EVERTZ – 5601MSC – SYNC PLUSE GENERATOR
• EVERTZ – 5601ACO2 – CHANGEOVER
• LEADER RASTERIZER – LV7600 – WAVEFORM MONITOR
• 3x LEADER RASTERIZER – LV7300 – WAVEFORM MONITOR
• EVS – CEREBRUM – CONTROL SYSTEM

FRAME SYNC AND CONVERTER

TIME CODE GENERATOR

HD VIDEO DISTRIBUTION FRAME

ANALOG VIDEO DISTRIBUTION FRAME

• NETGEAR 48 PORT SWITCH – PORT SWITCH

MISCELLANEOUS

• Walk on roof with safety rails

Why choose this used 12 camera OB trailer?

The production area is built around a Grass Valley Kahuna 2ME vision mixer with 48 inputs and an 80-PIP HD monitor wall. Meanwhile, a Calrec Artemis console with Hydra networking handles 5.1 audio, and an RTS Cronus 64-input matrix manages talkback. Engineering relies on an Imagine Platinum 104×176 3G router and Axon Synapse glue frames.

C2S Media supplies, renovates and integrates OB vans and trailers for broadcasters and production companies across Europe, Africa and the Middle East. To compare options, browse our other used OB vehicles or explore our systems integration services. Then contact our team for price, full specifications and availability of this used 12 camera OB trailer. You can also read more about the vision mixer range on the Grass Valley website.
