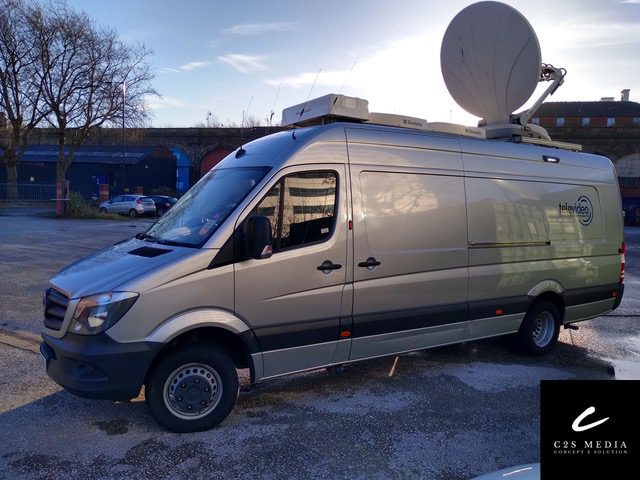

The RF1 4 camera OB van is a compact 7.6-metre production vehicle with a dual-path, fully redundant Ku-band uplink. It combines a 16-input 2 M/E HD-SDI vision mixer, a 6-channel EVS position and two VTR positions. In addition, its 1.5 m Advent antenna and two Xicom 400 W HPAs make it well suited to live news, sport and events from remote locations.

SPECIFICATION

• Vehicle
• Overall length 7.6m, width 2m, height
• 3.3m (dish stowed) 5m (dish operational)
• Capability
• 4 camera production vehicle
• Dual path fully redundant KU band uplink
• Graphics
• 2 x DSK capability, compatible with all current graphics systems
• Production
• 16 input 2M/E HD-SDI vision mixer
• 20 image HD monitor stack on 2 x 37” flatscreen displays
• 6 additional preview monitors

VTR

• 1 x 6 channel EVS positions, 2 x VTR positions
• EVS X-file option
• Final Cut Pro non-linear edit option

RF

• 1.5m Advent Antenna
• 2 x Xicom 400W HPAs
• 4 x Ericsson E8040 MPEG4 Encoders
• HD/SD DVB/DVBS2, QPSK/8PSK,
• 4:2:2/4:2:0, Dolby E, BISS encryption
• 2x Ericsson RX8200 receiver (BISS decryption)
• DVB-S, DVB-S2, QPSK/8PSK
• Freesat and Freeview off-air receivers
• Sound
• Yamaha 01V96 16-channel digital sound desk – fully configurable inputs and outputs
• TSL DolbyE embedded audio monitor unit Telex Zeus 24 Port Digital Communications Matrix
• 2 x TBU with GSM cellphone G722 and Systembase ISDN option
• Paradise satellite comms option
• 2 x duplex radio talkback base stations
• Engineering
• Racks positions with grade 1 monitor
• 40 x 40 HD/SD multiformat matrix
• 2 x HD synchronisers
• 2 x HD cross converters
• DolbyE encode/decode capability
• Fibre capability for long-range HD video feeds RF camera option
• Miscellaneous
• 10kVA on-board generator
• 32A single phase power required
• Full 10 minute UPS backup

What made the RF1 4 camera OB van versatile

Four Ericsson E8040 MPEG-4 encoders and two RX8200 receivers support HD/SD DVB-S2 contribution with BISS encryption. Meanwhile, a Yamaha 01V96 digital desk handles sound, and a 40×40 HD/SD matrix with synchronisers and cross-converters covers engineering. Finally, a 10 kVA on-board generator and a 10-minute UPS keep the van independent on location.

This unit has now been sold. However, C2S Media regularly sources, renovates and integrates OB vehicles for broadcasters across Europe, Africa and the Middle East. Browse our used OB vehicles currently available, discover our new OB vehicles, or contact our team to find an alternative to this RF1 4 camera OB van. For replay systems, visit EVS.
