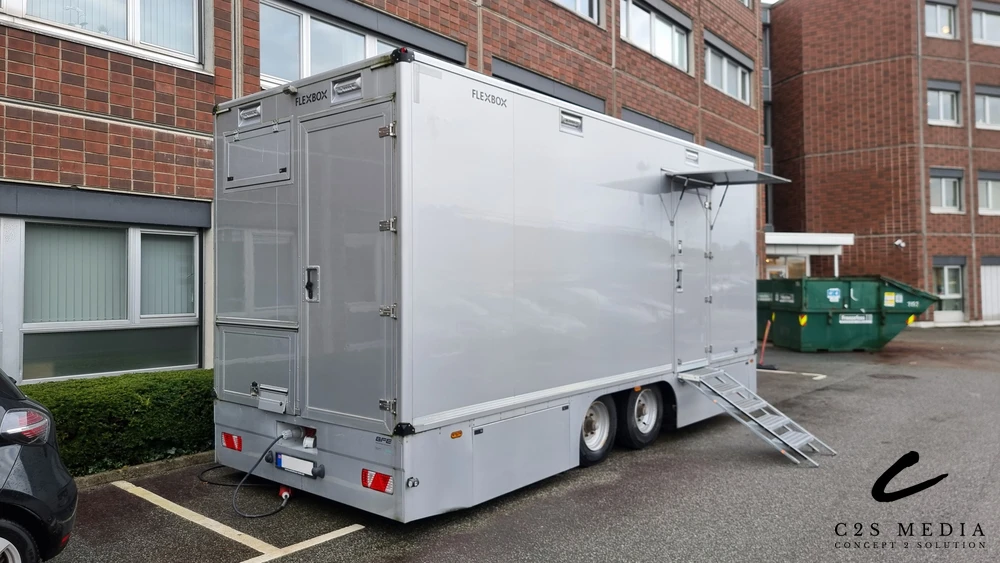

This rack ready OB trailer is a compact 12G production unit, first registered in September 2024 and pre-wired for 12 camera chains. It comes rack ready with power, air-conditioning and pre-wired 12G-SDI and 12G-BNC cabling to every working position, monitor and speaker. In total, it offers 10 working positions plus a tailboard, in an 8.6-metre trailer weighing approximately 6 tonnes without equipment.

Call for Price

OB TRAILER – “Rack ready” 12G WIRED BUILT AS 12 CAMERA CHAINS OB TRAILER

24 Camera Ready HD Single Expender OB Trailer – Fully Refurbished

The trailer was built by Humbaur and BFE in 2020 in Germany

• First registration: 09/2024
• 2 axle Trailer
• Very solid build

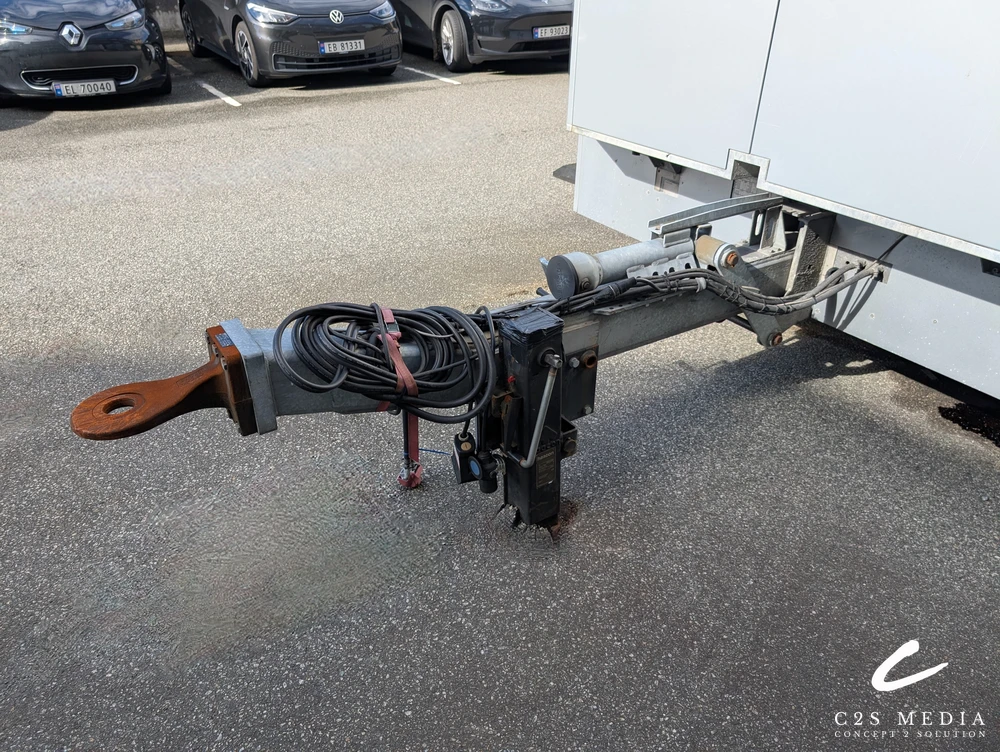

• Detachable VBG75 mm standard hitch – adjustable in height

• The Trailer is prepared for 12 camera channels 10 working positions
• Compact production design Electrical heating system Daikin Air conditioning

Video wiring:

• 12G-SDI and 12G-BNC on all video cables – only long runs
• Not included in the OB Trailer – on request:

Video and Audio Mixers, Intercom System, VSM control system, Camera chains, Lenses, Tripods, EVS systems, Recording machines, camera cables etc.

Short description of the OB Trailer – prepared for up to 10 camera chains:

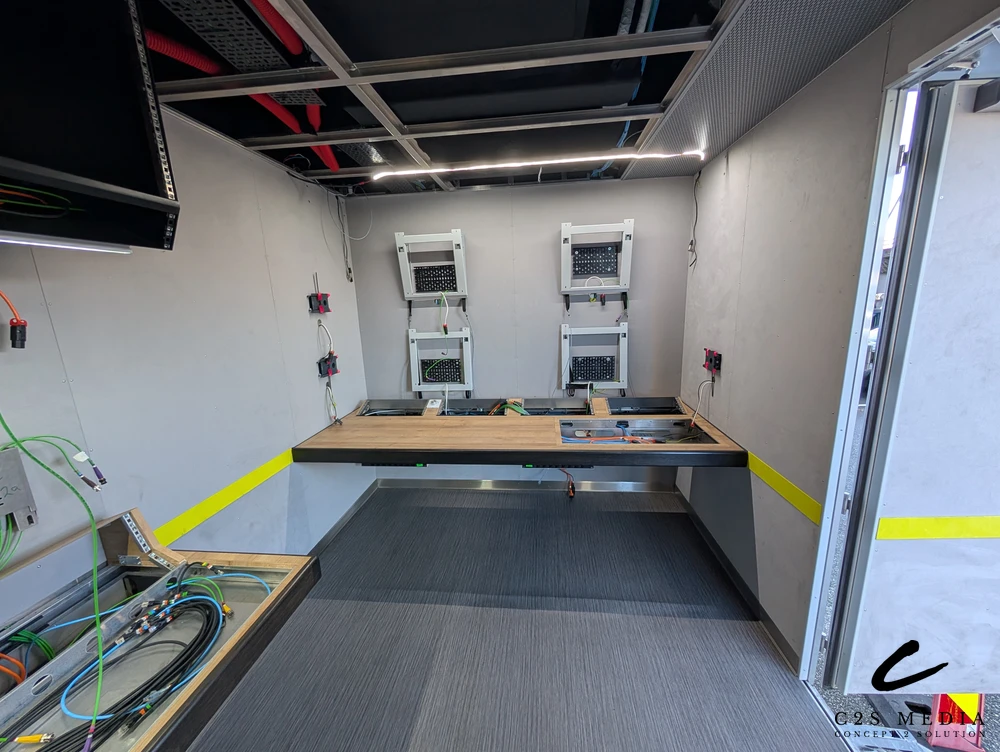

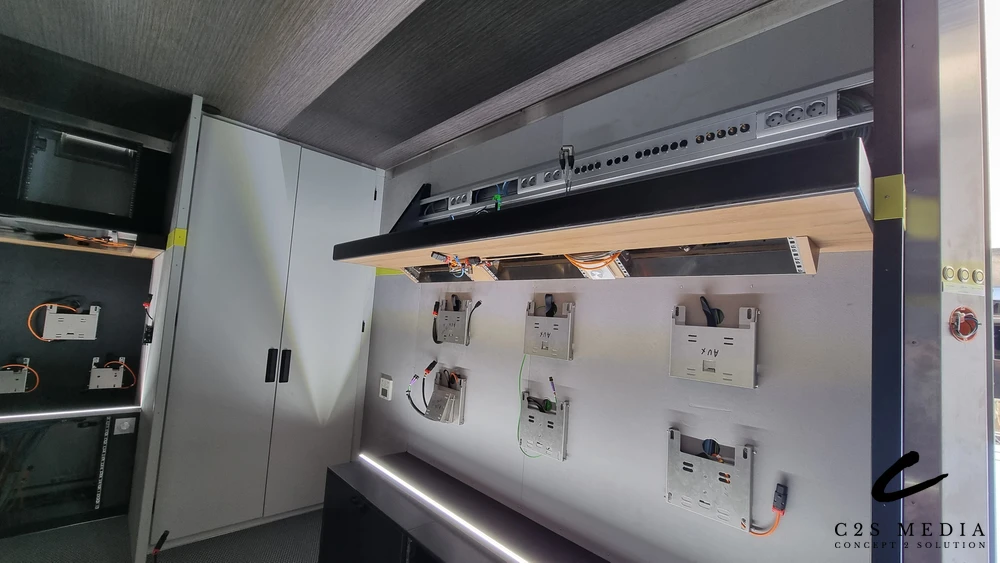

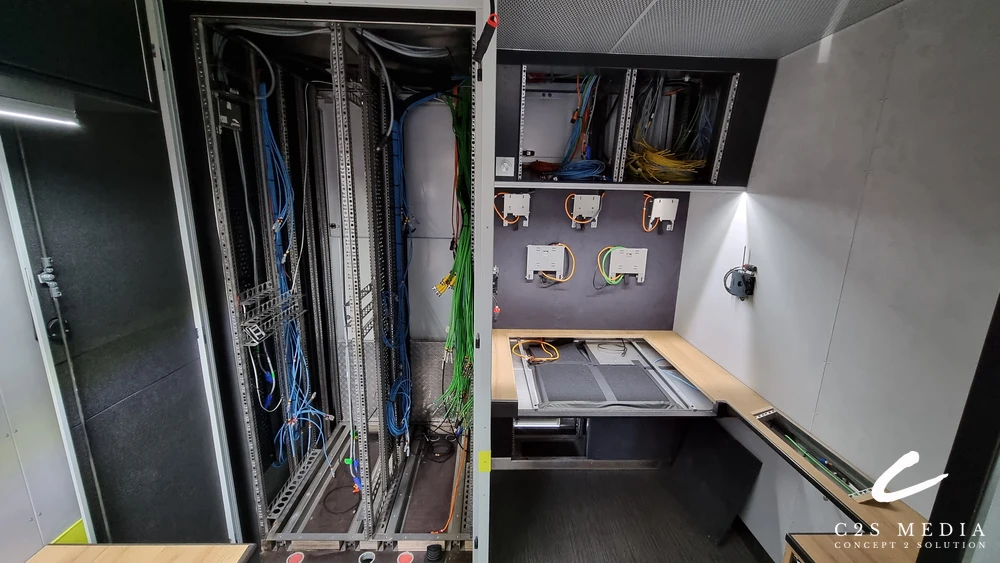

Compact production design used rack ready OB Trailer – prepared for 12 camera chains. OB Trailer has 10 working positions in total. This trailer is rack ready including power and aircon as well as pre wired cables to all working positions, monitors and speakers in 12G-SDI and 12G-BNC.

Technical specifications of the OB Trailer:

OB Trailer

Rack ready OB Trailer

MOT certification of the Trailer valid until

June 2026

First registration of the Trailer

September 2024

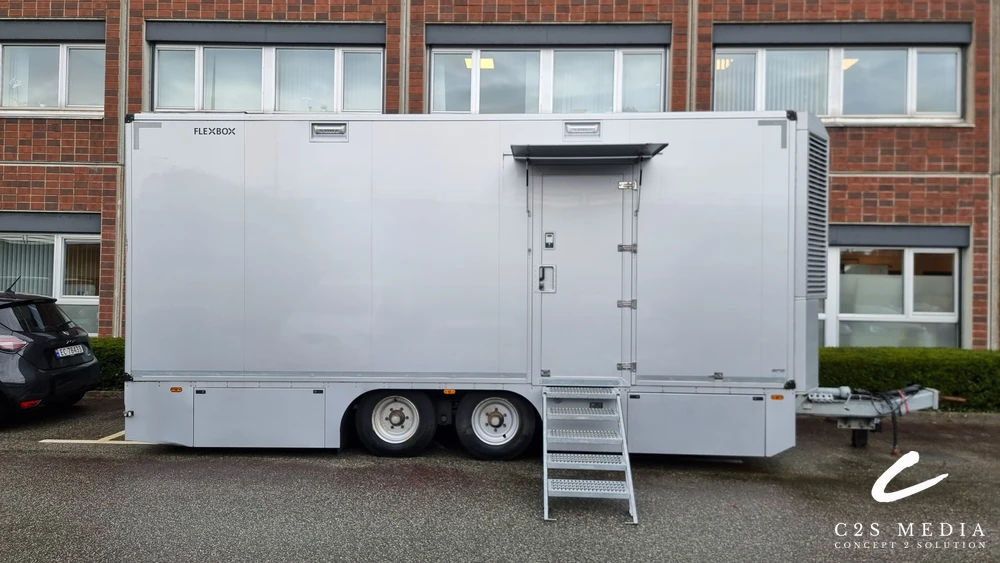

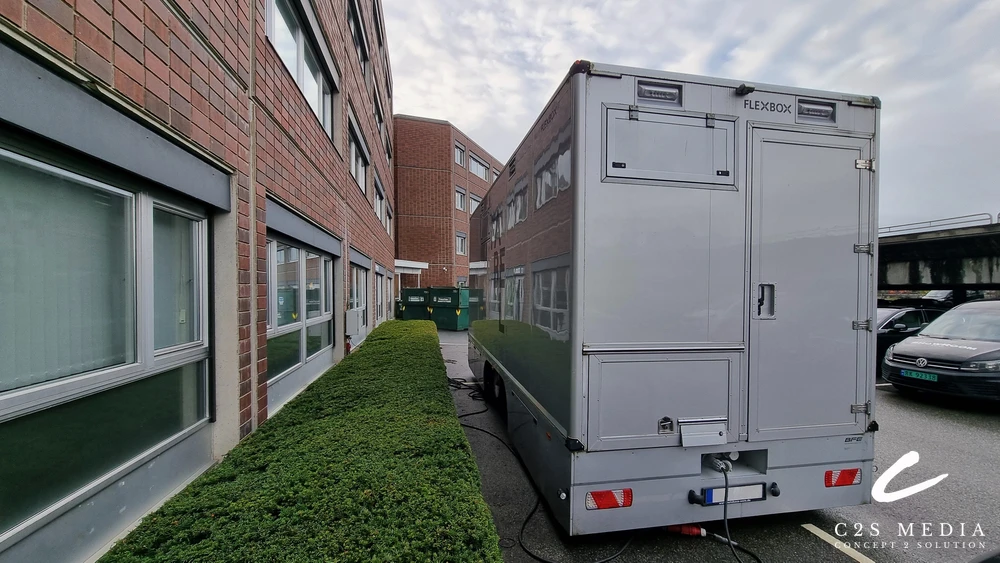

Measurements Trailer

• Length: 8,60 m
• Width: 2,55 m
• Height: 3.50 m

Weight of trailer without mobile equipment

approx. 6 Tons

Maximum weight

10.500 kg

Possible weight on the axles

4.750 kg on each axle

Working positions

In total 10 working positions + tailboard.

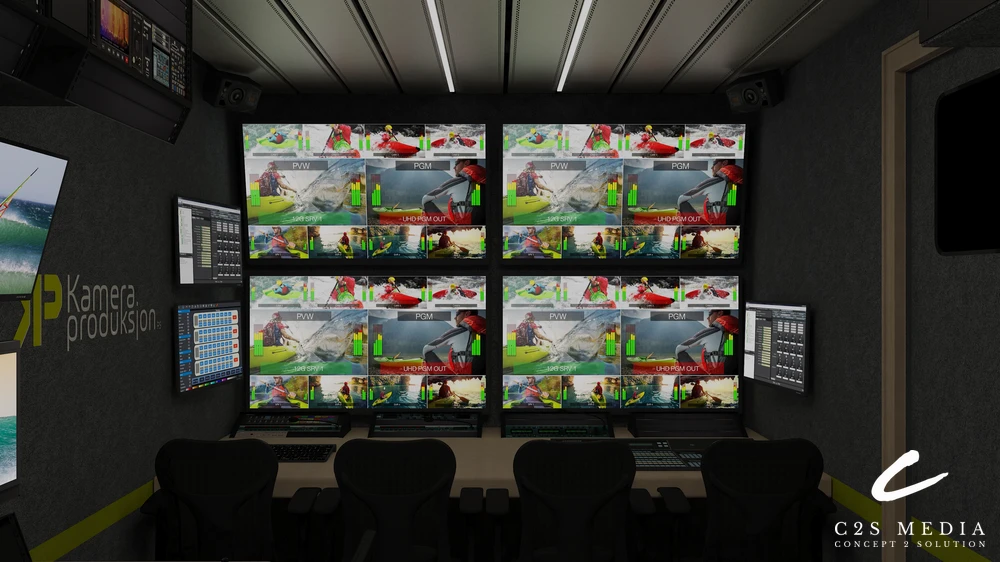

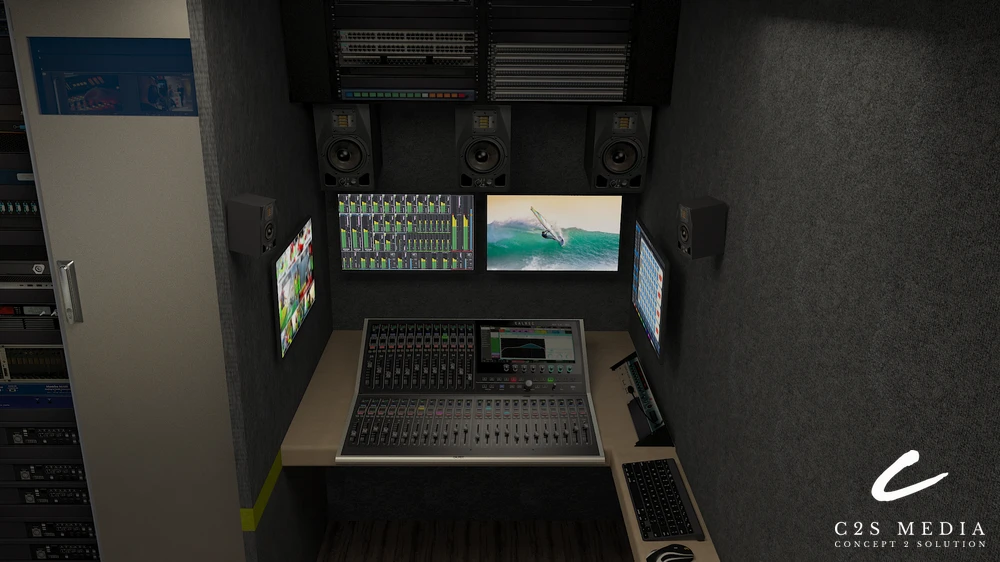

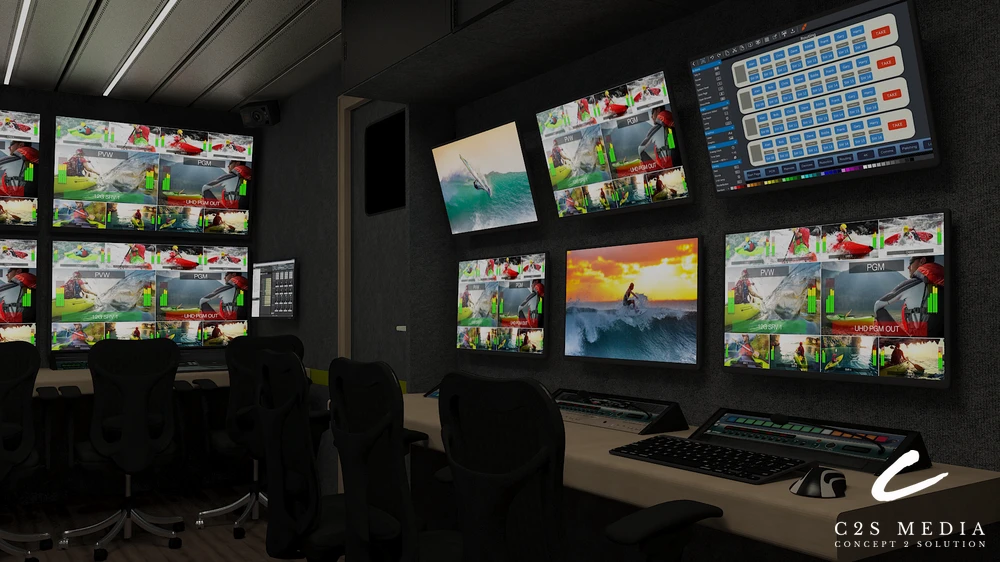

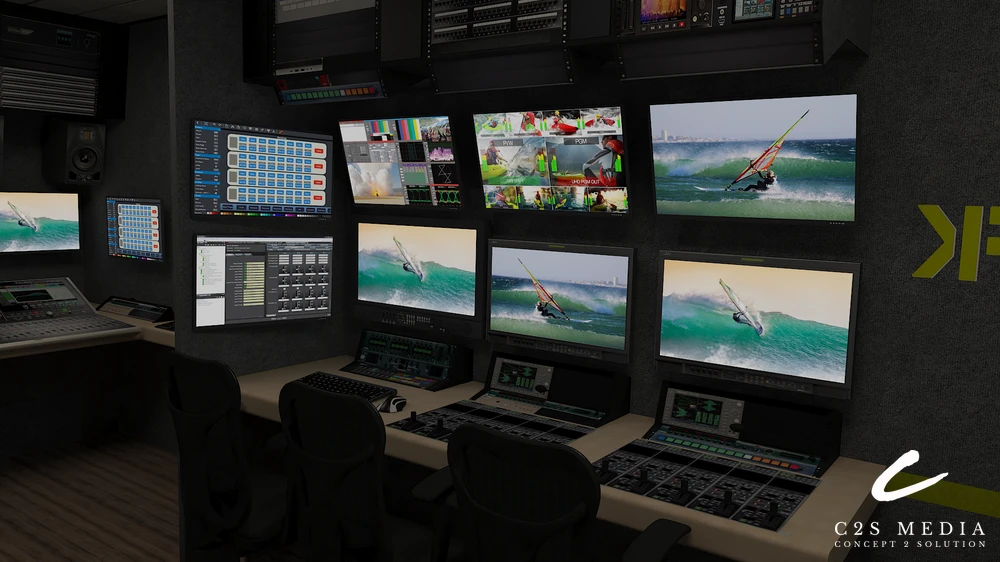

3 working positions on the left side – vision control, 3 working positions on the right side – production gallery (slow-motion), 3 working positions in the front – production gallery and 1 working position in the back – audio gallery.

Power system

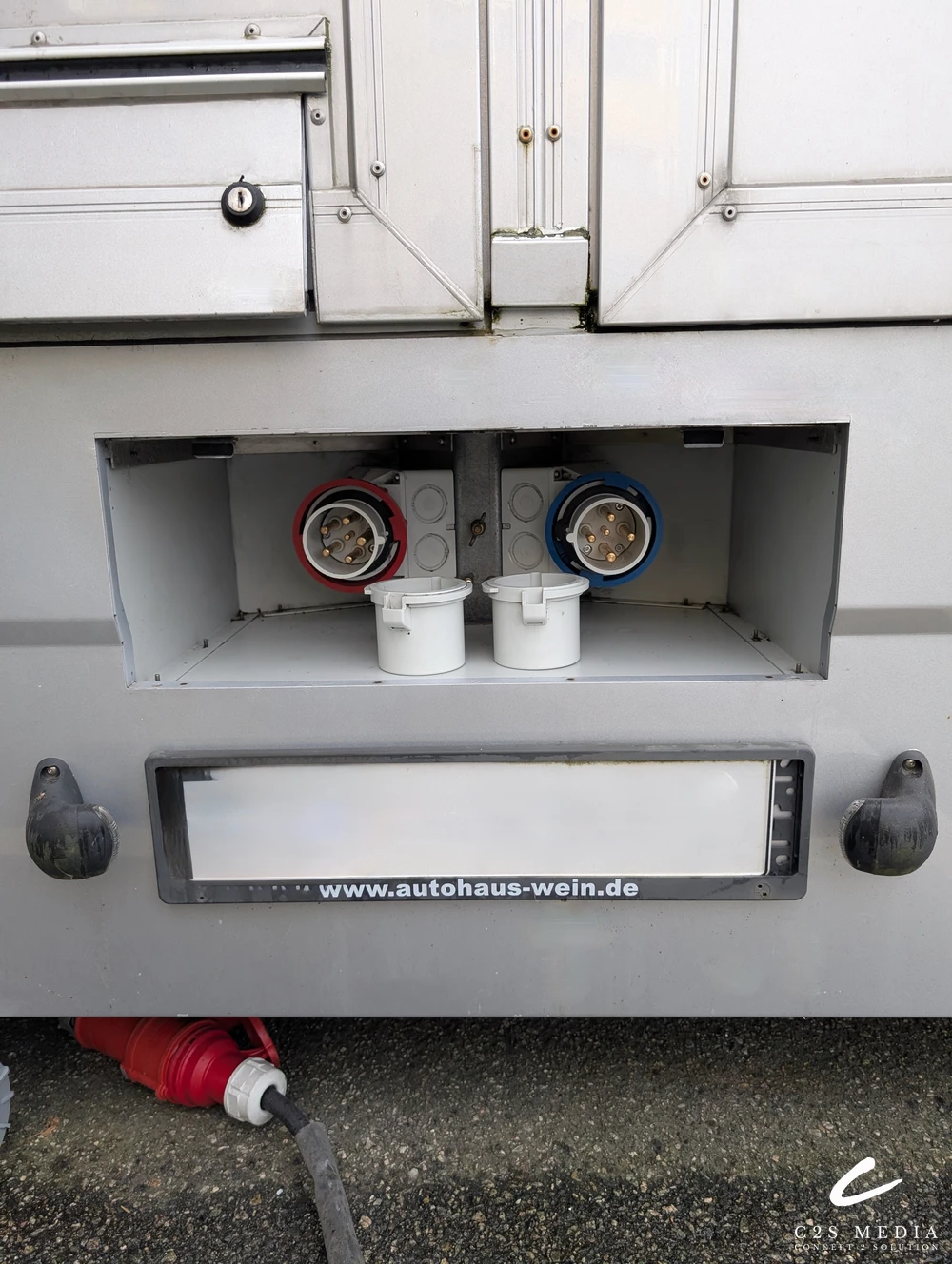

• 63A 400V or 230V 3-phase (both, you may choose) Compliant with IEC Power regulations
• 25m 400V 32A power cable

Hydraulic stamps

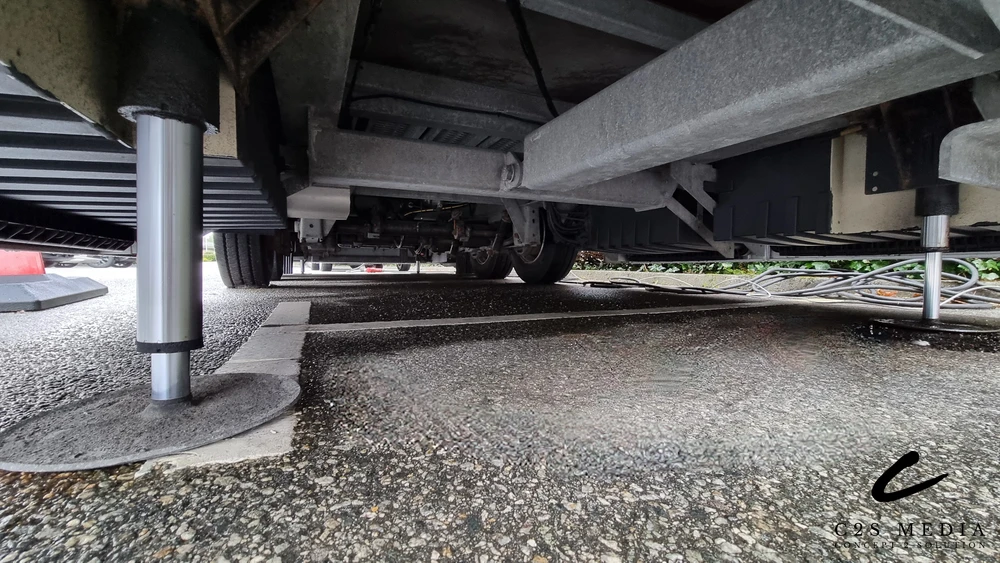

Hydraulic stamps on front and rear side

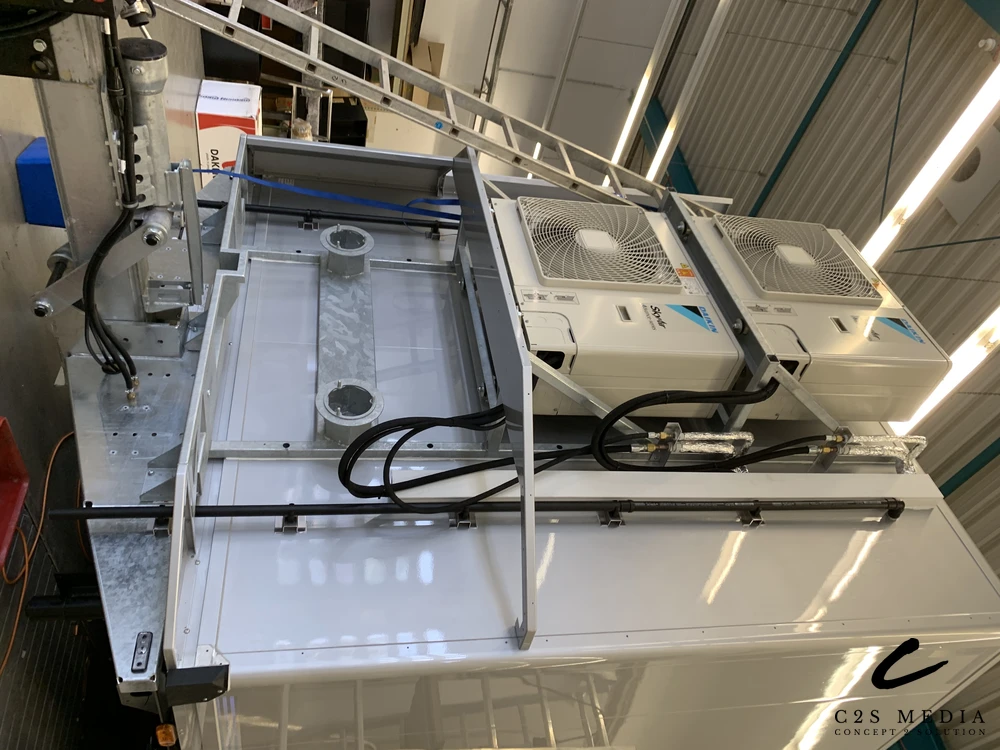

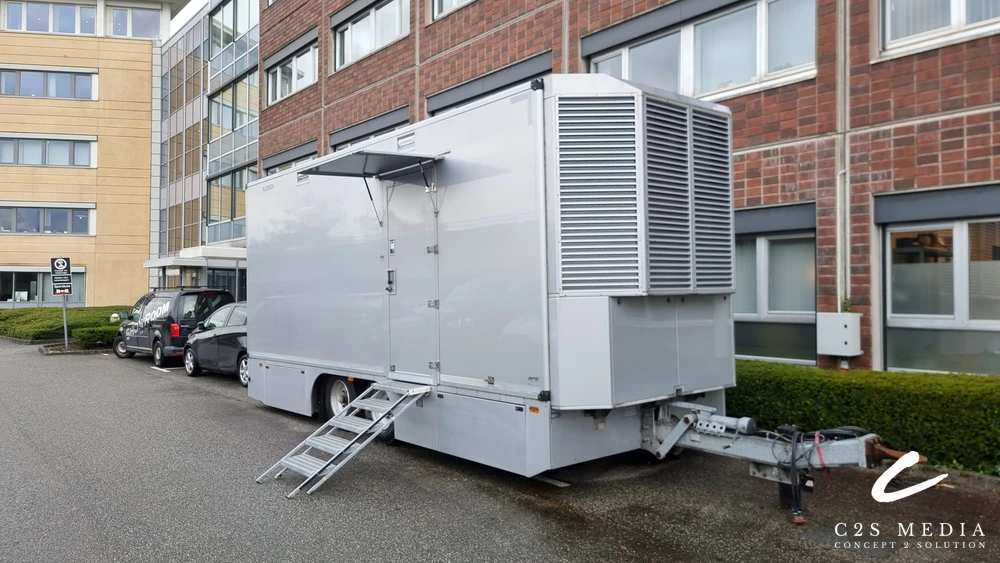

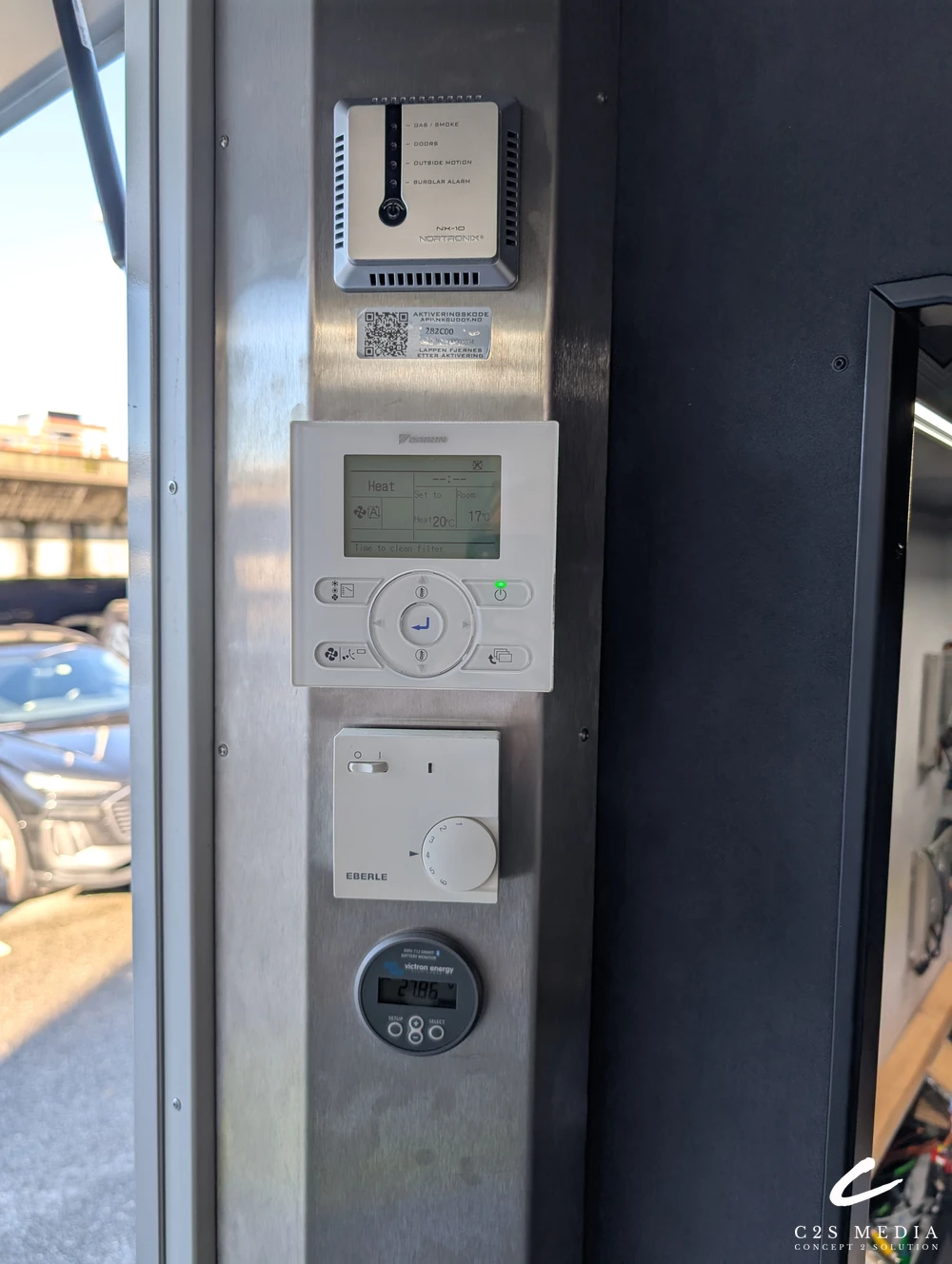

Air condition System – Daikin

2x Daikin Aircon

Sandwich frame construction of the Trailer

Aluminium

Walkable roof and possibility to locate a camera on the roof

No

Room concept OB Trailer

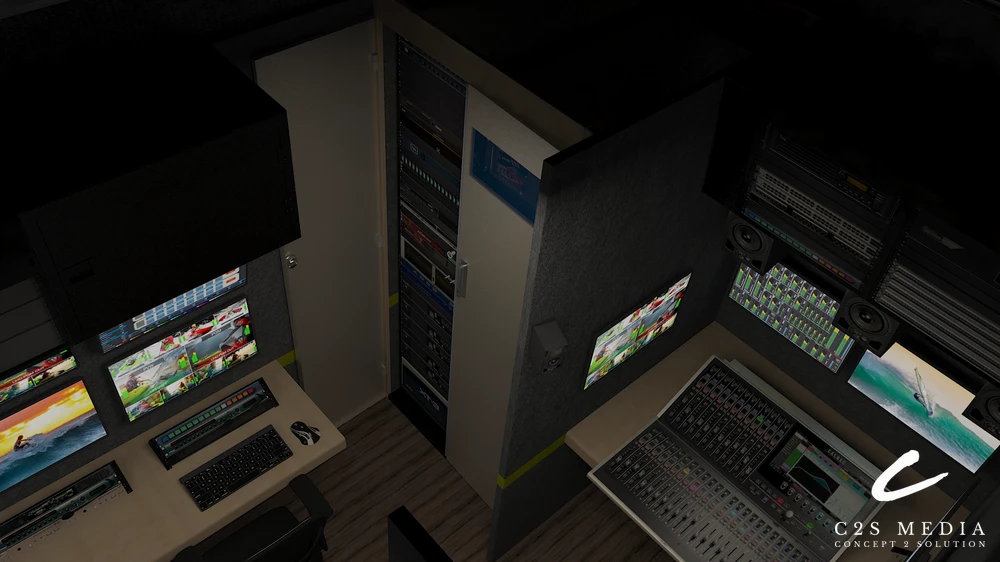

Compact room design with production gallery, vision control and audio gallery.

Video cabling:

12G-SDI and 12G-BNC – only long-runs between different positions internally, not internal cables for specific racks

Intercom System:

Riedel Artist 64 x 64 with 11x RCP panels was installed – intercom system not included within the OB Trailer

Not included – available on request:

• Video Mixer Video Matrix Audio Mixer Intercom system Camera chains Camera cables Lenses
• Tripods EVS servers
• Recording machines Camera cables
• Audio equipment (microphones, audio cables etc.)

Why a rack ready OB trailer?

Because the infrastructure is already in place, a buyer can fit their own vision mixer, router, cameras and EVS systems without rewiring the vehicle. In addition, its 8.6-metre length, 2.55-metre width and 10,500 kg maximum weight make it easy to tow and position on site. As a result, it offers a fast and cost-effective route to a modern 12G OB.

This unit has now been sold. However, C2S Media regularly sources, renovates and integrates OB vehicles for broadcasters across Europe, Africa and the Middle East. Browse our used OB vehicles currently available, discover our new OB vehicles, or contact our team to find an alternative to this rack ready OB trailer. For replay systems, visit EVS.
