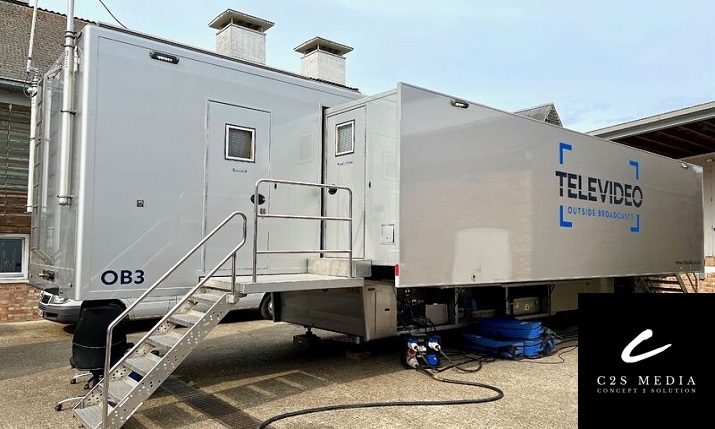

The Televideo OB3 is a 14-metre HD outside broadcast truck with a single expanding side, launched in April 2023. It caters for up to 16 Sony HDC-3500 camera channels, as well as multiple RF and specialist cameras. Thanks to its medium-sized footprint, it suits ad hoc entertainment and sports events.

#SOLD#

Televideo OB3 is the latest addition to Televideo’s fleet being launched at the end of April 2023. Equipped with a Sony MVS8000G vision mixer and Probel Sirius matrix, the unit provides a range of powerful facilities for production teams within a medium sized footprint with just a single expanding side. The truck can cater for up to 16 Sony HDC-3500 camera channels and multiple RF and specialist cameras. The spacious double row VT area is ideal to create two separate working areas for EVS operators along with an on board Edit Suite or media management area. OB3 is ideal for ad hoc Entertainment and Sports events work with a top spec Lawo mc²56 MKII 56 fader sound desk, matched with an excellent sound mixing environment compared to most modern units.

SPECIFICATION

• Vehicle
• Power: 1x 125Amp 3 Phase supply
• Length: 14m
• Width: 4.5m (Expanded, 2.8m closed)
• Height: 4m
• Production Area
• Two rows of desks for 9 production staff
• 66x 10” 3G Monitor production stack
• 3x 22” Ultra low delay HDSDI PVW/PGM monitors
• Twelve assignable multiviewers
• Cameras
• Up to 16 Sony HDC-3500 HD camera channels
• Multiple RF and special cameras available
• Audio
• Lawo mc²66 MKII 56 fader sound desk
• 16×16 Audio stage boxes
• DirectOut 16 port MADI matrix
• Riedel Artist talkback system
• Dolby 5.1 monitoring
• Vision
• Sony MVS8000G vision mixer
• Probel Sirius 600 HD video matrix (192 x 256)
• VT & Editing
• Two rows of desks for 7 VT staff Four EVS machines
• X-File 3
• Avid or Premiere edit facilities available

Inside the Televideo OB3

A Sony MVS-8000G vision mixer and a Probel Sirius 600 HD matrix (192 x 256) form the core of the production chain. In addition, two rows of desks seat 9 production staff in front of a 66-monitor stack, while a separate double-row VT area hosts 7 operators and four EVS machines. For sound, a 56-fader Lawo desk with Riedel Artist talkback and Dolby 5.1 monitoring provides an excellent mixing environment.

This unit has now been sold. However, C2S Media regularly sources, renovates and integrates OB vehicles for broadcasters across Europe, Africa and the Middle East. Browse our used OB vehicles currently available, discover our new OB vehicles, or contact our team to find an alternative to this Televideo OB3. For more on the sound desk, visit Lawo.
