The SuperSport OB2 is a 14-camera HD double expander OB truck that C2S supplied, designed, coach-built and integrated for SuperSport in Nigeria. Commissioned in 2016, it features a flexible open-plan layout for small and large production teams. In addition, it can operate with only one side expanded when space is restricted, and the project included a support vehicle with an on-board edit suite.

SuperSport – OB2 14-Camera HD Double Expander OB Truck, Nigeria

THE BRIEF

SuperSport commissioned C2S to supply, design, coach-build and integrate this 14-camera HD project. Cutting-edge technology was employed to deliver a truly versatile, modern OB, offering top-class facilities for scalable events coverage. The project also included a support vehicle with on-board edit suite.

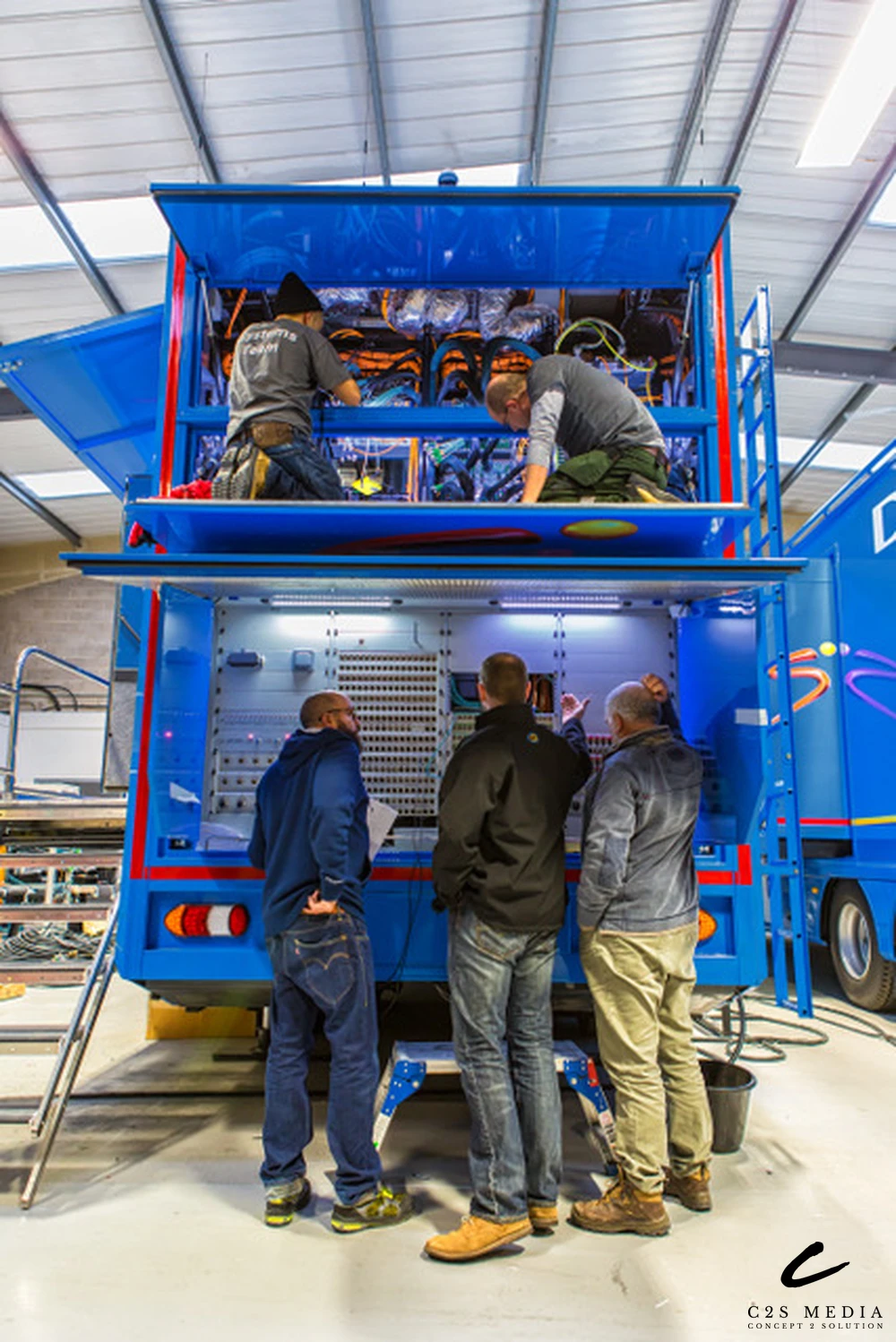

The OB truck boasts a flexible open-plan layout, offering optimal functionality for small and large production teams alike. Easy access to the racks allows the truck to be rigged per job. The vehicle is designed to be able to operate with only one side expanded if space is restricted.

SPECIFICATION

KEY EQUIPMENT

• Sony MVS-7000X 32 Inputs 3 ME’s Vision Mixer
• 13 x Sony HSC-300 HD Camera Channels
• Sony HDC-3300R Super Slomo Camera Channel
• 2 x Q-Ball Cameras
• 2 x Canon HJ14x4.3 BIASE Lens with Full Servo
• 6 x Canon HJ24ex7.5 BIASE Lens with Full Servo
• 2 x Canon HJ40x10 BIASE Lens with Full Servo
• 4 x Canon XJ95x8.6B IE-D Lens with Full Servo
• 2 x Sachtler OB 2000 Tripods with Video 60 Head
• 4 x Sachtler OB 2000 Tripods with Video 90 Head
• 8 x Sachtler Video 25 Tripods System
• 3x EVS XT3 8 Channels HD Servers With Super Slomo Server
• 2 x Sony PDW HD1600 Recorders
• 2 x AJA Disk Recorders
• USB Recorder (8 USB Ports)
• SAM 830 16RU 288×288 Video/Audio Router with XY Panels
• Snell IQ modular interfacing
• Telex Cronus 32×32 Intercom Matrix with Panels
• 1 x Yamaha CL5 -32 Digital Audio Mixing Console 32 Inputs/PT 8 Output
• 2 x Glensound units
• Snell IQ modular interfacing including Dolby E on-card multiplexing

COACH WORK

• Mercedes Axor 2529LLnr chassis

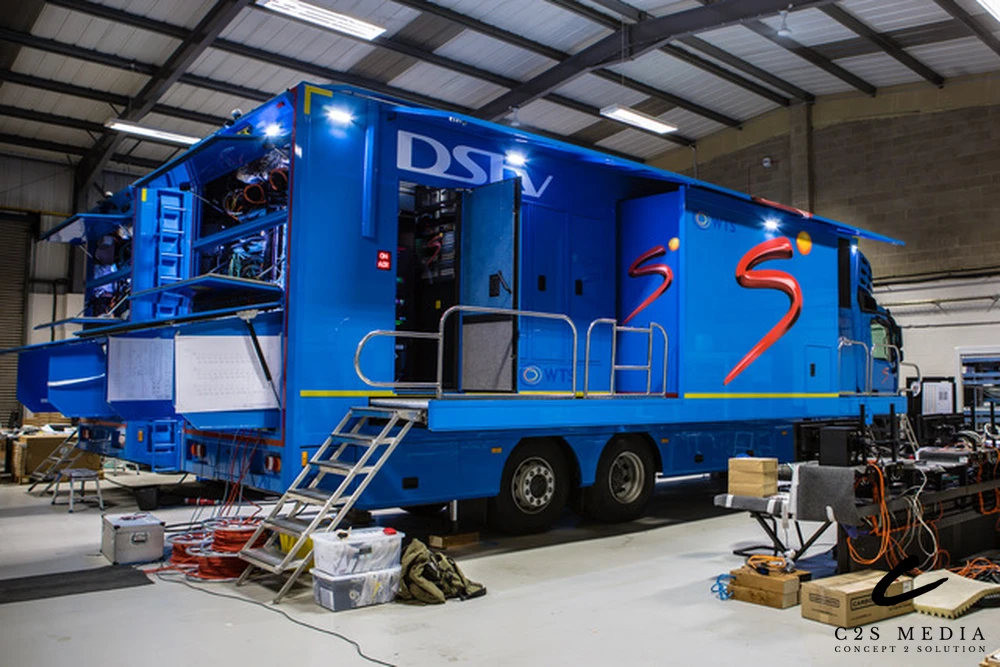

• Double-expanding body
• Outer truck body: aluminium-skinned composite frame for acoustic and thermal protection
• Locker storage and access doors

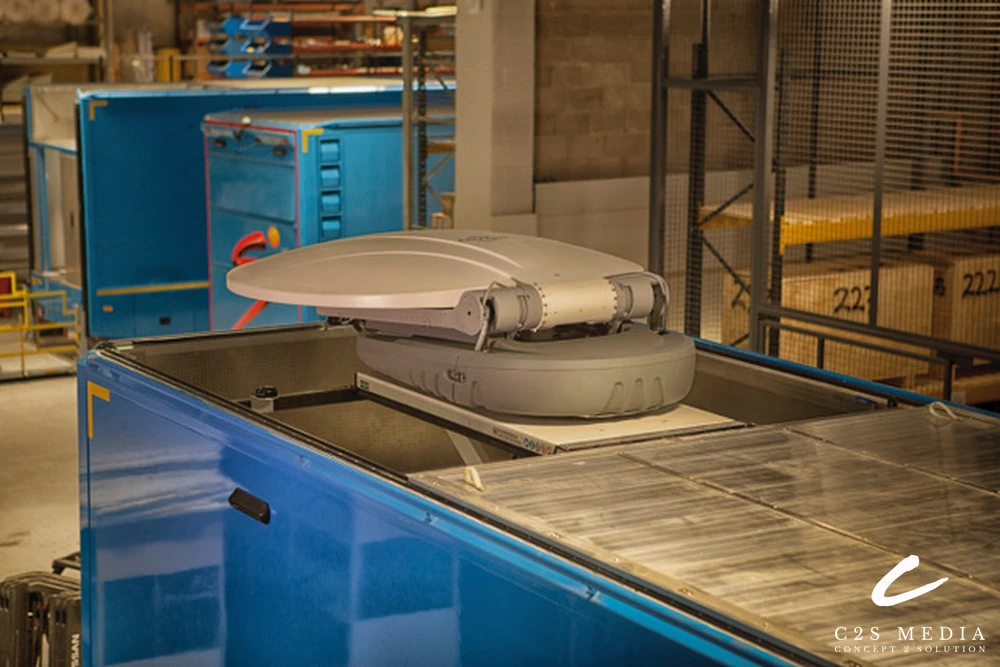

• Waterproof Air-conditioning compartment with louvres
• 63 amp three-phase input
• Clean safe power from rack-mounted central distribution unit
• LED interior lighting
• Automatic cable reels on-board
• Electrical external awnings to shade main doors
• Hydraulic jacks with digital level indication and control

OB van was Commissioned in 2016

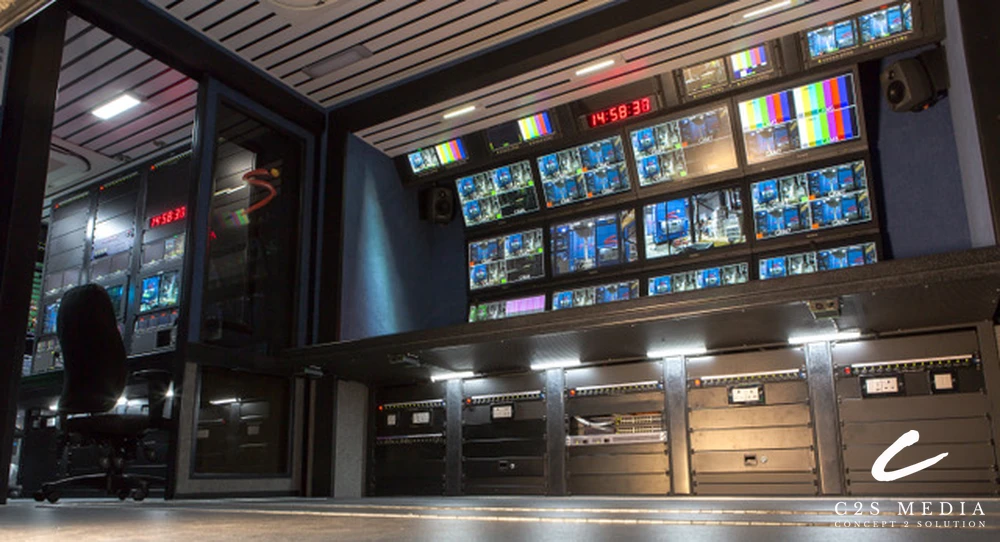

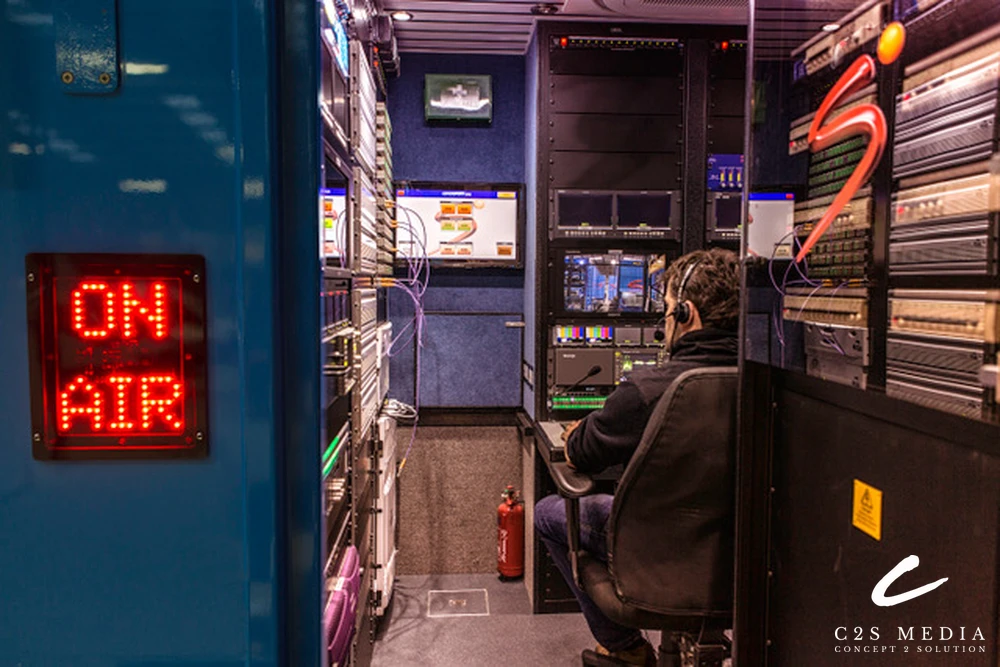

Inside the SuperSport OB2

At its core, a Sony MVS-7000X vision mixer with 32 inputs and 3 M/Es handles 13 Sony HSC-300 HD camera channels, a Sony HDC-3300R super slow-motion channel and 2 Q-Ball cameras. Built on a Mercedes Axor 2529 chassis, the double-expanding body uses an aluminium-skinned composite frame for acoustic and thermal protection. Moreover, hydraulic jacks with digital level control and automatic cable reels make rigging quick on every job.
